TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A131L 0002 1A245E

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-12080iAE101..NAP..3FC199209-199508

main04351-12090iAE102..NAP..4FC199209-199708

main04351-12110iAE101..NAP..3FC199508-199708

04352AKIT, TRANSAXLE OVERHAUL(ATM)

main04352-12130iAE102..NAP..4FC..USA199209-199708

main04352-12141iAE101..NAP..3FC199603-199708

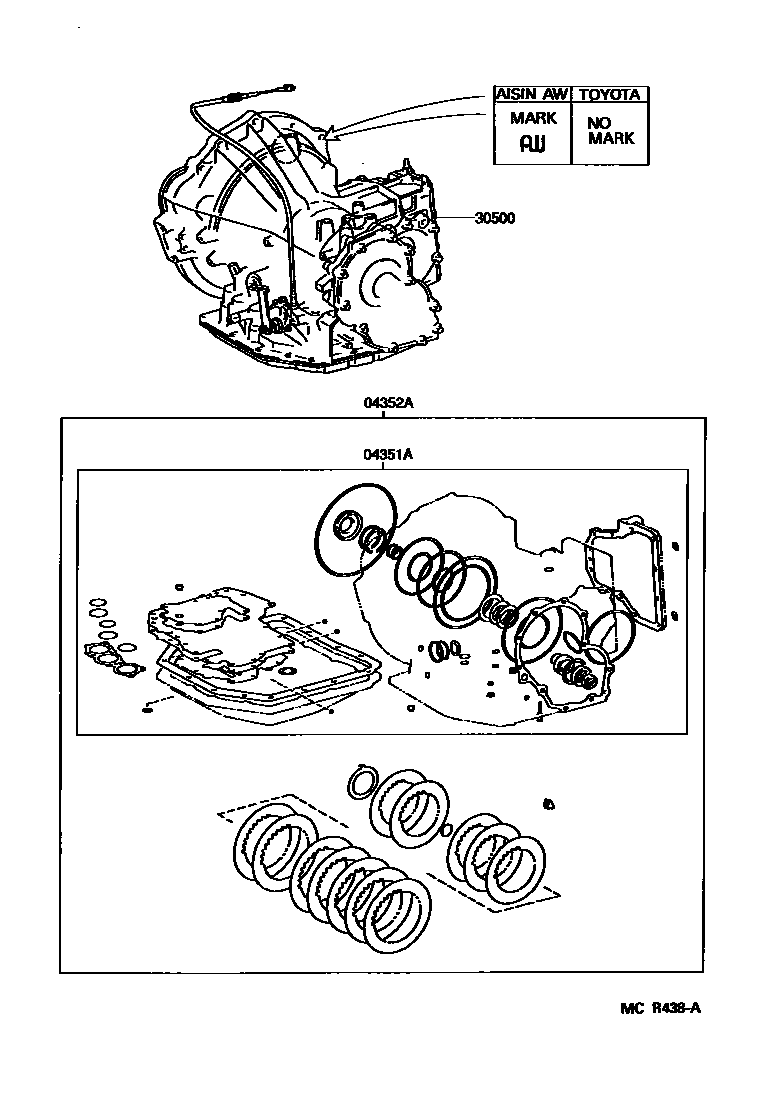

AISIN AW:REFER TO ILLUSTRATION

main04352-12150iAE101..NAP..3FC199209-199307

main04352-12151iAE101..NAP..3FC199307-199508

main04352-12160iAE101..NAP..3FC199508-199708

TOYOTA:REFER TO ILLUSTRATION

30500TRANSAXLE ASSY, AUTOMATIC

main30500-12810iAE102..NAP..4FC199209-199408

main30500-12811iAE102..NAP..4FC199408-199708

main30500-12820iAE101..NAP..3FC199209-199508

main30500-1A070iAE101..NAP..3FC199603-199708

AISIN AW:REFER TO ILLUSTRATION

main30500-1A140iAE101..NAP..3FC..D..USA199608-199708

MIDDLE EAST SPEC

main30500-1A270iAE101..NAP..3FC199508-199708

TOYOTA:REFER TO ILLUSTRATION

3 parts on this diagram · 2 diagrams in section
