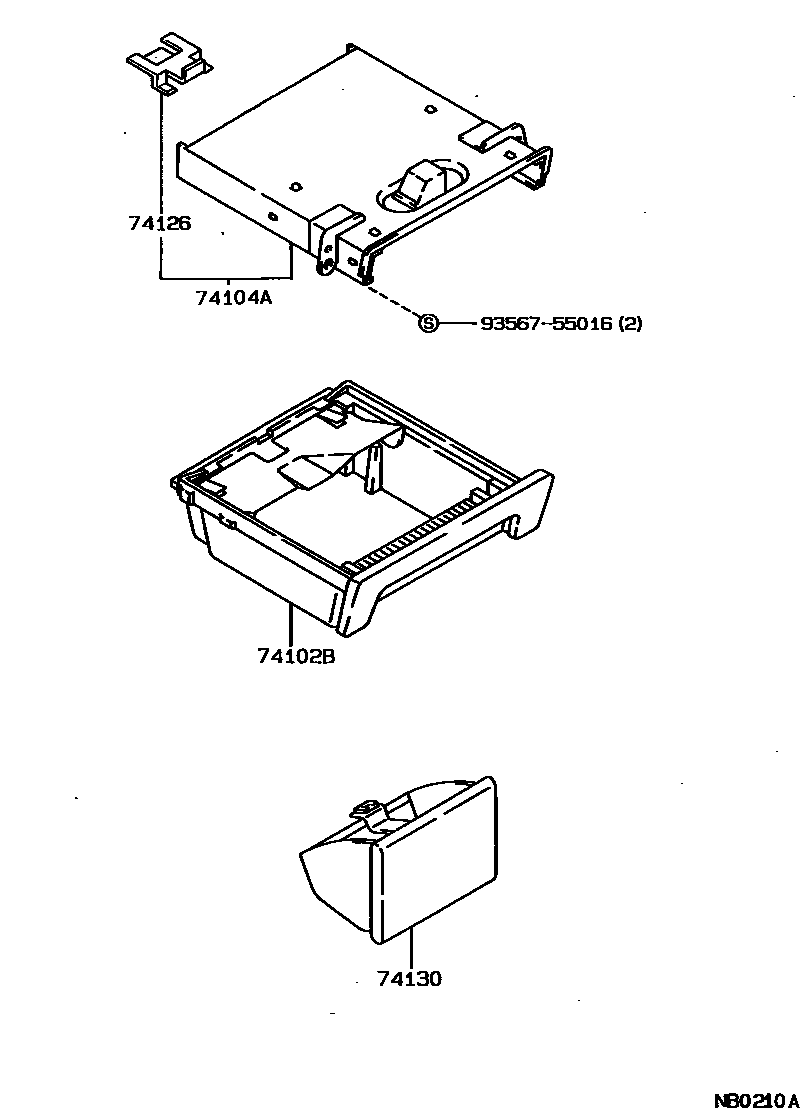

ASH RECEPTACLE
74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE
SHADOW GRAY,TRIM1#
DARK SMOKE GRAY,TRIM1#
MAROON,TRIM3#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
DARK BLUE,TRIM8#
74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74126SUPPORT, FRONT ASH RECEPTACLE RET, NO.3
74130RECEPTACLE ASSY, REAR ASH
SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#,*86
DARK SMOKE GRAY,TRIM1#; DARK SMOKE GRAY,TRIM1#,*86
MAROON,TRIM3#; MAROON,TRIM3#,*86
DARK BEIGE,TRIM4#
BROWN,TRIM4#; BROWN,TRIM4#,*86
DARK BLUE,TRIM8#; DARK BLUE,TRIM8#,*86
DARK SMOKE GRAY,TRIM1#,*86 & *87
SHADOW GRAY,TRIM1#,*86 & *87
MAROON,TRIM3#,*86 & *87
BROWN,TRIM4#,*86 & *87
DARK BEIGE,TRIM4#,*86 & *87
DARK BLUE,TRIM8#,*86 & *87
9356755016
main93567-55016
5 parts on this diagram · 1 diagram in section
