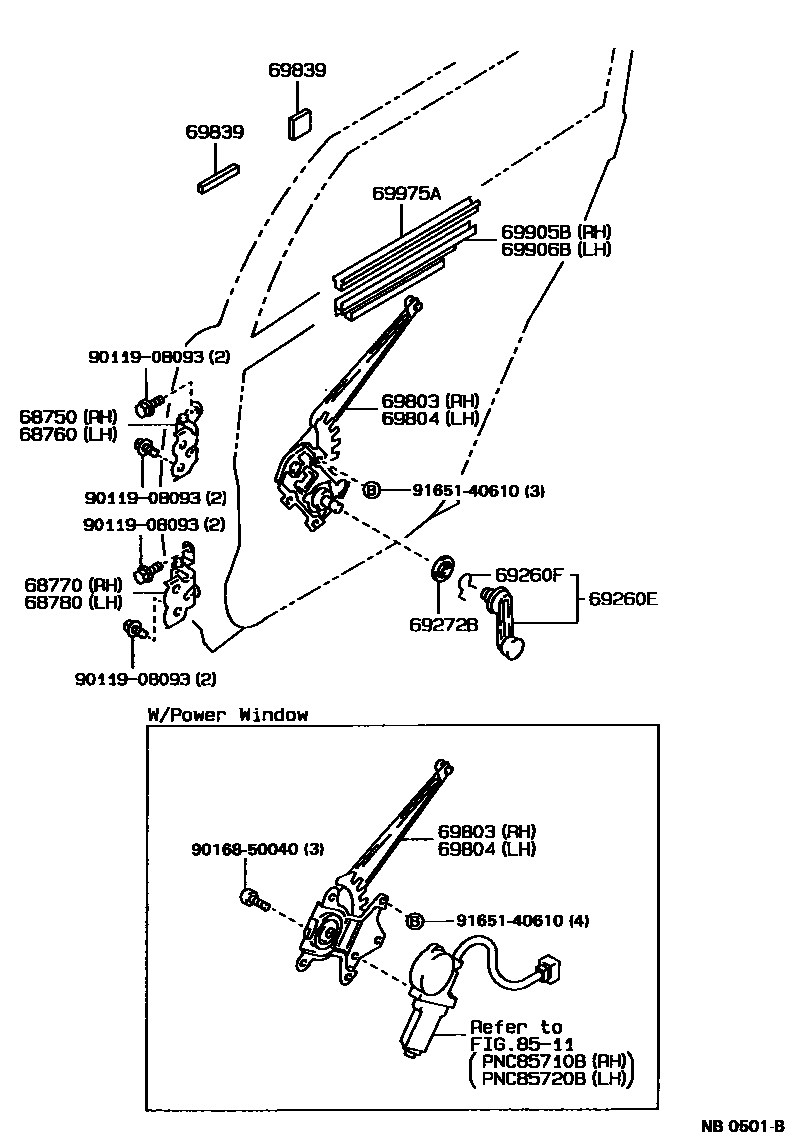

REAR DOOR WINDOW REGULATOR & HINGE
68750HINGE ASSY, REAR DOOR, UPPER RH
68760HINGE ASSY, REAR DOOR, UPPER LH
68770HINGE ASSY, REAR DOOR, LOWER RH
68780HINGE ASSY, REAR DOOR, LOWER LH
69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR
SHADOW GRAY,TRIM1#
DARK SMOKE GRAY,TRIM1#
MAROON,MAROON,TRIM3#
DARK BEIGE,DARK BEIGE,TRIM4#
BROWN,TRIM4#
DARK BLUE,TRIM8#
DARK SMOKE GRAY,TRIM1#
MAROON,TRIM3#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
DARK BLUE,TRIM8#
69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE
DX PACKAGE
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
W(POWER WINDOW)
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
W(POWER WINDOW)
69839PAD, REAR DOOR WINDOW REGULATOR
7X65
25X25
69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69975AFILLER, REAR DOOR GLASS CHANNEL
8511DOOR MOTOR & DOOR SOLENOID
9011908093
main90119-08093
9016850040
main90168-50040
9165140610
main91651-40610
17 parts on this diagram · 1 diagram in section
