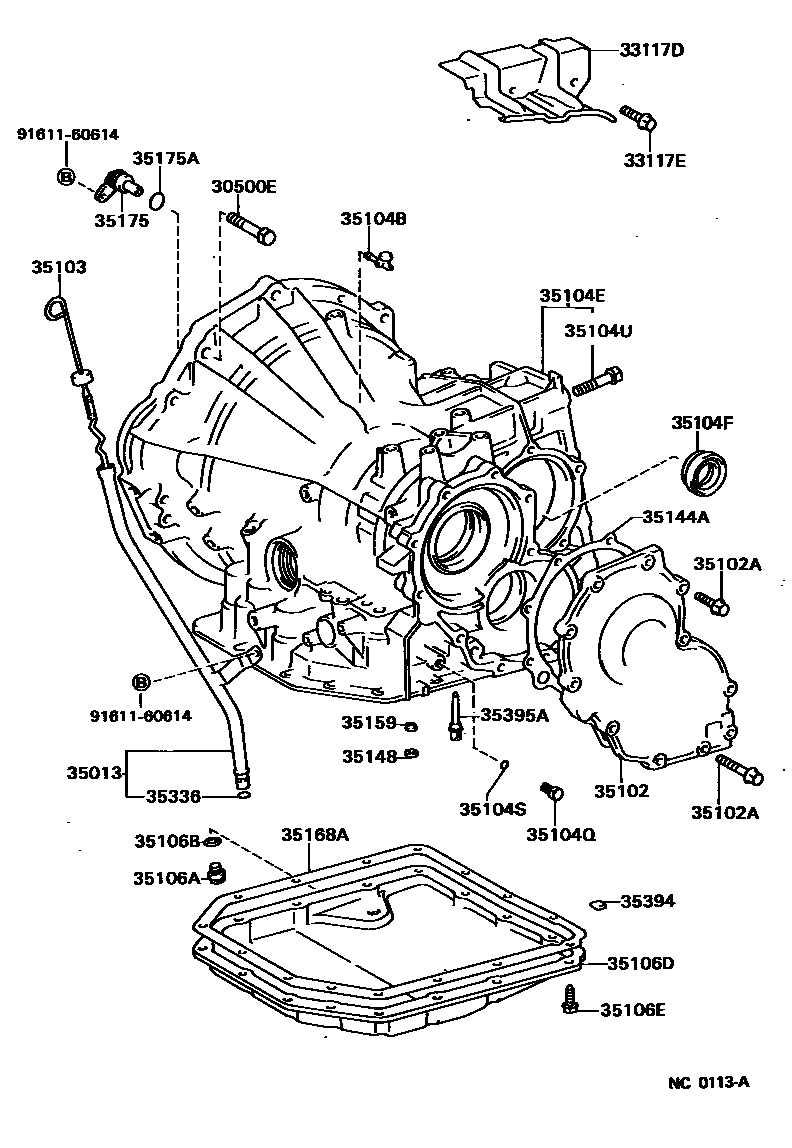

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A131L 0002 1A240L,A241H

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10077iAE92..ATM198809-199209

*10-1.25PX43-26

main90119-12168iAE92..ATM198809-199209

*12-1.25PX55-30

main91611-61025iAE92..ATM198809-199209

*10-1.25PX25-25

main91619-61245×2iAE92..ATM198809-199209

*12-1.25PX45-30

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-01060iAE92..4FC198909-199209

*86

main33117-01070iAE92..3FC198909-199209

*86

main33117-12030iAE92..4FC..CBR; AE92..4FC..EFI198809-199209

*86 & *87

main33117-12040iAE92..3FC..CBR; AE92..3FC..EFI198809-199209

*86 & *87

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040×2iAE92..ATM198809-199209

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-12220iAE92..3FC198809-198909

main35013-12230iAE92..4FC198809-199209

main35013-12270iAE92..3FC198909-199209

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-10011iAE92..3FC198809-199209

main35102-20050iAE92..4FC198809-199209

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08050×9iAE92..3FC198809-199209

*8-1.25PX28-28

main90105-08056×2iAE92..3FC198809-199209

*8-1.25PX40-40

main90105-08065×10iAE92..4FC198809-199209

*8-1.25PX45-35

main90105-08068×3iAE92..4FC198809-199209

*8-1.25PX35-30

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-12120iAE92..4FC198809-199209

main35103-12150iAE92..3FC198809-199209

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03089iAE92..3FC198809-199209

main90930-03101iAE92..4FC198809-199209

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-12201iAE92..3FC198809-199102

main35104-12202iAE92..3FC199102-199209

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90311-34010iAE92..4FC198809-198811

main90311-34012iAE92..3FC198809-199209

main90311-34013iAE92..4FC198811-199209

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iAE92..3FC; AE92..4FC198809-199209

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×4iAE92..3FC; AE92..4FC198809-199209

35104UBOLT (FOR TRANSAXLE CASE)

main90105-10008×2iAE92..3FC198809-199209

*10-1.25PX53-26

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iAE92..4FC198809-199209

main90341-18016iAE92..3FC198809-199209

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iAE92..4FC198809-199209

main90430-18008iAE92..3FC198809-199209

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-10021iAE92..3FC198809-199008

main35106-10022iAE92..3FC199008-199209

main35106-12050iAE92..4FC198809-198908

main35106-12070iAE92..4FC198912-199209

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×15iAE92..3FC; AE92..4FC198809-199209

35144AGASKET, TRANSAXLE REAR COVER

main35144-12010iAE92..3FC198809-199209

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iAE92..ATM198809-199209

35159GASKET, BRAKE DRUM

main35159-20010iAE92..4FC198809-199209

main35159-32011iAE92..3FC198809-199209

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iAE92..4FC198809-199209

main35168-32010iAE92..3FC198809-199209

35175CAP, TRANSAXLE CASE, NO.2

main35175-32010iAE92..3FC198809-199209

35175ARING, O (FOR TRANSAXLE CASE CAP)

main90301-21002iAE92..3FC198809-199209

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iAE92..ATM198809-199209

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iAE92..3FC; AE92..4FC198809-199209

35395ASTRAINER, GOVERNOR OIL

main35395-12020iAE92..4FC198809-199209

main35395-32020iAE92..3FC198809-199209

9161160614

main91611-60614

27 parts on this diagram · 2 diagrams in section
