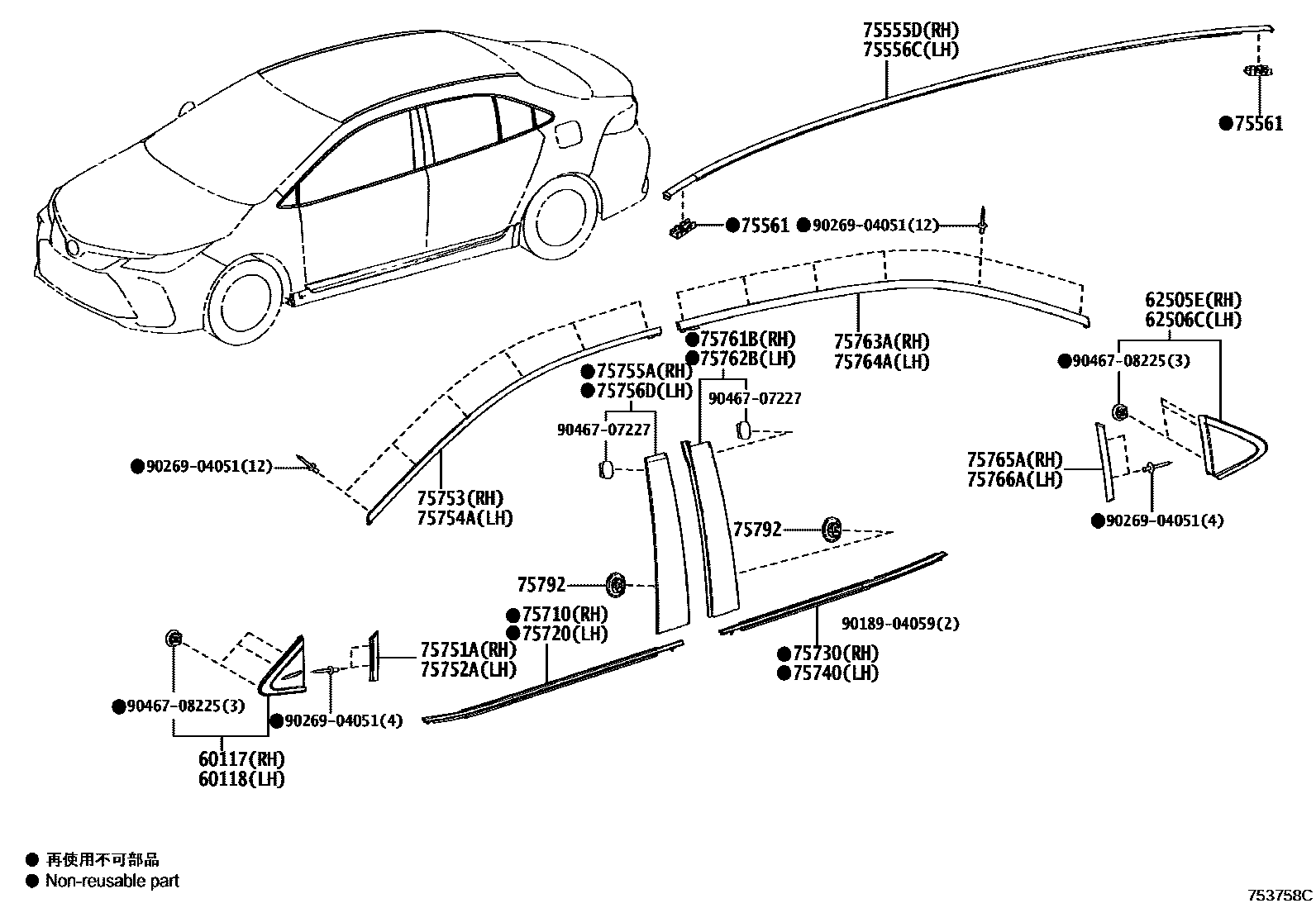

SIDE MOULDING

0001 1 0002 1 0005 1

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-12070iMZEA18..D202209

main60117-12090iZRE212..X202004-202208

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-12070iMZEA12,ZRE212,ZWE211..D,L,S,Y201901-202004

main60118-12090iZWE219..X202209-202409

62505ECOVER SUB-ASSY, QUARTER PILLAR, RH

main62505-12010iMZEA18..D202209

NO PAINT REQ.

main62505-12020iZRE212..X202004-202208

62506CCOVER SUB-ASSY, QUARTER PILLAR, LH

main62506-12010iMZEA18..D202209

NO PAINT REQ.

main62506-12020iZWE219..X202409

NO PAINT REQ.

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-12200iMZEA1#,ZWE21#..L,S,X,Y202409

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-12210iMZEA1#,ZWE21#..L,S,X,Y202409

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030×4iMZEA12,ZRE212,ZWE211201901-202004

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-12890iMZEA12,ZRE212,ZWE211201901-202004

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-12A30iMZEA1#,ZWE21#..L,S,X,Y202409

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-12490iMZEA1#,ZWE21#..L,S,X,Y202409

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-12580iMZEA1#,ZWE21#..L,S,X,Y202409

75751AMOULDING, FRONT DOOR WINDOW FRAME, RH(FRONT PILLAR SIDE)

main75751-12250iMZEA12,ZRE212,ZWE21#202004-202208

75752AMOULDING, FRONT DOOR WINDOW FRAME, LH(FRONT PILLAR SIDE)

main75752-12250iMZEA12,ZRE212,ZWE211201901-202004

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-12100iMZEA12,ZRE212,ZWE21#..D,L,S,Y202004-202208

main75753-12110iZRE212..X202004-202208

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-12080iMZEA1#,ZWE21#..L,S,Y202409

NO PAINT REQ.

main75754-12090iZRE212..X202004-202208

75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75755-12140iMZEA12,ZRE212,ZWE211201901-202004

75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75756-12160iMZEA1#,ZWE21#..L,S,X,Y202409

75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75761-12090iMZEA1#,ZWE21#..L,S,X,Y202409

75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75762-12090iMZEA1#,ZWE21#..L,S,X,Y202409

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-12090iMZEA12,ZRE212,ZWE211..D,L,S,Y201901-202004

main75763-12100iZRE212..X201901-202004

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-12100iMZEA12,ZRE212,ZWE211..D,L,S,Y201901-202004

main75764-12110iZRE212..X202004-202208

75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-12130iMZEA12,ZRE212,ZWE211201901-201907

main75765-12131iMZEA1#,ZWE21#..L,S,X,Y202409

75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-12130iMZEA12,ZRE212,ZWE211201901-201907

main75766-12131iMZEA12,ZRE212,ZWE21#202004-202208

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010×2iMZEA1#,ZWE21#..L,S,X,Y202409

9018904059

main90189-04059

9026904051

main90269-04051

9046707227

main90467-07227

9046708225

main90467-08225

28 parts on this diagram · 3 diagrams in section
