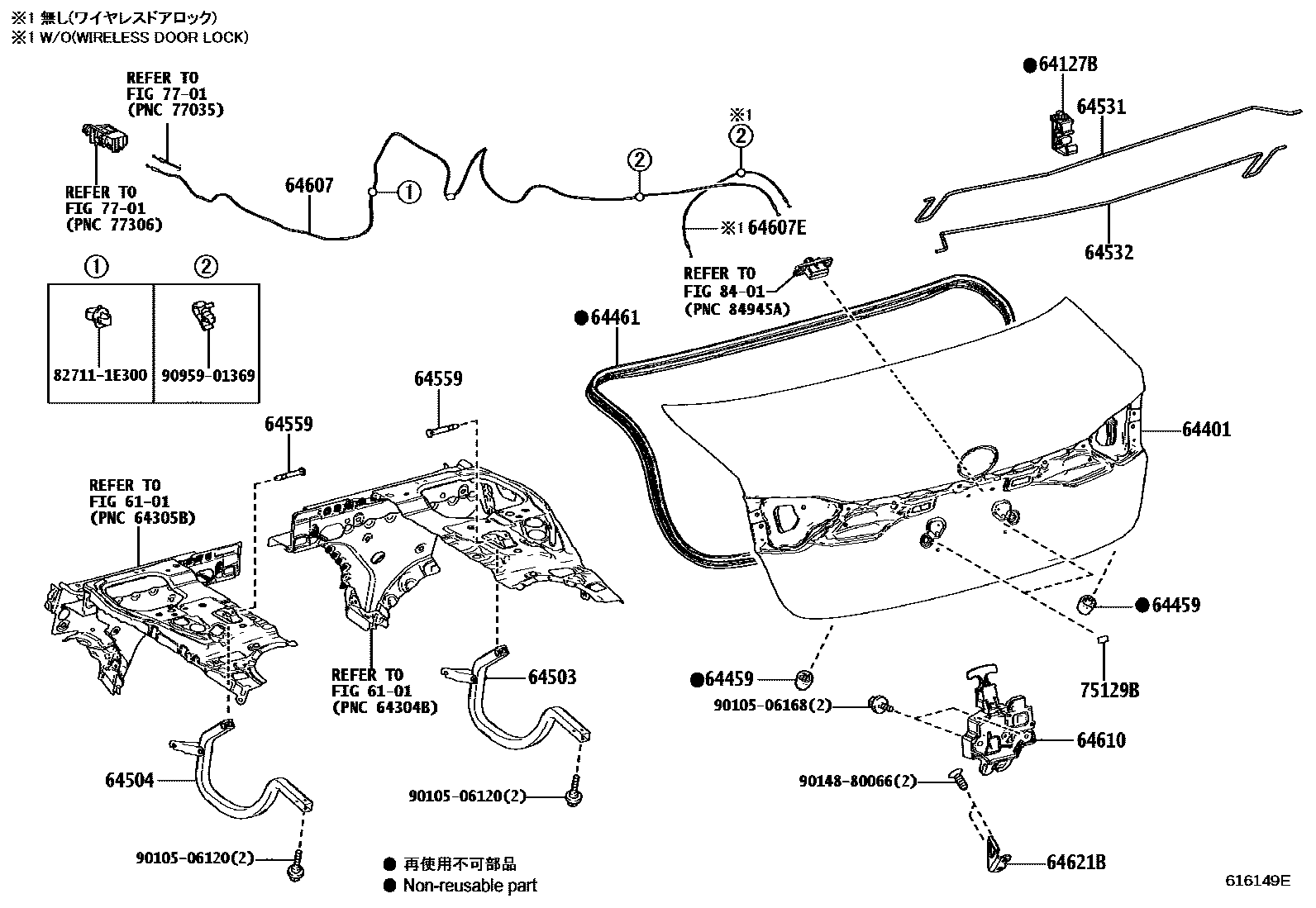

LUGGAGE COMPARTMENT DOOR & LOCK

6101SIDE MEMBER

→ Go to FIG 61-01

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-33071iMZEA1#,ZWE21#..L,S,X,Y202409

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-12D80supersedes 64401-12E80iMZEA18,ZWE21#..L..USA; ZWE219..X;ZWE21#..L..CND202409

LE PACKAGE; LE PACKAGE 2

main64401-12E00supersedes 64401-12E90iMZEA12..CVT..S; MZEA12..Y;MZEA12..6F202004-202208

WITH(SMART ENTRY & PANIC ALARM)

main64401-12E10iMZEA18..D202209

main64401-12E80supersedes 64401-12E10iZRE212..D; ZRE212..L201901-202004

WITH(WIRELESS DOOR LOCK & PANIC ALARM)

main64401-12E90iMZEA12..6F; MZEA12..CVT..S201901-202004

WITH(WIRELESS DOOR LOCK & PANIC ALARM)

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09069×2iMZEA1#,ZWE21#..L,S,X,Y202409

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-12610iMZEA1#,ZWE21#..L,S,X,Y202409

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-12200iMZEA18..D202209

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-12200iMZEA12,ZRE212,ZWE211201901-202004

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-12890iMZEA18..D202209

main64531-12A00iMZEA12..S201901-202004

main64531-12A30iMZEA12,ZWE215..Y202209-202409

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-12880iZRE212,ZWE21#202004-202208

main64532-12890iMZEA12,ZWE21#..S202209-202409

main64532-12A20iMZEA12..Y201901-202004

64559PIN, LUGGAGE DOOR HINGE

main64559-12040×2iMZEA1#,ZWE21#..L,S,X,Y202409

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-12A91iMZEA18..D202209

main64607-12B10supersedes 64607-12A91iMZEA1#,ZWE21#..L,S,X,Y202409

64607ECABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-12B00iZRE212..D202004-202208

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-12090supersedes 64610-12500iMZEA12,ZRE212,ZWE211..L,S,X,Y; ZRE212..D201901-202004

WITH(WIRELESS DOOR LOCK & PANIC ALARM)

main64610-12500iMZEA18..D202209

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-33030iMZEA1#,ZWE21#..L,S,X,Y202409

75129BCUSHION, REAR LICENCE PLATE

main75129-30010×2iMZEA1#,ZWE21#..L,S,X,Y202409

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

9010506120

main90105-06120

9010506168

main90105-06168

9014880066

main90148-80066

9095901369

main90959-01369

22 parts on this diagram · 1 diagram in section
