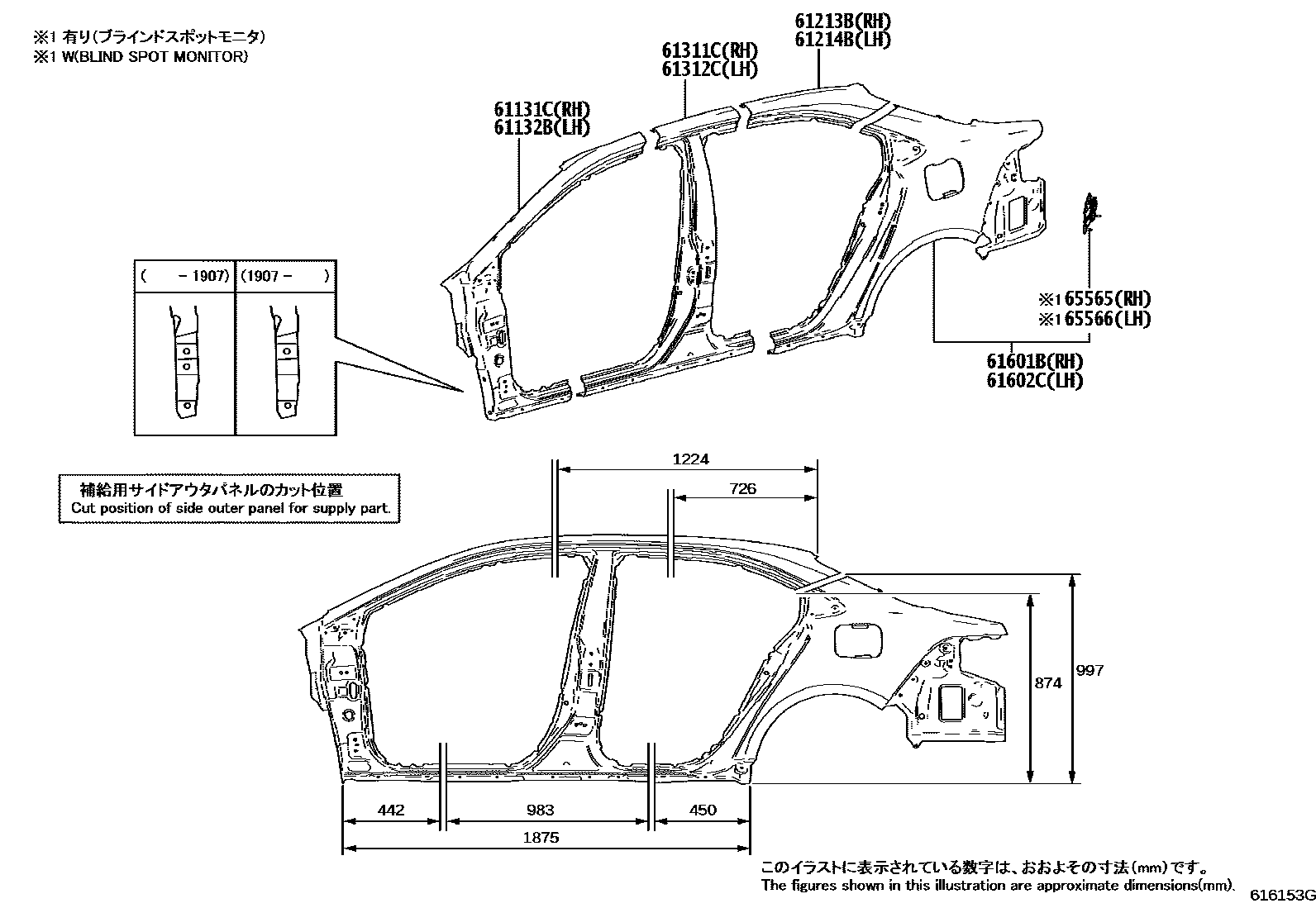

SIDE MEMBER
61131CPILLAR, FRONT BODY, OUTER RH
61132BPILLAR, FRONT BODY, OUTER LH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61214BRAIL, ROOF SIDE, OUTER NO.2 LH
61311CPANEL, REAR BODY FRONT OUTSIDE, RH
61312CPANEL, REAR BODY FRONT OUTSIDE, LH
61601BPANEL SUB-ASSY, QUARTER, RH
main61601-12C40iMZEA12,ZWE21#..S..USA; MZEA18,ZWE21#..L..USA; ZWE21#..CND;MZEA12,ZWE219..X,Y202209-202307
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST); LE PACKAGE&WITH(SMART ENTRY & PANIC ALARM); LE PACKAGE2&WITH(SMART ENTRY & PANIC ALARM)
main61601-12C41iMZEA12,ZWE21#..S..USA; MZEA18,ZWE21#..L..USA; ZWE21#..CND;MZEA12,ZWE219..X,Y202308-202406
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST); LE PACKAGE&WITH(SMART ENTRY & PANIC ALARM); LE PACKAGE2&WITH(SMART ENTRY & PANIC ALARM)
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST); LE PACKAGE 2&SMART ENTRY-WITH(SMART ENTRY & PANIC ALARM); LE PACKAGE&REMOTE AIR CONDITIONER PACKAGE&SMART ENTRY-WITH(SMART ENTRY & PANIC ALARM)
61602CPANEL SUB-ASSY, QUARTER, LH
main61602-12C40iMZEA12,ZWE21#..S..USA; MZEA18,ZWE21#..L..USA; ZWE21#..CND;MZEA12,ZWE219..X,Y202209-202307
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST); LE PACKAGE&WITH(SMART ENTRY & PANIC ALARM); LE PACKAGE2&WITH(SMART ENTRY & PANIC ALARM)
main61602-12C41iMZEA12,ZWE21#..S..USA; MZEA18,ZWE21#..L..USA; ZWE21#..CND;MZEA12,ZWE219..X,Y202308-202406
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST); LE PACKAGE&WITH(SMART ENTRY & PANIC ALARM); LE PACKAGE2&WITH(SMART ENTRY & PANIC ALARM)
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST); LE PACKAGE 2&SMART ENTRY-WITH(SMART ENTRY & PANIC ALARM); LE PACKAGE&REMOTE AIR CONDITIONER PACKAGE&SMART ENTRY-WITH(SMART ENTRY & PANIC ALARM)
65565PATCH, SIDE PANEL REAR END, RH
LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR)
65566PATCH, SIDE PANEL REAR END, LH
BLIND SPOT MONITOR-WITH(SAFE EXIT ASSIST); LE PACKAGE 2&SMART ENTRY-WITH(SMART ENTRY & PANIC ALARM); LE PACKAGE&REMOTE AIR CONDITIONER PACKAGE&SMART ENTRY-WITH(SMART ENTRY & PANIC ALARM)
10 parts on this diagram · 3 diagrams in section
