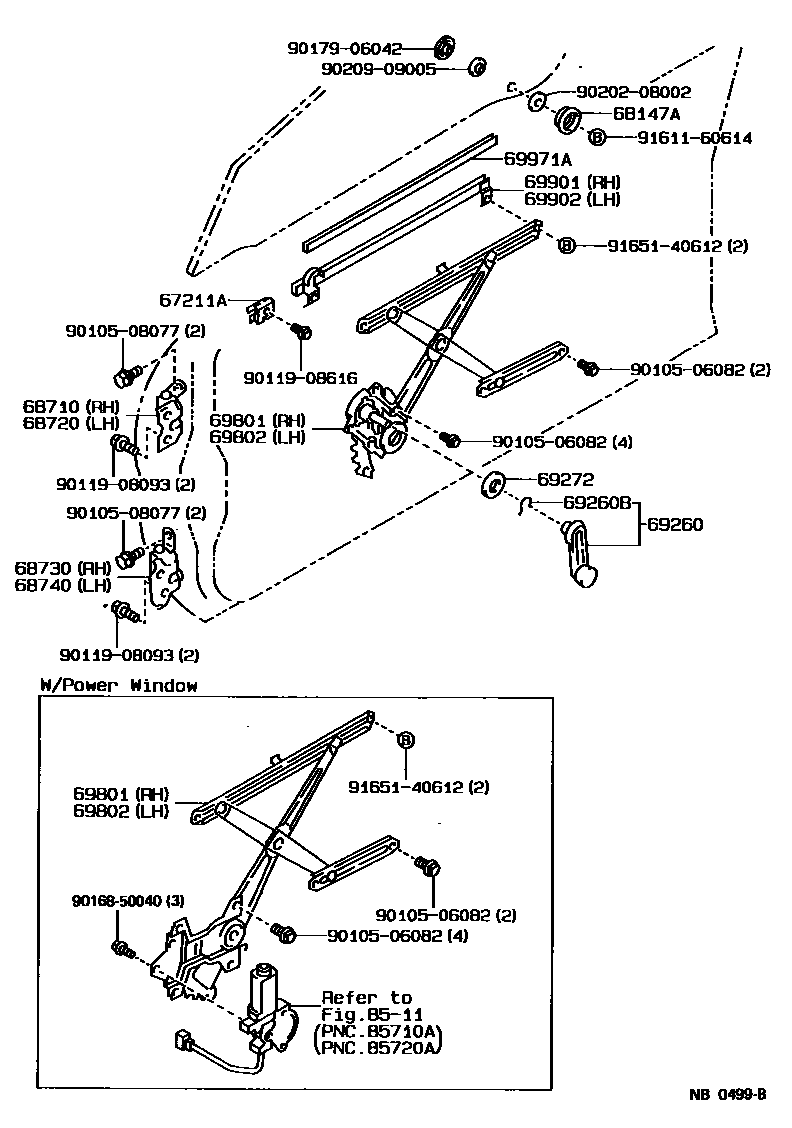

FRONT DOOR WINDOW REGULATOR & HINGE

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67211-24010iAE92..GTS,SR5198708-199106

68147ASTOP, FRONT DOOR GLASS, UPPER

main68147-14010iAE92198708-199106

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12110iAE92198708-199106

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12110iAE92198708-199106

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12070iAE92198708-199106

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12070iAE92198708-199106

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-32iAE92..CBR;AE92..(GTS,SR5)..EFI198708-199106

RED,TRIM3#

main69260-10040-43iAE92198708-199106

GRAY,TRIM1#

main69260-10040-55iAE92..CBR198708-198908

DARK BEIGE,TRIM4#

main69260-10040-57iAE92..(DX,SR5)..USA198908-199106

BROWN,TRIM4#

main69260-10040-58iAE92198708-199106

DARK BLUE,TRIM8#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iAE92198708-199106

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-16010iAE92198708-199106

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12120iAE92..GTS,SR5198708-199106

W(POWER WINDOW)

main69810-12350iAE92198708-199106

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12120iAE92..GTS,SR5198708-199106

W(POWER WINDOW)

main69820-12350iAE92198708-199106

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-12220iAE92198708-199106

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-12160iAE92198708-199106

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-12080iAE92198708-199106

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010506082

main90105-06082

9010508077

main90105-08077

9011908093

main90119-08093

9011908616

main90119-08616

9016850040

main90168-50040

9017906042

main90179-06042

9020208002

main90202-08002

9020909005

main90209-09005

9161160614

main91611-60614

9165140612

main91651-40612

25 parts on this diagram · 1 diagram in section
