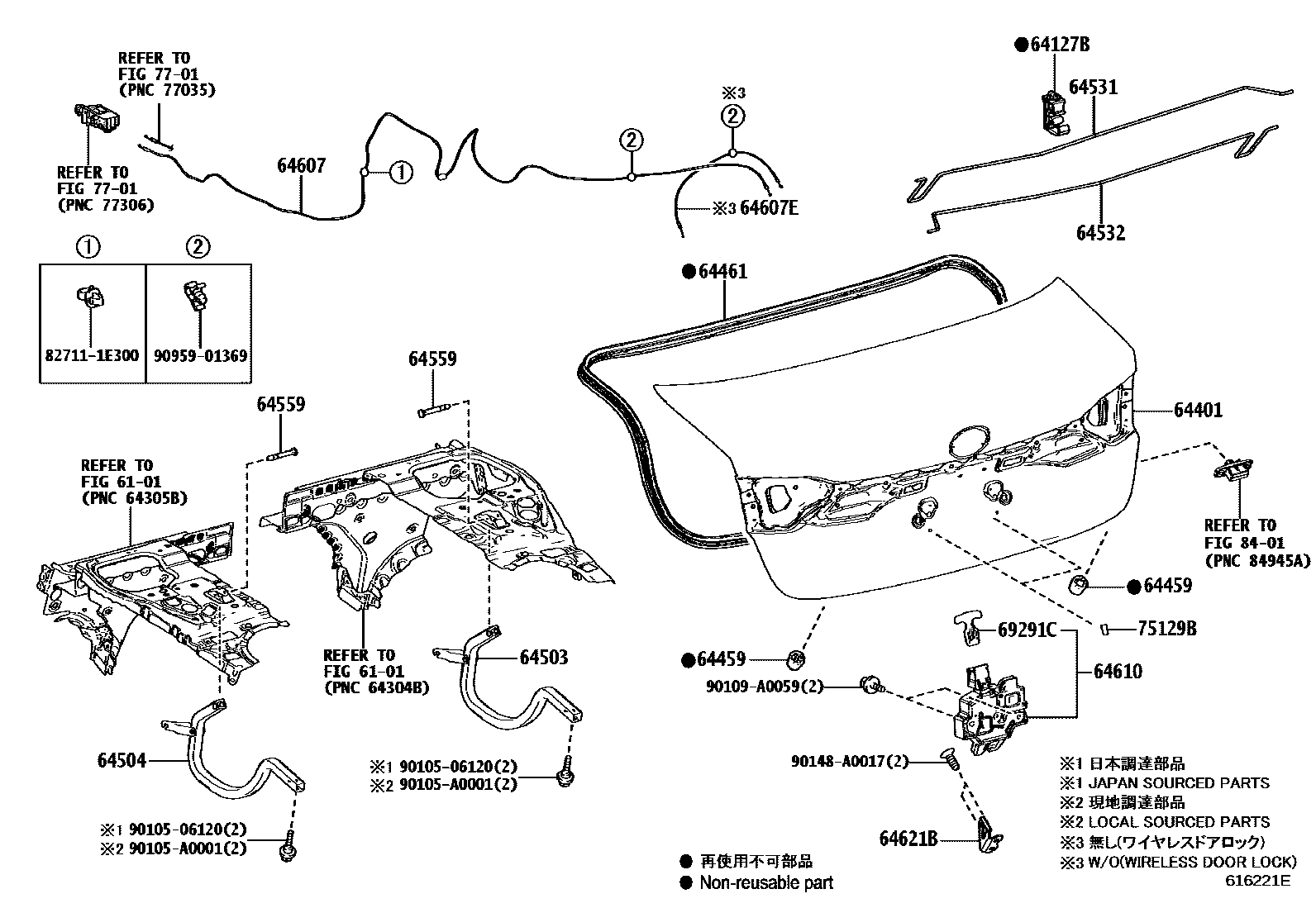

LUGGAGE COMPARTMENT DOOR & LOCK

6101SIDE MEMBER

→ Go to FIG 61-01

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-06052iMZEA12,ZRE212202007-202211

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-02E80iZRE212..L; ZRE212..X201903-202007

LE PACKAGE

main64401-02F00supersedes 64401-02J00iMZEA12202410

main64401-02F10iMZEA18..D..USA202211

main64401-02J20iZRE212..L;ZRE212..D..CND202007-202211

main64401-02J00iMZEA12..6F..USA; MZEA12..CVT..S..USA202007-202211

WIRELESS DOOR LOCK-WITH

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09069×2iMZEA1#..L,S,Y;MZEA18..D..CND202410

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-02290iMZEA18..D..USA202211

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-02220iMZEA12,ZRE212201903-202007

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-02220iMZEA12,ZRE212202007-202211

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-02530iMZEA18..D..USA202211

main64531-02540iMZEA12..S201903-202007

main64531-02700supersedes 64531-02540iMZEA12..Y202007-202211

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-02530iMZEA18..D..USA202211

main64532-02540iMZEA12..S201903-202007

main64532-02700supersedes 64532-02540iMZEA12..Y202410

64559PIN, LUGGAGE DOOR HINGE

main64559-12040×2iMZEA12,ZRE212201903-202007

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-02481iZRE212..D..USA202007-202211

main64607-02500iMZEA1#..L,S,Y;MZEA18..D..CND202410-202412

main64607-02501iMZEA1#..L,S,Y;MZEA18..D..CND202501

64607ECABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-02490iZRE212..D..USA201903-202007

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-06041iMZEA1#..L,S,Y;MZEA18..D..CND202211-202410

main64610-02180iZRE212..D..USA202007-202211

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-06030iMZEA1#..L,S,Y;MZEA18..D..CND202410

69291CHANDLE, LUGGAGE COMPARTMENT DOOR, INSIDE

main69291-33020iMZEA1#..L,S,Y;MZEA18..D..CND202410

75129BCUSHION, REAR LICENCE PLATE

main75129-30010×2iMZEA1#..L,S,Y;MZEA18..D..CND202410

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

9010506120

main90105-06120

90105A0001

main90105-A0001

90109A0059

main90109-A0059

90148A0017

main90148-A0017

9095901369

main90959-01369

24 parts on this diagram · 1 diagram in section
