HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
5501INSTRUMENT PANEL & GLOVE COMPARTMENT
55900CONTROL ASSY, AIR CONDITIONER
AIR CONDITIONER-AUTO(SINGLE MODE)
55901DCONTROL SUB-ASSY, HEATER, NO.1
AIR CONDITIONER-MANUAL
55902ECONTROL SUB-ASSY, HEATER, NO.2
main55902-0R040iZRE172..HTWC..CND;ZRE172..(LE,STD)..USA; ZRE172..LE..USA; ZRE172..LE..USA;ZRE172..(LE,S)..CND201308-201608
AIR CONDITIONER-AUTO(SINGLE MODE); USA&AIR CONDITIONER-AUTO(SINGLE MODE); WITHOUT(COLD AREA SPEC)&AIR CONDITIONER-AUTO(SINGLE MODE)
AIR CONDITIONER-MANUAL
55903ACONTROL SUB-ASSY, HEATER, NO.3
main55903-0R020supersedes 55903-02210iZRE172..(LE,S)..CND;ZRE172..(LE,STD)..USA; ZRE172..LE..USA; ZRE172..LE..USA;ZRE172..(LE,S)..CND; ZRE172..STD..CND201308-201608
AIR CONDITIONER-AUTO(SINGLE MODE); AIR CONDITIONER-MANUAL A/C; USA&AIR CONDITIONER-AUTO(SINGLE MODE); WITHOUT(COLD AREA SPEC)&AIR CONDITIONER-AUTO(SINGLE MODE)
WITHOUT(COLD AREA SPEC)
55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2
main55906-0K010iZRE172..HTWC..CND;ZRE172..(LE,STD)..USA; ZRE172..LE..USA; ZRE172..LE..USA;ZRE172..(LE,S)..CND201308-201608
(L); AIR CONDITIONER-AUTO(SINGLE MODE),(L); USA&AIR CONDITIONER-AUTO(SINGLE MODE),(L); WITHOUT(COLD AREA SPEC)&AIR CONDITIONER-AUTO(SINGLE MODE),(L)
(J)
55909CCABLE SUB-ASSY, AIRMIX DAMPER CONTROL
main55909-0K010iZRE172..HTWC..CND;ZRE172..(LE,STD)..USA; ZRE172..LE..USA; ZRE172..LE..USA;ZRE172..(LE,S)..CND201308-201608
(L); AIR CONDITIONER-AUTO(SINGLE MODE),(L); USA&AIR CONDITIONER-AUTO(SINGLE MODE),(L); WITHOUT(COLD AREA SPEC)&AIR CONDITIONER-AUTO(SINGLE MODE),(L)
(J); AIR CONDITIONER-MANUAL,(J)

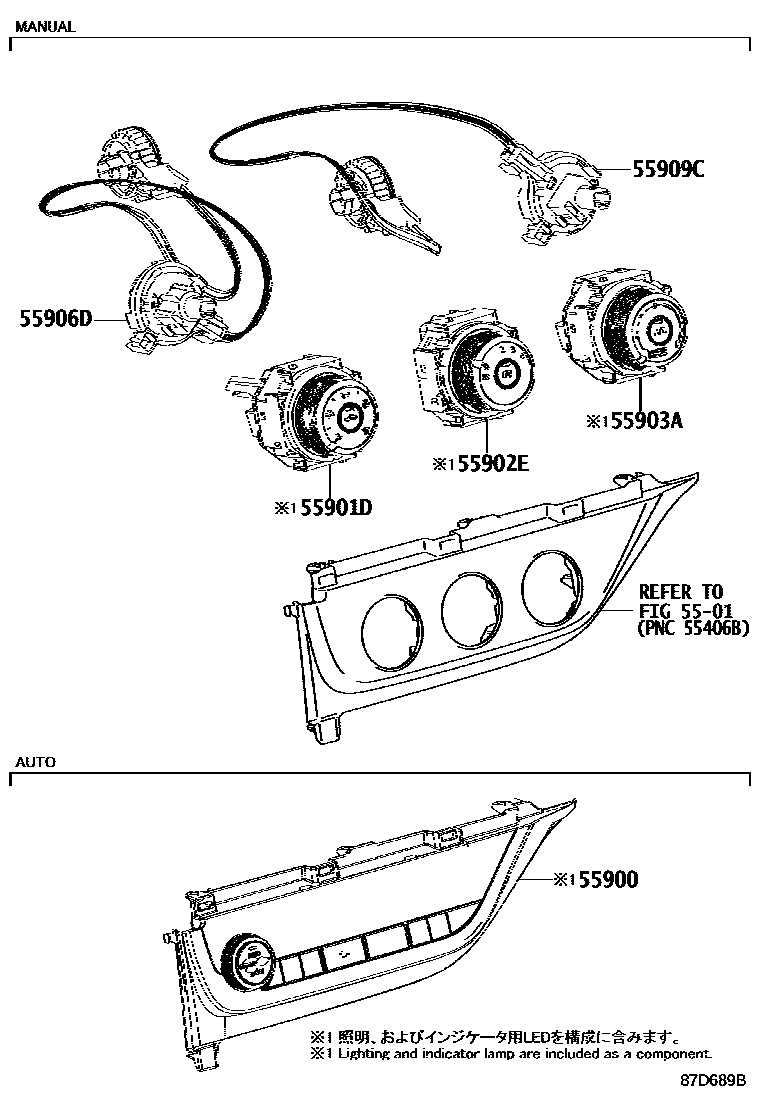

7 parts on this diagram · 5 diagrams in section
