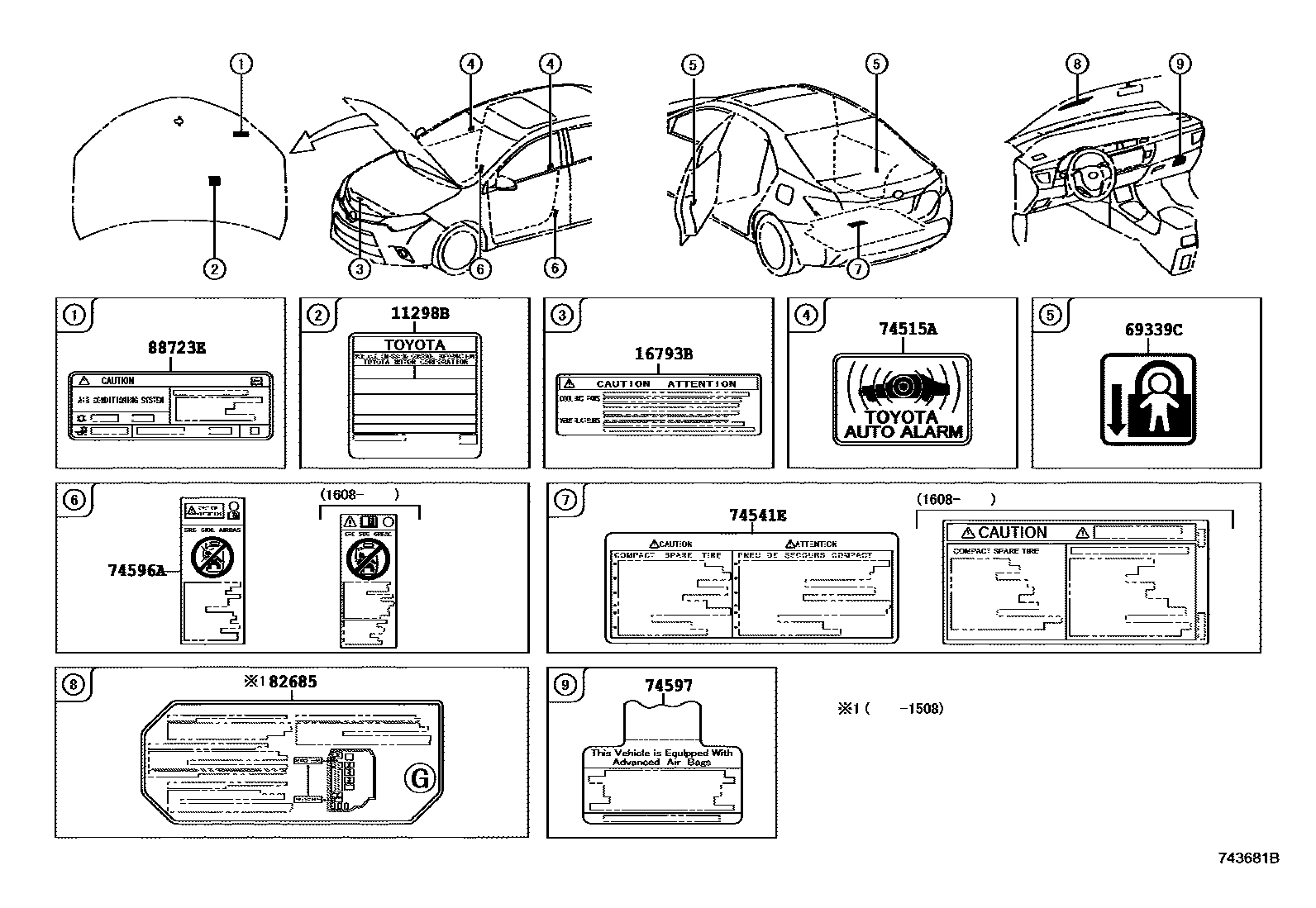

CAUTION PLATE (EXTERIOR & INTERIOR)

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-0T130i2ZRFAE..ZRE172201308-201408

main11298-0T170i2ZRFE..ZRE172201308-201408

main11298-0T220i2ZRFE..ZRE172201408-201508

main11298-0T230i2ZRFAE..ZRE172201408-201508

main11298-0T240i2ZRFE..ZRE172201508-201608

main11298-0T250i2ZRFAE..ZRE172201508-201608

main11298-0T310i2ZRFE..ZRE172201608-201708

main11298-0T320i2ZRFAE..ZRE172201608-201708

main11298-0T400i2ZRFE..ZRE172201708-201806

main11298-0T410i2ZRFE..ZRE172201806

main11298-0T430i2ZRFAE..ZRE172201708-201806

main11298-0T440i2ZRFAE..ZRE172201806

16793BLABEL, COOLING FAN INFORMATION

main16793-0T020i2ZR#..ZRE172201308-201608

69339CLABEL, CHILD PROTECTOR INFORMATION

main69339-06040×2iZRE172201308-201608

74515APLATE, THEFT WARNING

main74515-06010×2iZRE172..(LE,S)..USA; ZRE172..STD..USA201308-201608

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM); PUERTO RICO SPEC

74541EPLATE, COMPACT SPARE TIRE CAUTION

main42668-06010iZRE172201308-201608

main42668-0E010iZRE172201608

74596ALABEL, SIDE AIRBAG CAUTION

main74596-02020×2iZRE172201308-201608

main74596-78010×2iZRE172201608

74597LABEL, DRIVER & PASSENGER AIRBAG CAUTION

main74599-0E020iZRE172..USA201308-201608

82685PLATE, CAUTION

main82685-12110iZRE172..USA201308-201508

GUAM,SAIPAN SPEC; HAWAII SPEC; PUERTO RICO SPEC

88723ELABEL, COOLER SERVICE CAUTION

main88723-02230iZRE172..STD..CND; ZRE172..STD..USA;ZRE172..ECO,ECOSW,LE,S201308-201608

AIR CONDITIONER-MANUAL A/C

9 parts on this diagram · 1 diagram in section
