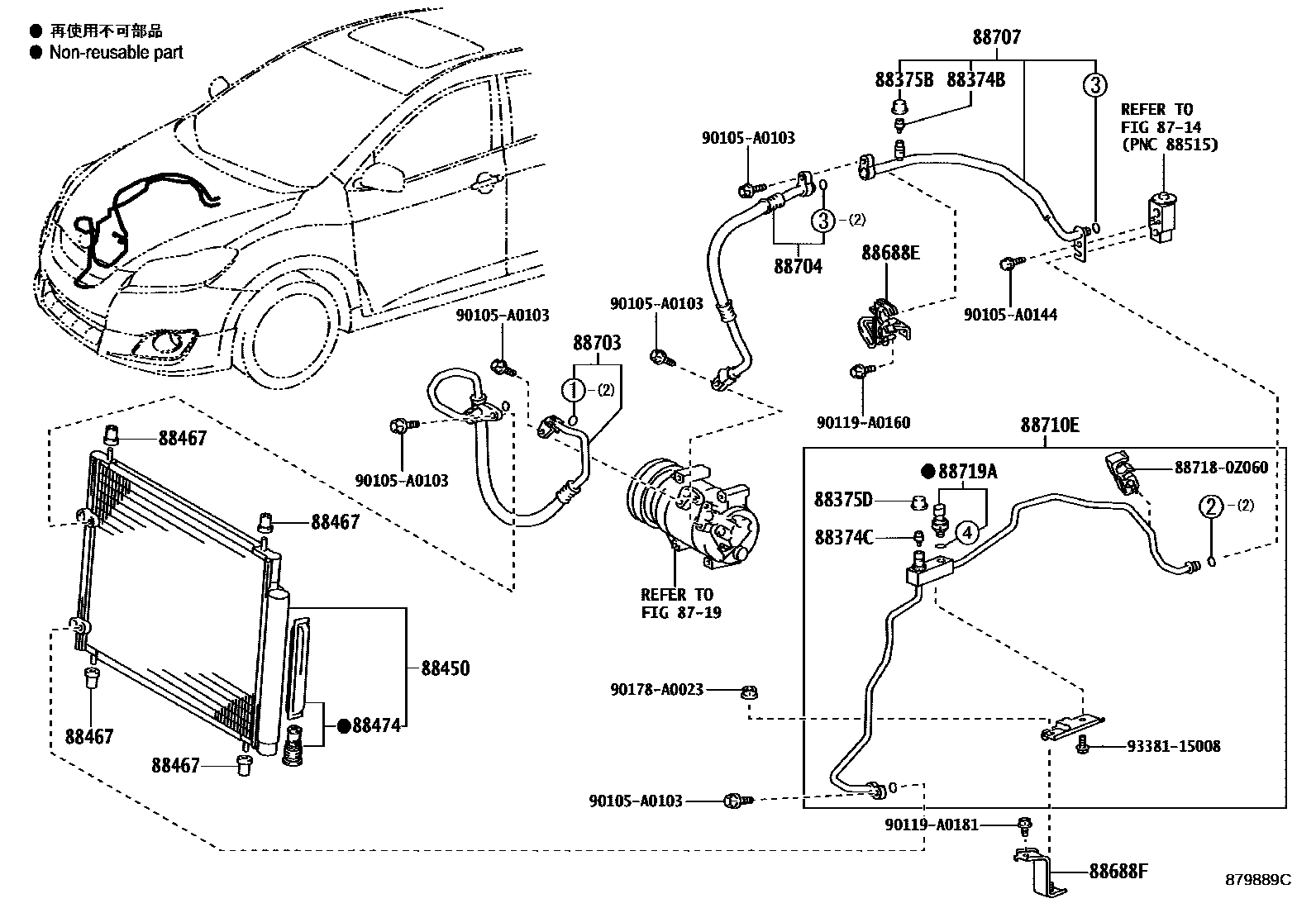

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1O-RING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iAZE14#,ZRE142; ZRE142..CND200801-201012

AIR CONDITIONER-WITHOUT

88374CVALVE, SERVICE, NO.2

main88374-30010iAZE14#,ZRE142; ZRE142..CND200801-201012

AIR CONDITIONER-WITHOUT

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iAZE14#,ZRE142; ZRE142..CND200801-201012

AIR CONDITIONER-WITHOUT

88375DCAP, SERVICE VALVE, NO.2

main88375-02060iAZE14#,ZRE142; ZRE142..CND200801-201012

AIR CONDITIONER-WITHOUT

88450CONDENSER ASSY, W/RECEIVER

main88450-02330iAZE14#,ZRE142; ZRE142..CND200801-201012

AIR CONDITIONER-WITHOUT

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010×4iAZE14#,ZRE142; ZRE142..CND200801-201012

AIR CONDITIONER-WITHOUT

88474DRYER, COOLER

main88474-17010iAZE14#,ZRE142; ZRE142..CND200801-201012

AIR CONDITIONER-WITHOUT

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-0Z160iAZE14#,ZRE142; ZRE142..CND200801-201012

AIR CONDITIONER-WITHOUT

88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2

main88688-0Z240iAZE14#,ZRE142; ZRE142..CND200801-201012

AIR CONDITIONER-WITHOUT

88703HOSE SUB-ASSY, DISCHARGE

main88703-02460iZRE142; ZRE142..CND200801-201012

AIR CONDITIONER-WITHOUT

main88703-02470iAZE14#200801-201012

main88703-02690iZRE142; ZRE142..CND201012

AIR CONDITIONER-WITHOUT

88704HOSE SUB-ASSY, SUCTION

main88704-02690iZRE142; ZRE142..CND201012

AIR CONDITIONER-WITHOUT

main88704-02700iAZE14#201012-201308

88707PIPE SUB-ASSY, SUCTION

main88707-02070iAZE14#,ZRE142; ZRE142..CND200801-201012

AIR CONDITIONER-WITHOUT

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-0Z020iAZE14#,ZRE142; ZRE142..CND200801-201012

AIR CONDITIONER-WITHOUT

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iAZE14#,ZRE142; ZRE142..CND200801-201012

AIR CONDITIONER-WITHOUT

887180Z060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0Z060

90105A0103

main90105-A0103

90105A0144

main90105-A0144

90119A0160

main90119-A0160

90119A0181

main90119-A0181

90178A0023

main90178-A0023

9338115008

main93381-15008

23 parts on this diagram · 3 diagrams in section
