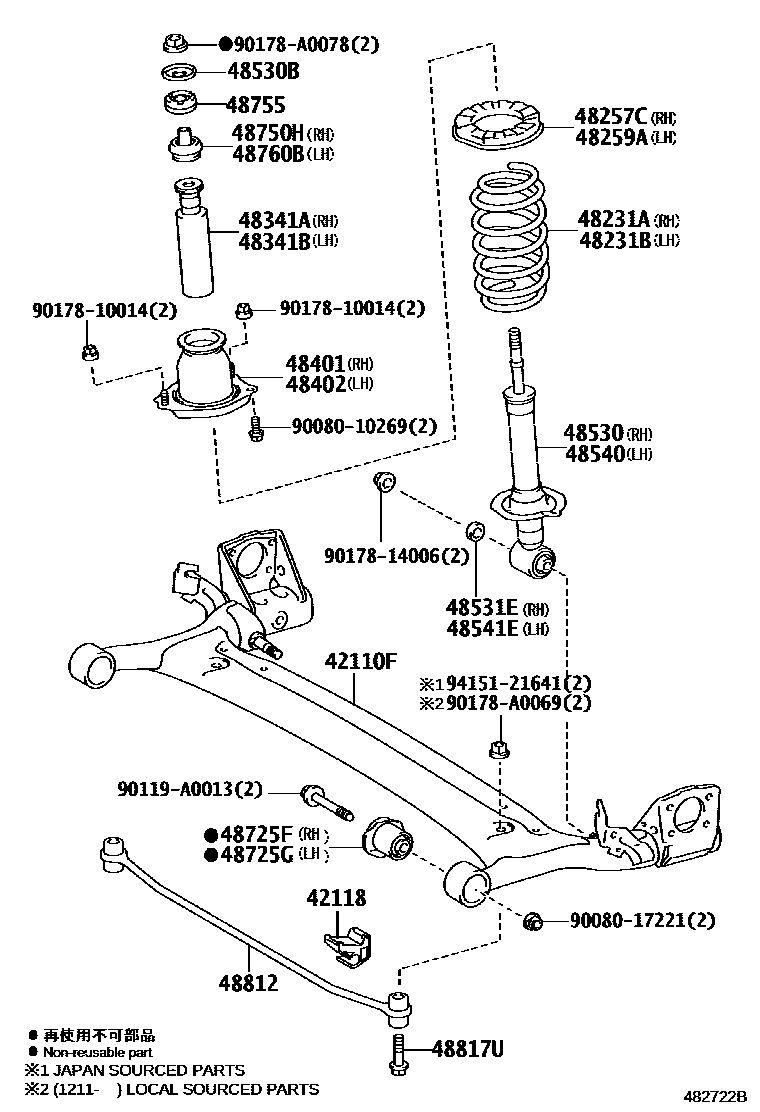

REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
42118DAMPER, REAR AXLE BEAM
48231ASPRING, COIL, REAR RH
MEXICO SPEC
48231BSPRING, COIL, REAR LH
MEXICO SPEC
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-02560
MARK 48530-02580
MARK 48530-02590
MARK 48530-02600,MEXICO SPEC
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-02560
MARK 48530-02580
MARK 48530-02590
MARK 48530-02600,MEXICO SPEC
48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)
48725BUSH, LOWER CONTROL ARM
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
48812BAR, STABILIZER, REAR
48817UBOLT(FOR REAR STABILIZER)
9008010269
main90080-10269
9008017221
main90080-17221
90119A0013
main90119-A0013
9017810014
main90178-10014
9017814006
main90178-14006
90178A0069
main90178-A0069
90178A0078
main90178-A0078
9415121641
main94151-21641
31 parts on this diagram · 2 diagrams in section
