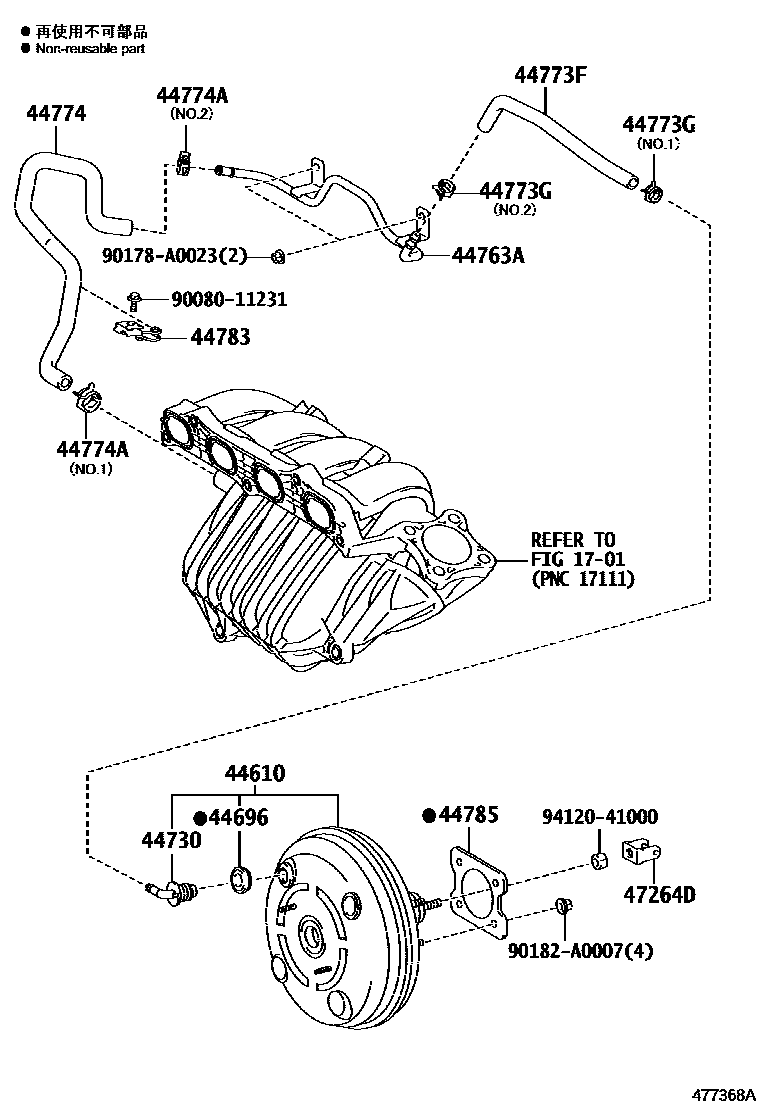

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-02441iZRE142..CND; ZRE142..USA200902-201012

VSC-WITH(W/CUT OFF SW) V2P

main44610-02451iZRE142..USA200803-200902

main44610-02470supersedes 44610-02460iAZE141,144; AZE146200801-200802

VSC-WITH(W/CUT OFF SW)

main44610-02471supersedes 44610-02461iAZE141,144..CND; AZE146200803-201012

VSC-WITH(W/CUT OFF SW)

main44610-02440supersedes 44610-02450iZRE142200801-200802

VSC-WITH(W/CUT OFF SW)

main44610-02461iAZE141..USA200902-201012

MEXICO SPEC

44696GROMMET, CHECK VALVE

main90080-48071iAZE14#,ZRE142200801-201012

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iAZE14#,ZRE142200801-200807

main44730-20170iAZE14#,ZRE142200808-201012

44763ATUBE, HOSE TO HOSE, NO.1

main44763-02080iAZE14#201012-201308

44773FHOSE, UNION TO CHECK VALVE

main44773-02050iZRE142200801-201012

main44773-02060iAZE14#200801-201012

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iAZE14#,ZRE142200801-201012

NO.1

main96133-41500iAZE14#,ZRE142200801-201012

NO.2

44774HOSE, UNION TO CONNECTOR TUBE

main44774-02080iAZE14#200801-201012

main44774-02090iZRE142201012

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90466-A0025iAZE14#201201-201308

NO.1

main96133-41500iAZE14#; ZRE142200801-201012

NO.2

main96136-51801iAZE14#201012-201112

NO.1

44783CLAMP, VACUUM HOSE

main44783-44010iAZE14#200801-201012

44785GASKET, BRAKE BOOSTER

main44785-02060iAZE14#,ZRE142201012

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-02100iZRE142201307

main47264-63020iAZE14#,ZRE142200801-201012

9008011231

main90080-11231

90178A0023

main90178-A0023

90182A0007

main90182-A0007

9412041000

main94120-41000

16 parts on this diagram · 2 diagrams in section
