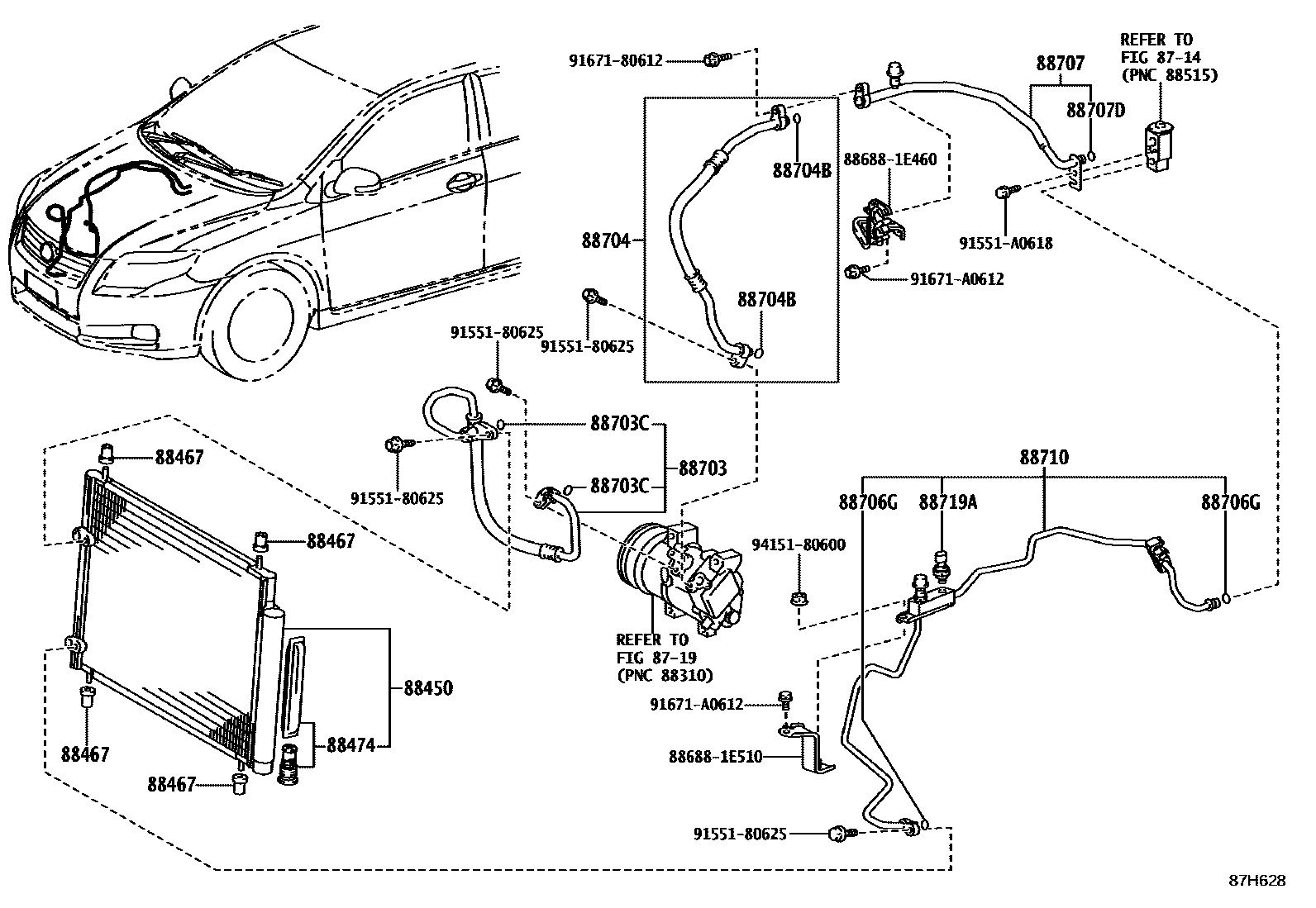

HEATING & AIR CONDITIONING - COOLER PIPING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88450CONDENSER ASSY, W/RECEIVER

main88450-12280iZRE142..JPP200712-201012

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010×4iZRE142..JPP200712-201012

88474DRYER, COOLER

main88474-12030iZRE142..JPP200712-201012

88703HOSE SUB-ASSY, DISCHARGE

main88703-1A070iZRE142..JPP200712-201012

main88703-1A141iZRE142..JPP201012-201308

88703CRING, O(FOR DISCHARGE HOSE)

main90099-14120×2iZRE142..JPP200712-201012

ID=10.8,OD=15.6

88704HOSE SUB-ASSY, SUCTION

main88704-1A300iZRE142..JPP200712-201012

88704BRING, O(FOR SUCTION HOSE)

main90099-14121×2iZRE142..JPP200712-201012

ID=13.4,OD=18.2

88706GRING, O(FOR LIQUID TUBE)

main90099-14119×2iZRE142..JPP200712-201012

ID=6.7,OD=10.3

88707PIPE SUB-ASSY, SUCTION

main88707-12290iZRE142..JPP200712-201012

88707DRING, O(FOR SUCTION TUBE)

main90099-14121iZRE142..JPP200712-201012

ID=13.4,OD=18.2

88710TUBE ASSY, AIR CONDITIONER

main88710-12860iZRE142..JPP200712-201012

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iZRE142..JPP200712-201012

886881E460BRACKET, COOLER DIAPHRAGM

main88688-1E460

886881E510BRACKET, COOLER DIAPHRAGM

main88688-1E510

9155180625

main91551-80625

91551A0618

main91551-A0618

9167180612

main91671-80612

91671A0612

main91671-A0612

9415180600

main94151-80600

21 parts on this diagram · 1 diagram in section
