HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL(MANUAL) 0002 1HEATER CONTROL PANEL(AUTO) 0003 1AIR DUCT 0004 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

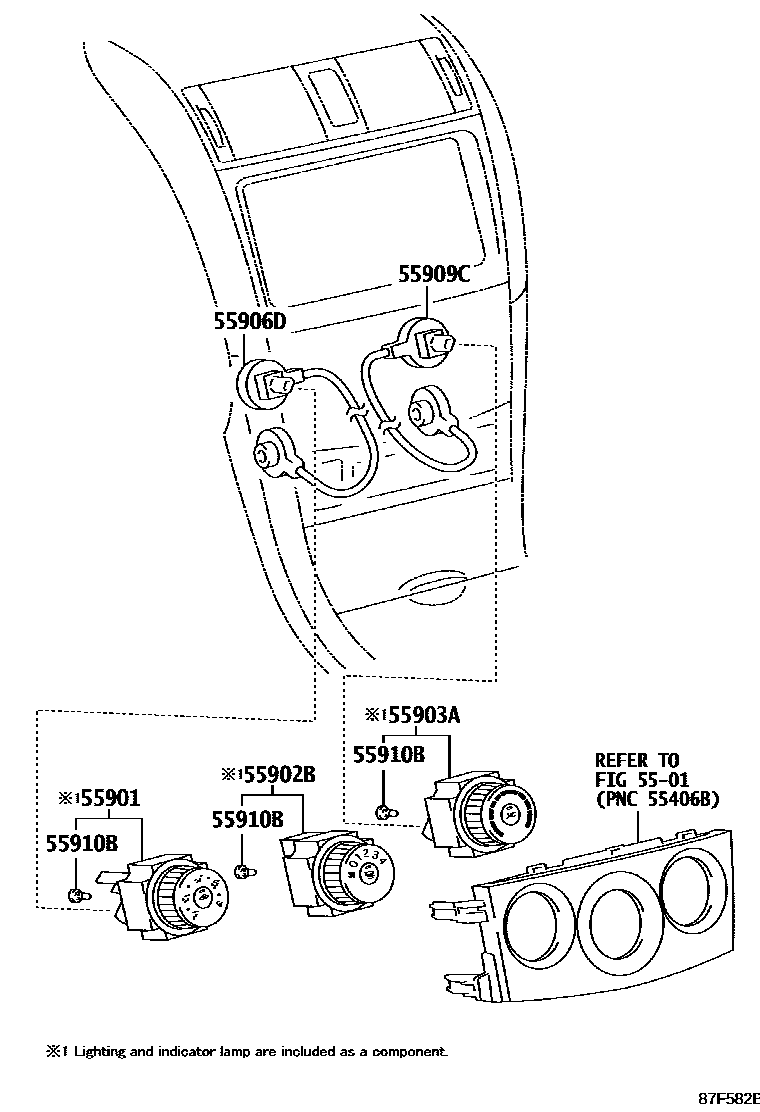

55901BASE SUB-ASSY, HEATER CONTROL

main55901-12170iZRE142..JPP..STD201012-201308

main55901-12220iZRE142..JPP..LE201012-201308

KOREA SPEC&AIR CONDITIONER-AUTO; KOREA SPEC&COLD AREA SPEC&AIR CONDITIONER-AUTO

55902BCONTROL SUB-ASSY, HEATER

main55902-12100iZRE142..JPP; ZRE142..JPP..LE200712-201012

AIR CONDITIONER-AUTO; COLD AREA SPEC&AIR CONDITIONER-AUTO

main55902-12140iZRE142..JPP..LE201012-201308

KOREA SPEC&AIR CONDITIONER-AUTO; KOREA SPEC&COLD AREA SPEC&AIR CONDITIONER-AUTO

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-12080supersedes 55903-12090iZRE142..JPP..LE201102-201308

KOREA SPEC&AIR CONDITIONER-AUTO; KOREA SPEC&COLD AREA SPEC&AIR CONDITIONER-AUTO

main55903-12090iZRE142..JPP..LE201012-201102

KOREA SPEC&AIR CONDITIONER-AUTO; KOREA SPEC&COLD AREA SPEC&AIR CONDITIONER-AUTO

main55903-12100supersedes 55903-12090iZRE142..JPP; ZRE142..JPP..LE200712-201012

AIR CONDITIONER-AUTO; COLD AREA SPEC&AIR CONDITIONER-AUTO

main55903-12200iZRE142..JPP..STD201012-201102

COLD AREA SPEC

55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2

main55906-26060iZRE142..JPP; ZRE142..JPP..LE201012-201308

KOREA SPEC&AIR CONDITIONER-AUTO; KOREA SPEC&COLD AREA SPEC&AIR CONDITIONER-AUTO

55909CCABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-26080iZRE142..JPP; ZRE142..JPP..LE200712-201012

AIR CONDITIONER-AUTO; COLD AREA SPEC&AIR CONDITIONER-AUTO

55910BBULB, HEATER CONTROL

main90010-01122×3iZRE142..JPP; ZRE142..JPP..LE200712-201012

AIR CONDITIONER-AUTO; COLD AREA SPEC&AIR CONDITIONER-AUTO

7 parts on this diagram · 4 diagrams in section
