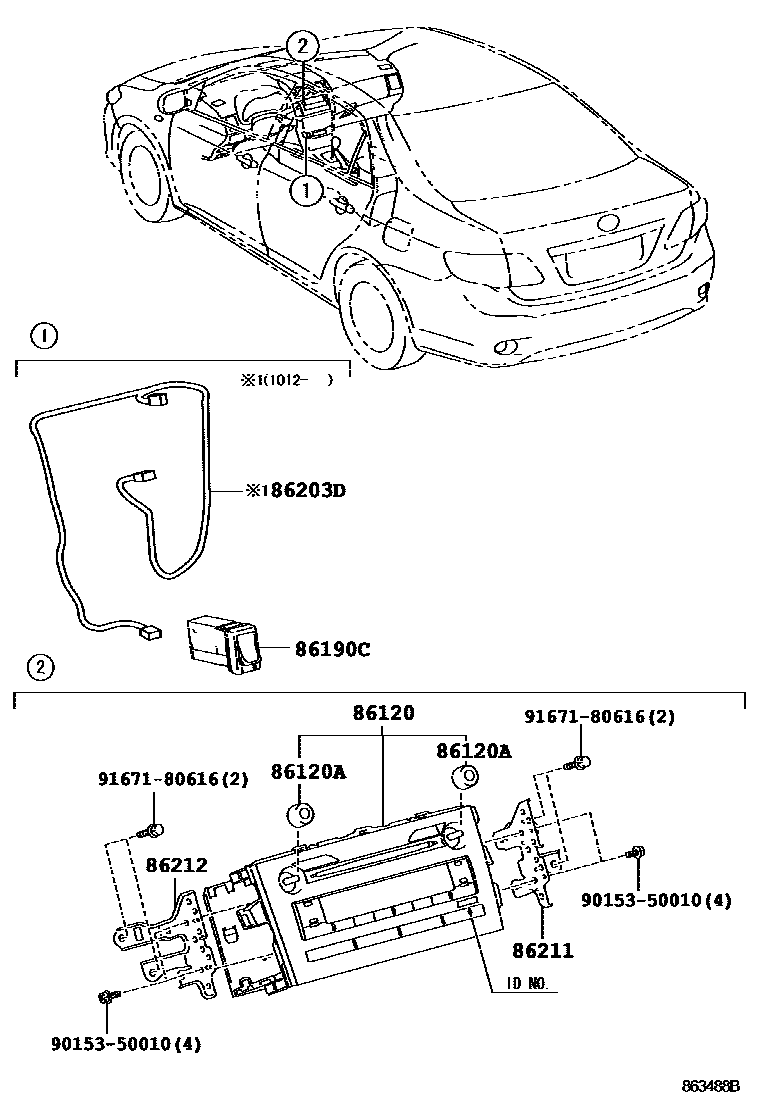

RADIO RECEIVER & AMPLIFIER & CONDENSER

86120RECEIVER ASSY, RADIO

main86120-12E30i201012-201308

PANASONIC,ID=518AQ

main86120-12F90i201112-201207

PANASONIC,ID=518C4; PANASONIC,ID=518C4,KOREA SPEC&AUDIO-AVN 6SPEAKER(EXTRA)

main86120-12B40supersedes 86120-12B30i200712-200901

MATSUSHITA, ID=51842,AUDIO-AM/FM CD CHANGER 6SPEAKER

main86120-12D20supersedes 86120-12D10i200901-201012

MATSUSHITA, ID=51899,AUDIO-AM/FM CD CHANGER 6SPEAKER

main86120-12E50i201112-201308

PANASONIC,ID=52880,KOREA SPEC&AUDIO-AM/FM CD 6SPEAKER(EXTRA)

main86120-12E90i201012-201112

PANASONIC,ID=518AV; PANASONIC,ID=518AV,KOREA SPEC&AUDIO-AVN 6SPEAKER(EXTRA)

main86120-12F20supersedes 86120-12E90i201012-201112

PANASONIC,ID=518B5,AUDIO-AM/FM SDARS CD BLUETOOTH 6SPEAKER(EXTRA)

86120AKNOB, RADIO RECEIVER SWITCH

main90010-24132×2i200712-200901

main90010-24141×2i200901-201012

main90010-24123×2supersedes 90010-24145i201012-201112

KOREA SPEC

main90010-24145×2supersedes 90010-24149i201012-201112

KOREA SPEC&AUDIO-AVN 6SPEAKER(EXTRA)

main90010-24149×2supersedes 90010-24141i201112-201308

AUDIO-AM/FM CD 6SPEAKER(MULTI)

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-12020i200712-201012

main86190-52040supersedes 86190-53040i201012-201308

main86190-53040supersedes 86190-52040i201012-201112

AUDIO-AM/FM SDARS CD BLUETOOTH 6SPEAKER(EXTRA)

86203DWIRE, STEREO COMPONENT, NO.1

main86203-12421i201112-201308

AUDIO-AM/FM CD 6SPEAKER(MULTI)

main86203-12420i201012-201101

AUDIO-AM/FM SDARS CD BLUETOOTH 6SPEAKER(EXTRA)

86211BRACKET, RADIO, NO.1

main86211-12400i200712-201012

main86211-12450i201112-201308

86212BRACKET, RADIO, NO.2

main86212-12380i200712-201012

main86212-12440i201112-201308

9015350010

9167180616

8 parts on this diagram · 2 diagrams in section
