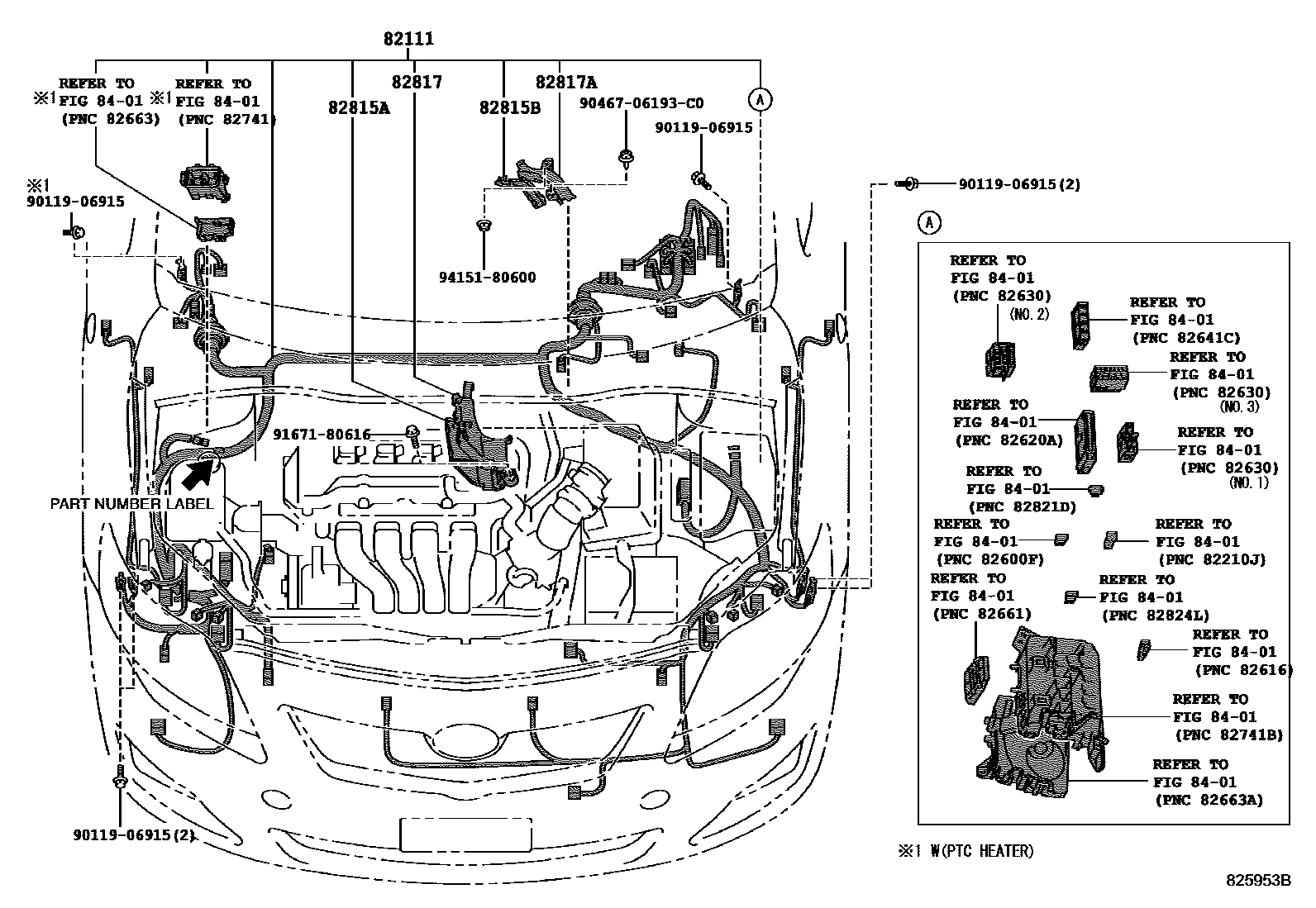

82111WIRE, ENGINE ROOM MAIN

main82111-1AF40supersedes 82111-1AS90iZRE142..JPP200712-200901

VSC-WITH(W/CUT OFF SWITCH)

main82111-1AJ70supersedes 82111-1AJ80iZRE142..JPP201102-201308

GUAM,SAIPAN SPEC

main82111-1AJ80iZRE142..JPP201012-201102

COLD AREA SPEC

main82111-1AK90iZRE142..JPP..LE201012-201102

KOREA SPEC&COLD AREA SPEC

main82111-1AS80supersedes 82111-1AS90iZRE142..JPP200712-200901

COLD AREA SPEC

main82111-1AS90iZRE142..JPP200712-200901

COLD AREA SPEC&VSC-WITH(W/CUT OFF SWITCH)

main82111-1EJ50iZRE142..JPP200901-201012

COLD AREA SPEC

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-12250iZRE142..JPP200712-201012

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-12270iZRE142..JPP200712-201012

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-12D50iZRE142..JPP200712-201012

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-12D70iZRE142..JPP200712-201012

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

9046706193C0

main90467-06193C0

9167180616

main91671-80616

9415180600

main94151-80600

10 parts on this diagram · 11 diagrams in section
