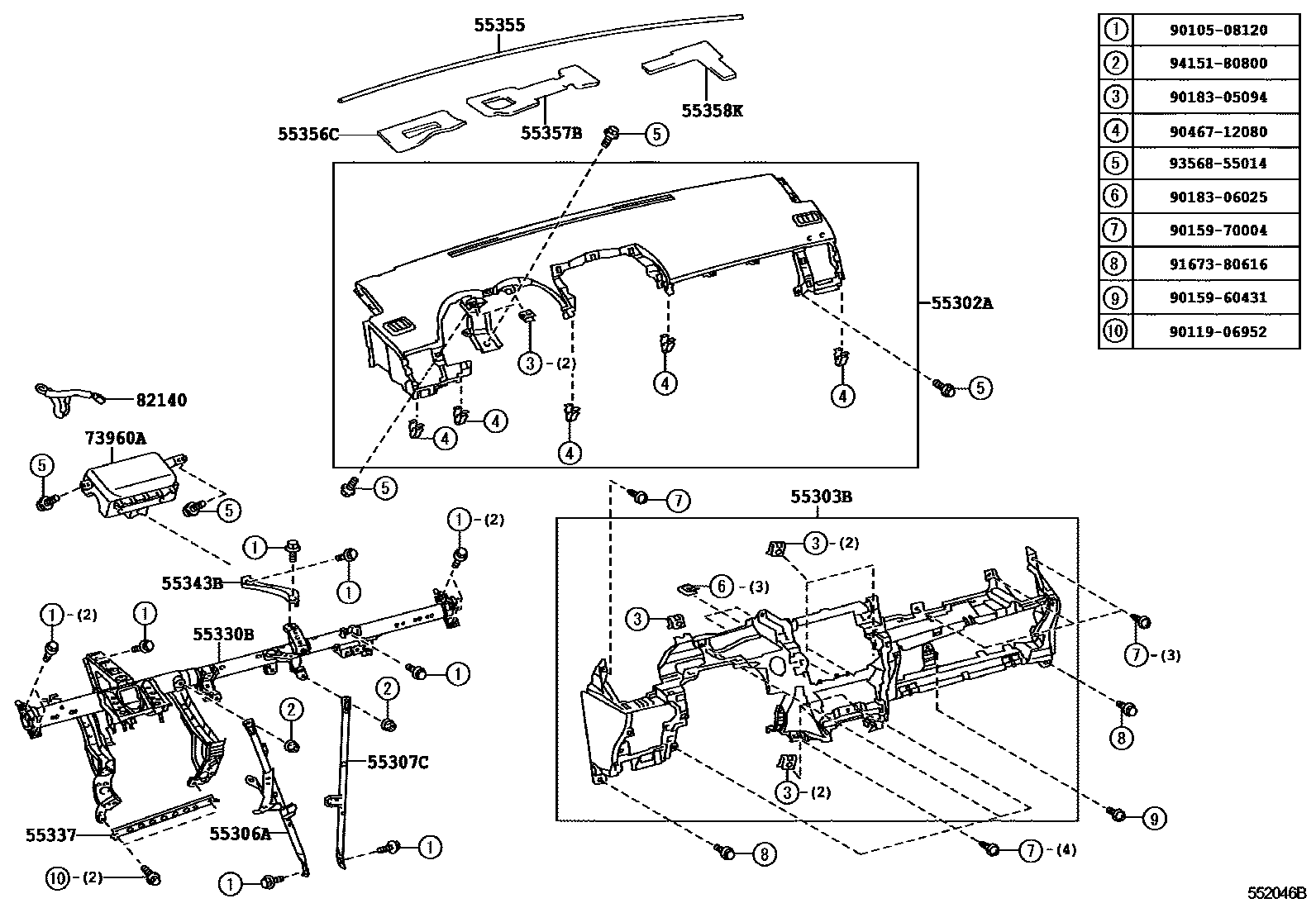

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1KOREA SPEC 0003 1DRIVER SIDE 0004 1CENTER 0005 1PASSENGER SIDE 0006 1DRIVER SIDE, W(ASH TRAY) 0007 1CENTER, W(ASH TRAY) 0008 1PASSENGER SIDE, W(ASH TRAY)

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-12190-B0iZRE142..JPP200712-200806

MD.GRAY,TRIM1#

main55302-12190-E0iZRE142..JPP200712-200806

ASH BROWN,TRIM4#

main55302-12191-B0iZRE142..JPP200807-201007

MD.GRAY,TRIM1#

main55302-12191-E0iZRE142..JPP200807-201007

ASH BROWN,TRIM4#

main55302-12192-B0iZRE142..JPP201008-201012

MD.GRAY,TRIM1#

main55302-12192-B1iZRE142..JPP201012-201308

DK.GRAY,TRIM1#,4#

main55302-12192-E0iZRE142..JPP201008-201012

ASH BROWN,TRIM4#

main55302-12121-B0iZRE142..JPP..LE201012-201308

KOREA SPEC,DK.GRAY,TRIM1#,4#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-12350-B1iZRE142..JPP201012-201308

GRAY,TRIM1#

main55303-12350-E0iZRE142..JPP200712-201012

GREGE,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12370iZRE142..JPP201012-201308

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12320iZRE142..JPP201012-201308

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-12770iZRE142..JPP200712-201012

55337REINFORCEMENT, INSTRUMENT PANEL SUB

main55337-12040iZRE142..JPP200712-201012

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-12070iZRE142..JPP201012-201308

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-12110iZRE142..JPP201012-201308

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-12150iZRE142..JPP200712-201012

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-12090iZRE142..JPP200712-201012

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-12080iZRE142..JPP200712-201012

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-12130iZRE142..JPP200712-201005

main73960-12160iZRE142..JPP201005-201012

main73960-12170iZRE142..JPP..LE201012-201308

KOREA SPEC

82140WIRE ASSY, INSTRUMENT PANEL

main82140-1A240iZRE142..JPP200712-201012

main82140-12A20iZRE142..JPP..LE201012-201308

KOREA SPEC

9010508120

main90105-08120

9011906952

main90119-06952

9015960431

main90159-60431

9015970004

main90159-70004

9018305094

main90183-05094

9018306025

main90183-06025

9046712080

main90467-12080

9167380616

main91673-80616

9356855014

main93568-55014

9415180800

main94151-80800

23 parts on this diagram · 8 diagrams in section
