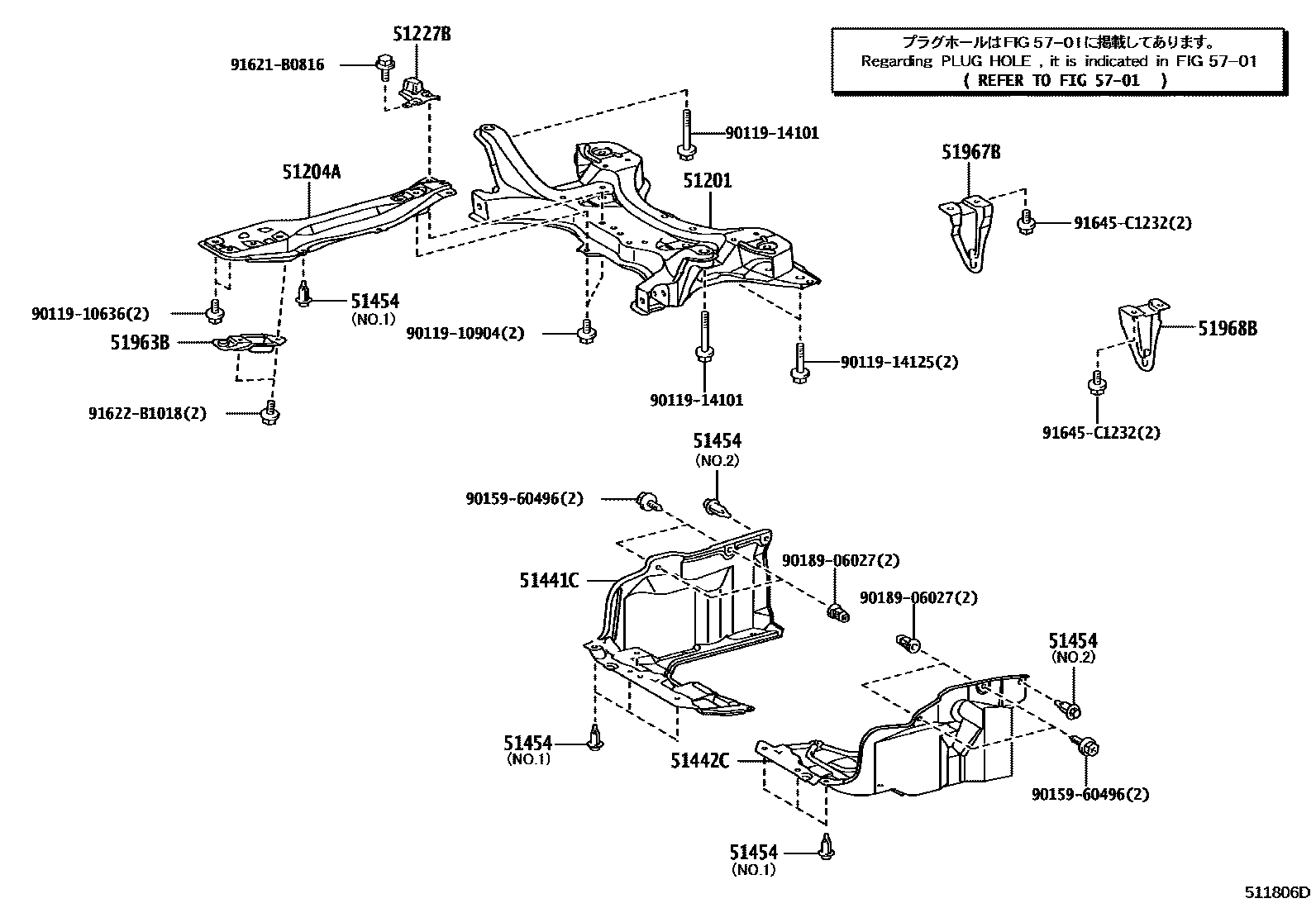

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20352iZRE142..JPP200712-201308

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-12150iZRE142..JPP200712-201308

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-12081iZRE142..JPP200712-201308

51441CCOVER, ENGINE UNDER, RH

main51441-12240iZRE142..JPP200712-201308

51442CCOVER, ENGINE UNDER, LH

main51442-12230iZRE142..JPP200712-201308

51454CLIP

main90467-07201iZRE142..JPP200712-201308

NO.1:REFER ILLUST.

main90467-07201iZRE142..JPP201002-201012

NO.2:REFER ILLUST.

main90467-07214iZRE142..JPP201012-201308

NO.2:REFER ILLUST.

51963BHOOK, TRANSPORT, FRONT RH

main51960-12080iZRE142..JPP200712-201308

51967BHOOK, TRANSPORT, REAR RH

main51967-12270iZRE142..JPP200712-201308

51968BHOOK, TRANSPORT, REAR LH

main51968-12200iZRE142..JPP200712-201308

5701HOLE PLUG

→ Go to FIG 57-01

9011910636

main90119-10636

9011910904

main90119-10904

9011914101

main90119-14101

9011914125

main90119-14125

9015960496

main90159-60496

9018906027

main90189-06027

91621B0816

main91621-B0816

91622B1018

main91622-B1018

91645C1232

main91645-C1232

19 parts on this diagram · 1 diagram in section
