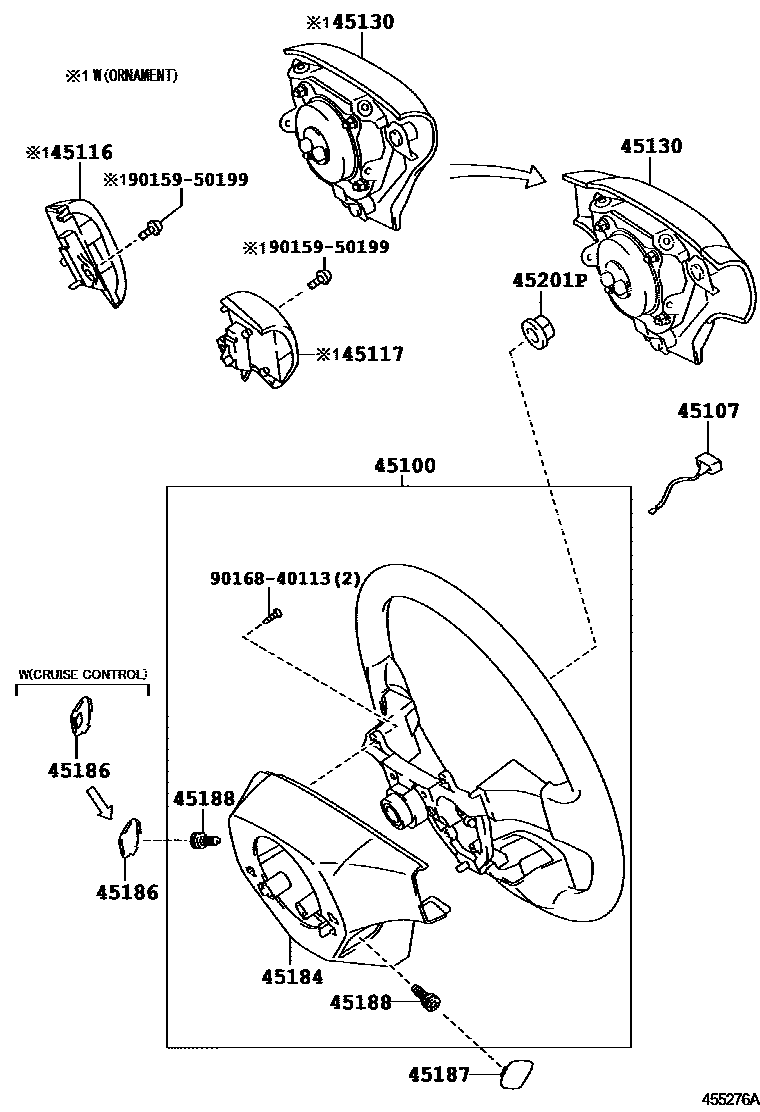

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,DK.GRAY,TRIM1#,4#
3-SPOKE,URETHANE,MD.GRAY,TRIM1#
3-SPOKE,URETHANE,ASH BROWN,TRIM4#
3-SPOKE,LEATHER,KOREA SPEC&AUDIO-AM/FM CD 6SPEAKER(EXTRA),DK.GRAY,TRIM1#,4#; 3-SPOKE,LEATHER,KOREA SPEC&AUDIO-AVN 6SPEAKER(EXTRA),DK.GRAY,TRIM1#,4#
45107WIRE SUB-ASSY, HORN BUTTON
AUDIO-AM/FM SDARS CD BLUETOOTH 6SPEAKER(EXTRA); CRUISE CONTROL-WITH; CRUISE CONTROL-WITH&AUDIO-AM/FM CD 6SPEAKER(EXTRA); CRUISE CONTROL-WITH&AUDIO-AM/FM SDARS CD BLUETOOTH 6SPEAKER(EXTRA)
45116ORNAMENT, STEERING WHEEL, NO.1
GRADE MARK-LE
45117ORNAMENT, STEERING WHEEL, NO.2
GRADE MARK-LE
45130BUTTON ASSY, HORN
MD.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
ASH BROWN,TRIM4#
GRADE MARK-LE,MD.GRAY,TRIM1#; MD.GRAY,TRIM1#
DK.GRAY,TRIM1#,4#
ASH BROWN,TRIM4#; GRADE MARK-LE,ASH BROWN,TRIM4#
45184COVER, STEERING WHEEL BOSS, LOWER
DK.GRAY,TRIM1#,4#
MD.GRAY,TRIM1#
ASH BROWN,TRIM4#
45186COVER, STEERING WHEEL, LOWER NO.2
CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4#
CRUISE CONTROL-WITH,MD.GRAY,TRIM1#
CRUISE CONTROL-WITH,ASH BROWN,TRIM4#
GUAM,SAIPAN SPEC&CRUISE CONTROL-WITHOUT,DK.GRAY,TRIM1#,4#
45187COVER, STEERING WHEEL, LOWER NO.3
DK.GRAY,TRIM1#,4#
MD.GRAY,TRIM1#
ASH BROWN,TRIM4#
45188SCREW, STEERING WHEEL PAD ATTACHING
L=18
45201PNUT, STEERING WHEEL SET
9015950199
main90159-50199
9016840113
main90168-40113
12 parts on this diagram · 2 diagrams in section
