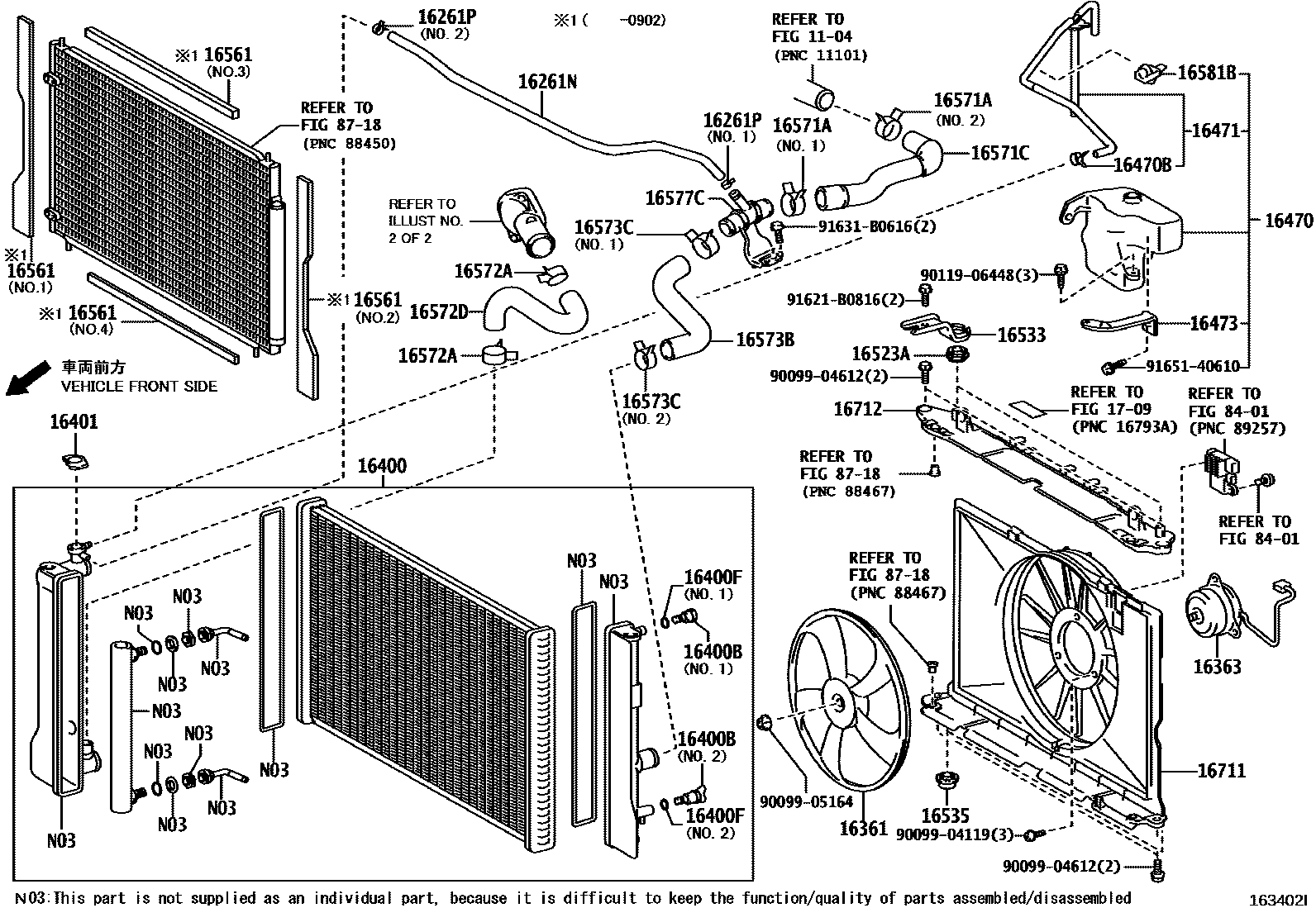

RADIATOR & WATER OUTLET

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

16261HOSE, WATER BY-PASS

main16261-37021200712-201101

main16261-37022201012-201308

16261NHOSE, WATER BY-PASS, NO.2

main16261-22110200712-201207

main16261-22111201207-201308

16261PCLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-15022200712-201308

main96136-41901201207-201308

16361FAN

main16361-21110200712-201308

16363MOTOR, COOLING FAN

main16363-22120200712-201308

16400RADIATOR ASSY

main16410-22160200712-201308

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280200712-201308

main16417-28530200712-201308

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-20290200712-201308

main16492-21050200712-201308

16401CAP SUB-ASSY, RADIATOR

main16401-20353200807-201308

main16401-72090200712-200806

16470TANK ASSY, RADIATOR RESERVE

main16470-22091200712-201308

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90466-11003200712-201207

16471CAP SUB-ASSY, RESERVE TANK

main16405-22060200712-201308

16473SUPPORT(FOR RADIATOR RESERVE TANK)

main16473-64260200712-201308

16523ACUSHION, RADIATOR SUPPORT

main16523-21050200712-201308

16533SUPPORT, RADIATOR, UPPER

main16533-22070200712-201308

16535SUPPORT, RADIATOR, LOWER

main16535-21090200712-200906

main16535-21091200907-201308

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-22040200712-200902

main16561-22050200712-200902

main16561-22060200712-200902

main16561-22070200712-200902

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main96136-43901200712-201308

main96136-44301200712-201308

16571CHOSE, RADIATOR, NO.1

main16571-37100200712-201308

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main96136-44301200712-201308

16572DHOSE, RADIATOR, NO.2

main16572-37090200712-201308

16573BHOSE, RADIATOR, NO.3

main16573-22040200712-201308

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90466-35001200712-201308

main96136-44301200712-201308

16577CPIPE, RADIATOR

main16577-22030200712-201207

main16577-22031201207-201308

16581BCLAMP, HOSE(FOR RADIATOR HOSE)

main16581-22130200712-201308

16711SHROUD, FAN

main16711-22191200712-201308

16712SHROUD, FAN, NO.2

main16712-22050200712-201308

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

9009904119

main90099-04119

9009904612

main90099-04612

9009905164

main90099-05164

9011906448

main90119-06448

91621B0816

main91621-B0816

91631B0616

main91631-B0616

9165140610

main91651-40610

38 parts on this diagram · 2 diagrams in section
