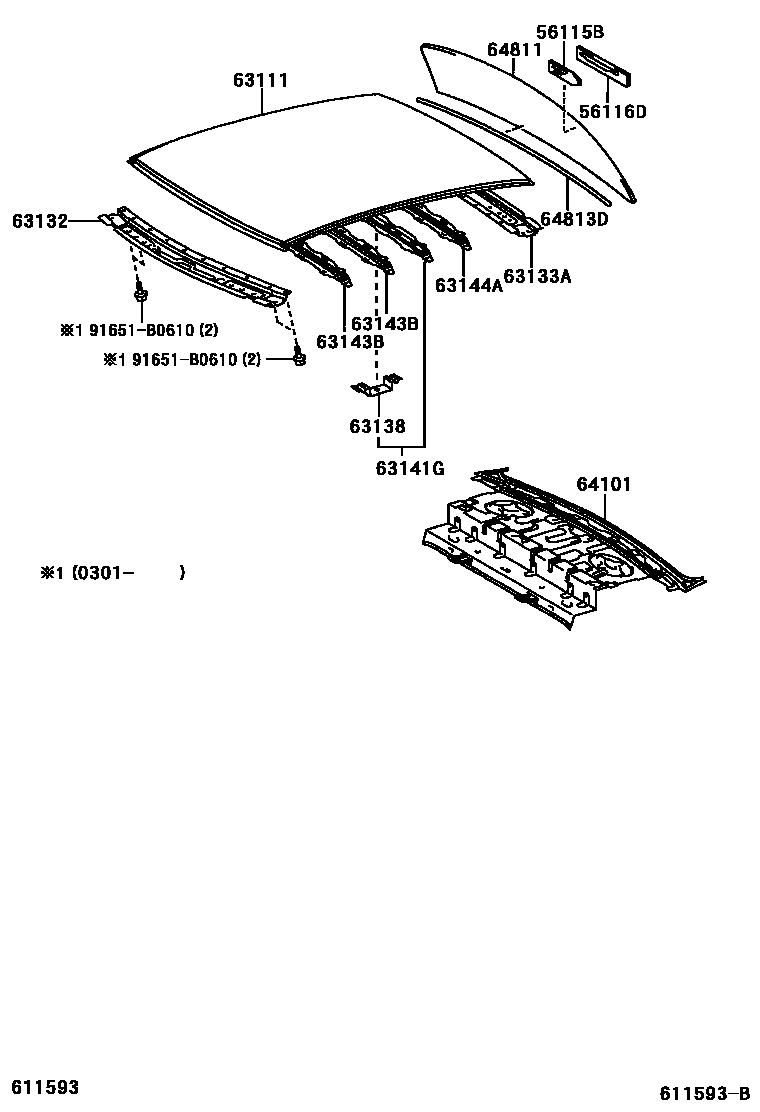

ROOF PANEL & BACK WINDOW GLASS

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30100iZZE130..JPP..4FC..USA200204-200405

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

63111PANEL, ROOF

main63111-12800iZZE130..JPP..4FC..USA200204-200405

63132PANEL, WINDSHIELD HEADER, INNER

main63132-12261iZZE130..JPP200304-200405

PLANT NO. B11

main63132-12310iZZE130..JPP200204-200304

main63132-12310iZZE130..JPP200304-200405

PLANT NO. A31-A32

63133AFRAME, BACK WINDOW, UPPER

main63133-12260iZZE130..JPP200304-200405

PLANT NO. A31-A32

main63133-12260iZZE130..JPP200204-200304

main63133-12271iZZE130..JPP200304-200405

PLANT NO. B11

63138BRACKET, DOME LAMP, NO.2

main63138-02010iZZE130..JPP200204-200405

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63106-02010iZZE130..JPP..4FC..USA200204-200405

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-12100iZZE130..JPP..4FC..USA200204-200405

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-12080iZZE130..JPP..4FC..USA200204-200405

64101PANEL SUB-ASSY, UPPER BACK

main64101-12820iZZE130..JPP200204-200405

64811GLASS, BACK WINDOW

main64811-12A10iZZE130..JPP200405

*TEM,T=3.1,GREEN

main64811-1E350iZZE130..JPP..4FC..USA200204-200405

*TEM,T=3.1,GREEN

64813DDAM, BACK WINDOW GLASS ADHESIVE

main56117-12240iZZE130..JPP..4FC..USA200204-200405

main56117-47010iZZE130..JPP200405

91651B0610

main91651-B0610

13 parts on this diagram · 1 diagram in section
