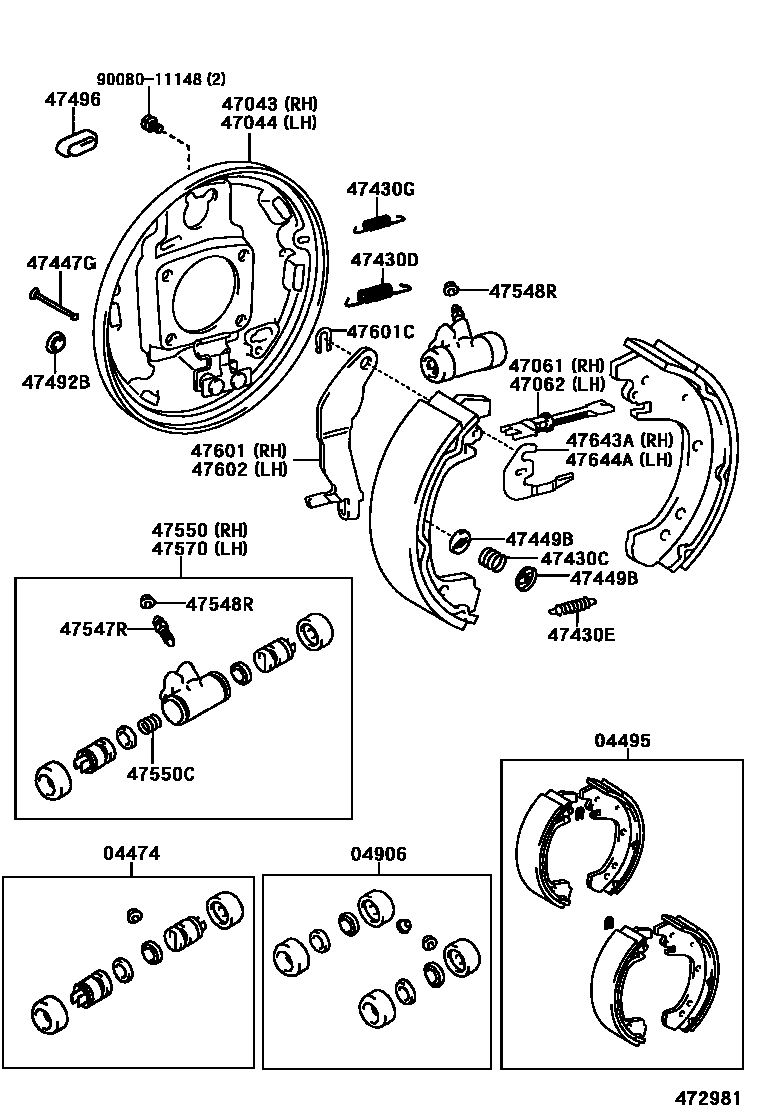

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-52020×2iZZE130..JPP200405

04495SHOE KIT, REAR BRAKE

main04495-02050iZZE130..JPP200204-200304

MARK NAC LN521

main04495-52040iZZE130..5F;ZZE130..CND; ZZE130..JPP..4FC..USA200304-200405

MARK NBK LN521

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iZZE130..JPP200502

main04906-42020iZZE130..JPP200405-200502

main04906-52020iZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-02040iZZE130..JPP200204-200304

main47043-20140iZZE130..5F;ZZE130..CND; ZZE130..JPP..4FC..USA200304-200405

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-02040iZZE130..JPP200204-200304

main47044-20140iZZE130..5F;ZZE130..CND; ZZE130..JPP..4FC..USA200304-200405

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-02030iZZE130..JPP200204-200304

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-02030iZZE130..JPP200204-200304

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90080-50336×4iZZE130..JPP200204-200304

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90080-50337×2iZZE130..JPP200204-200304

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90080-50339×2iZZE130..JPP200204-200304

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90080-50338×2iZZE130..JPP200204-200304

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-02040×4iZZE130..JPP200204-200304

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-02030×4iZZE130..JPP200204-200304

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-06020×2iZZE130..JPP200204-200304

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-02010×2iZZE130..JPP200204-200304

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iZZE130..JPP..4FC..USA; ZZE130..JPP..5F;ZZE130..JPP..CND200204-200405

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iZZE130..JPP200204-200304

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-02100iZZE130..JPP200204-200304

main47550-20211iZZE130..5F;ZZE130..CND; ZZE130..JPP..4FC..USA200304-200405

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60014×2iZZE130..JPP200204-200304

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-02020iZZE130..JPP200204-200304

main47570-20101iZZE130..5F;ZZE130..CND; ZZE130..JPP..4FC..USA200304-200405

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-47010iZZE130..5F;ZZE130..CND; ZZE130..JPP..4FC..USA200304-200405

main47601-52100iZZE130..JPP200512

main47611-02060iZZE130..JPP200204-200304

47601CWASHER, C(FOR REAR BRAKE)

main90080-21020×2iZZE130..JPP200204-200304

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-47010iZZE130..5F;ZZE130..CND; ZZE130..JPP..4FC..USA200304-200405

main47602-52100iZZE130..JPP200512

main47612-02060iZZE130..JPP200204-200304

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-02030iZZE130..JPP200204-200304

main47643-47010iZZE130..5F;ZZE130..CND; ZZE130..JPP..4FC..USA200304-200405

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-02030iZZE130..JPP200204-200304

main47644-47010iZZE130..5F;ZZE130..CND; ZZE130..JPP..4FC..USA200304-200405

9008011148

main90080-11148

26 parts on this diagram · 2 diagrams in section
