SIDE MEMBER

0001 1 0002 1 0003 1

58741BPROTECTOR, QUARTER PANEL, RH

main58741-12040iAE9#..SED;AE95..SR5; AE9#..WG..DX198908-199206

FR; W(MUD GUARD)

main58741-12060iAE9#..WG198801-198808

FR; W(MUD GUARD)

main58741-13010iAE9#..WG198801-198908

RR

58742BPROTECTOR, QUARTER PANEL, LH

main58741-12060iAE92..SED198712-198808

main58742-12040iAE9#..SED; AE9#..WG198808-198908

FR; W(MUD GUARD)

main58743-12010iAE9#..WG..DX198908-199206

RR

59198SEAL, NOISE SHUTTER

main59198-12010iAE9#198708-199206

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61021-12640iAE9#..SED..(DX,LE)198708-199206

main61021-12780iAE92..STD198908-199206

main61021-13050iAE92..WG..CBR;AE92..WG..CND..EFI198710-199206

main61021-13051iAE92..WG..USA198908-199206

main61021-1A070iAE95..WG..CND198908-199009

main61021-1A071iAE95..WG..USA198908-199009

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61022-12650iAE9#..SED..(DX,LE)198708-199206

main61022-12790iAE92..STD198908-199206

main61022-13050iAE92..WG..CBR;AE92..WG..CND..EFI198710-199206

main61022-13051iAE92..WG..USA198908-199206

main61022-1A080iAE95..WG..CND198908-199009

main61022-1A081iAE95..WG..USA198908-199009

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61035-12040iAE9#198708-199206

61211RAIL, ROOF SIDE, OUTER RH

main61211-12220iAE9#..SED198708-199206

main61211-12270iAE95..WG198802-199009

main61211-13040iAE92..WG198710-199206

61212RAIL, ROOF SIDE, OUTER LH

main61212-12220iAE9#..SED198708-199206

main61212-12270iAE95..WG198802-199009

main61212-13040iAE92..WG198710-199206

61231RAIL, ROOF SIDE, INNER RH

main61231-12430iAE9#..SED198708-199206

main61231-12660iAE95..WG198802-199009

main61231-13080iAE92..WG198710-199206

61232RAIL, ROOF SIDE, INNER LH

main61232-12330iAE9#..SED198708-199206

main61232-12530iAE95..WG198802-199009

main61232-13060iAE92..WG198710-199206

61265ACHANNEL, ROOF DRIP SIDE, CENTER RH

main61265-12110iAE9#..SED198708-199206

main61265-12170iAE95..WG198802-199009

main61265-13020iAE92..WG198710-199206

61266ACHANNEL, ROOF DRIP SIDE, CENTER LH

main61266-12110iAE9#..SED198708-199206

main61266-12170iAE95..WG198802-199009

main61266-13020iAE92..WG198710-199206

61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-12030×2iAE9#..SED..(DX,LE)198708-199206

main61281-12050×2iAE95..WG198802-199009

61283ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH

main61283-12030iAE9#..SED..(DX,LE)198708-199206

main61283-12060iAE95..WG198802-199009

61284ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH

main61284-12030iAE9#..SED..(DX,LE)198708-199206

main61284-12060iAE95..WG198802-199009

61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH

main61301-12190iAE9#..CND198908-199206

main61301-12191iAE9#..USA198908-199206

61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH

main61302-12250iAE9#198708-198908

main61302-12271iAE9#..USA; AE92..LE..CND198908-199206

W(*PW) OR W(*EL)

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61307-12030iAE9#..SED198708-198908

main61307-12031iAE9#..SED..USA198908-199206

main61307-12050iAE95..WG..USA198908-199009

main61307-12060iAE95..WG..CND198908-199009

main61307-13020iAE92..WG..CBR;AE92..WG..CND..EFI198710-199206

main61307-13021iAE92..WG..USA198908-199206

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61308-12030iAE9#..SED..CND198908-199206

main61308-12031iAE9#..SED..USA; AE92..LE..CND198908-199206

W(*PW & *EL)

main61308-12050iAE95..WG..USA198908-199009

main61308-12060iAE95..WG198802-198908

main61308-13030iAE92..WG..CBR;AE92..WG..CND..EFI198710-199206

main61308-13031iAE92..WG..USA198908-199206

61388APLATE, CENTER BODY PILLAR END, RH

main61388-12010×2iAE9#198708-198912

61411PANEL, ROCKER, OUTER RH

main61411-12370iAE9#198708-199206

61412PANEL, ROCKER, OUTER LH

main61412-12360iAE9#198708-199206

61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH

main61413-12040iAE9#198708-199206

61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH

main61414-12060iAE9#198708-199206

61611PANEL, QUARTER, RH

main61601-13907iAE92..WG198710-199206

main61601-1A901iAE9#..SED198708-199206

main61601-1E910iAE95..WG198802-199009

61612PANEL, QUARTER, LH

main61602-13910×2iAE92..WG198710-198908

main61602-1A900iAE9#..SED..(DX,LE)198708-199206

main61602-1E917iAE95..WG198802-199009

main61602-1E919iAE92..SED..DX..USA198901-198908

STD PACKAGE

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-12280iAE9#..SED198708-198908

main61621-12281iAE9#..SED198910-199206

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-12280iAE9#..SED198708-198908

main61622-12281iAE9#..SED198910-199206

61627BEXTENSION, QUARTER PANEL, UPPER REAR RH

main61627-12020iAE9#..SED198708-199206

61628BEXTENSION, QUARTER PANEL, UPPER REAR LH

main61628-12020iAE9#..SED198708-198908

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-12230iAE92..SED198708-198808

main61631-13060iAE9#..WG198710-199206

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-12230iAE92..SED..(DX,STD)..EFI198808-199008

main61632-12270iAE95..WG198802-199009

main61632-12280iAE95..SED198808-199008

main61632-13050iAE92..WG198710-199206

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-12400iAE95..WG198808-199009

main61607-12440iAE95198802-198808

main61607-12908iAE92..SED..DX198708-198808

main61607-12909iAE92..LE; AE92..SED..DX199008-199206

W(REAR SPLIT FOLD DOWN SEAT)

main61607-12910iAE92..LE198708-198808

main61607-12911iAE92..SED..(DX,STD)198808-199206

main61607-12913iAE95..SED198808-199008

main61607-13050iAE92..WG198710-199206

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-12420iAE95..WG198808-199009

main61608-12460iAE95198802-198808

main61608-12906iAE92..SED..DX198708-198808

main61608-12907iAE92..LE; AE92..SED..DX199008-199206

W(REAR SPLIT FOLD DOWN SEAT)

main61608-12908iAE92..LE198708-198808

main61608-12909iAE92..SED..(DX,STD)198808-199206

main61608-12911iAE95..SED198808-199008

main61608-13050iAE92..WG198710-199206

61641BGUSSET, QUARTER WHEEL HOUSE, RH

main61641-12040iAE92..CBR;AE9#..(DX,SR5,STD)..EFI198708-199008

61642BGUSSET, QUARTER WHEEL HOUSE, LH

main61642-12040iAE92..CBR;AE9#..(DX,SR5,STD)..EFI198708-199008

61667DSEAL, QUARTER PANEL

main61667-12050×2iAE92;AE95..SED198708-199206

61731BPANEL, ROOF SIDE, INNER RH

main61731-12420iAE92..SED..CBR;AE9#..SED..(DX,STD)..EFI198708-199008

main61731-12490iAE95..WG198802-199009

main61731-13250iAE92..WG198710-199206

61732BPANEL, ROOF SIDE, INNER LH

main61732-12380iAE92..SED199008-199206

main61732-12450iAE95..WG198802-199009

main61732-13250iAE92..WG198710-199206

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-12290iAE95..WG198802-199009

main61735-12902iAE92..SED199008-199206

main61735-13050iAE92..WG198710-199206

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-12260iAE95..WG198802-199009

main61736-12902iAE92..SED..CBR;AE92..SED..(DX,STD)..EFI198708-199008

main61736-12904iAE95..SED198808-199008

main61736-13050iAE92..WG198710-199206

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-12100iAE92..SED..CBR;AE9#..SED..(DX,STD)..EFI198708-199008

main61747-12160iAE95..WG198802-199009

main61747-13010iAE92..WG198710-199206

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-12100iAE92..SED199008-199206

main61748-12160iAE95..WG198802-199009

main61748-13040iAE92..WG198710-199206

61824PLATE, NOISE CONTROL, NO.1

main61824-12020×4iAE92198708-198710

W(SUN ROOF)

main61824-12040×4iAE9#..SED198808-199206

61825APLATE, NOISE CONTROL, NO.2

main61825-12010×4iAE92..WG198710-199206

61826APLATE, NOISE CONTROL, NO.3

main61826-12010×2iAE9#..SED198708-199206

main61826-12020×2iAE92..WG198710-199206

main61826-12040×2iAE95..WG198802-199009

61827APLATE, NOISE CONTROL, NO.4

main61827-12010×4iAE9#..SED198708-199206

main61827-12020×2iAE95..WG198802-199009

61838BPLATE, NOISE CONTROL, NO.5

main61838-12010×2iAE9#198708-199206

62151BPAD, COWL SIDE SILENCER

main62151-12100×4iAE9#198708-199106

main62151-12130×4iAE92199106-199206

85X85

62475BSEAL, ROOF SIDE, INNER

main62475-12050×2iAE95..WG198802-199009

62553DPAD, PILLAR, NO.3

main62553-12120×2iAE9#198708-199206

62903DUCT SUB-ASSY, QUARTER VENTILATOR, RH

main62903-12120iAE92..SED..CBR;AE9#..SED..(DX,STD)..EFI198708-199008

62904DUCT SUB-ASSY, QUARTER VENTILATOR, LH

main62904-12130iAE92..SED..CBR;AE9#..SED..(DX,STD)..EFI198708-199206

66243CPROTECTOR, REAR BODY, NO.1

main53393-12020×2iAE92..WG198908-199206

main66243-20010×2iAE95..WG198905-199009

67533DPAD, FRONT DOOR LOWER FRAME GARNISH, RH

main67533-12010×2iAE9#198708-199206

9010508120

main90105-08120

9017908102

main90179-08102

9095001038

main90950-01038

9095001056

main90950-01056

9095001126

main90950-01126

9095001130

main90950-01130

9095001327

main90950-01327

9095006137

main90950-06137

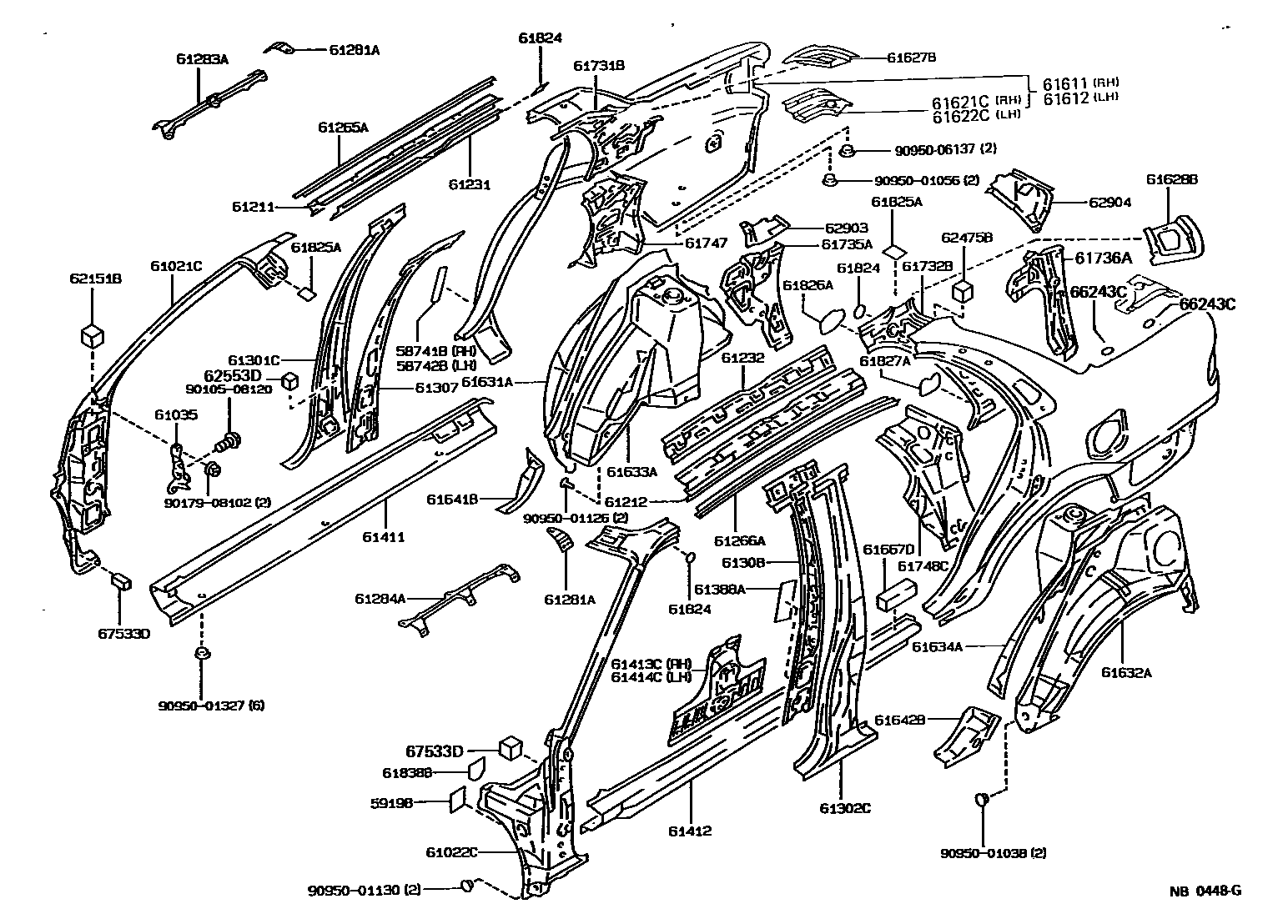

63 parts on this diagram · 3 diagrams in section
