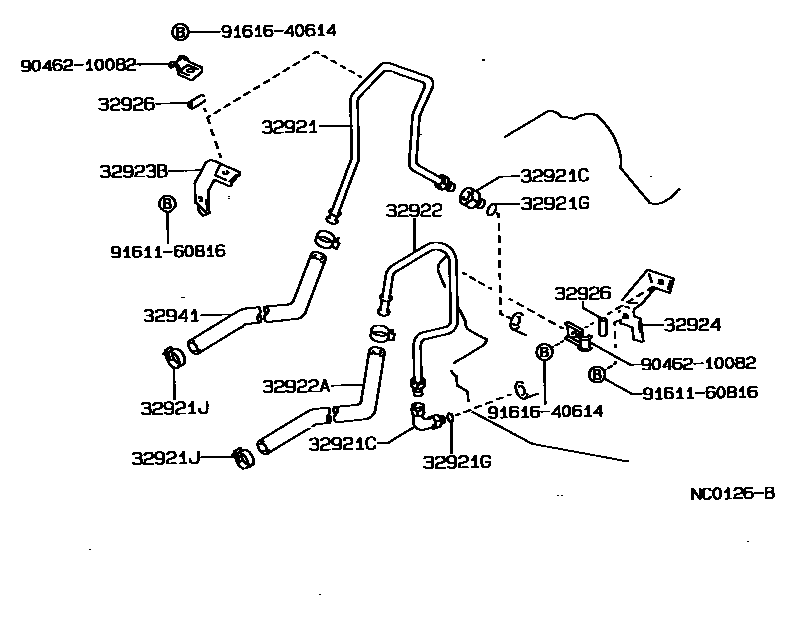

OIL COOLER & TUBE (ATM)

0001 1A131L 0002 1A240L,A241H

32921TUBE, OIL COOLER INLET, NO.1

main32921-12260iAE95..4FC198802-198910

main32921-12261iAE95..4FC198910-199009

main32921-12350iAE92..4FC198708-198910

main32921-12351iAE92..4FC198910-199206

main32921-12360iAE92..3FC198708-198910

main32921-12361iAE92..3FC198910-199206

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iAE92..3FC; AE92..4FC; AE95..4FC198708-199206

INLET; OUTLET

main90407-14003iAE92..3FC199001-199206

OUTLET

main90407-16015iAE95..4FC198802-199009

INLET

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iAE92..ATM198708-199206

main90301-15004iAE95..4FC198802-198908

ID=15.41

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039×6iAE95..4FC198802-198908

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-12230iAE95..4FC198802-198910

main32922-12231iAE95..4FC198910-199009

main32922-12280iAE92..4FC198708-198910

main32922-12281iAE92..4FC198910-199206

main32922-12290iAE92..3FC198708-198910

main32922-12291iAE92..3FC198910-199206

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15030iAE9#..4FC198908-198910

main90445-15034iAE92..3FC198708-198910

main90445-15050iAE92..3FC198910-199206

main90445-15051iAE9#..4FC198910-199206

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-12150iAE9#..4FC198708-199206

main32923-12160iAE92..3FC198708-199206

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-12040iAE92..3FC198708-199206

main90462-12085iAE9#..4FC198708-199206

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-22010×2iAE95..4FC198811-199009

L=35,ID=8

main32926-30011×4iAE95..4FC198802-198811

L=25,ID=8

32941HOSE, OIL COOLER INLET, NO.1

main32941-12130iAE92..3FC198708-198910

main32941-12131iAE92..3FC198910-199206

main32941-12140iAE92..4FC198708-198910

main32941-12141iAE92..4FC198910-199206

main32941-12190iAE95..4FC198802-198910

main32941-12191iAE95..4FC198910-199009

9046210082

main90462-10082

9161160816

main91611-60816

9161640614

main91616-40614

13 parts on this diagram · 2 diagrams in section
