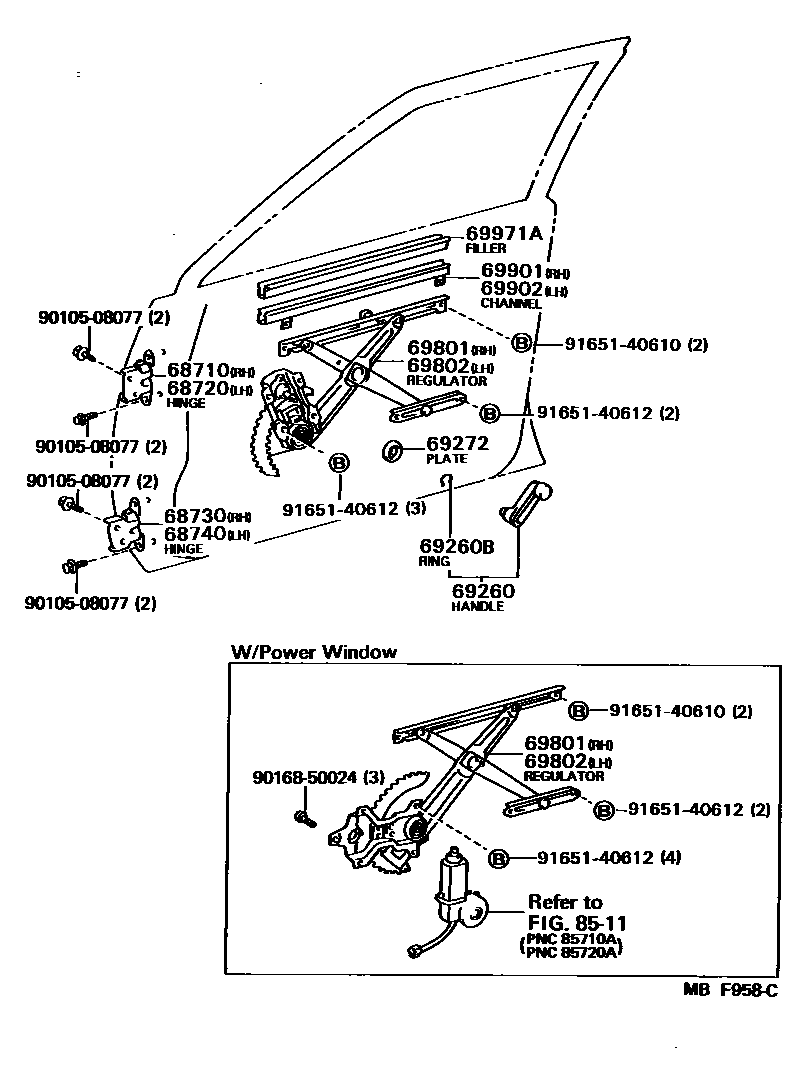

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12080iAE82,CE80198308-198707

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12080iAE82,CE80198308-198707

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-32010iAE82,CE80198308-198707

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-32010iAE82,CE80198308-198707

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-10×2iAE82,CE80198505-198508

BROWN,SEPIA BROWN,TRIM4#

main69260-10040-33×2iAE82,CE80198505-198508

GRAY,SHADOW GRAY,TRIM1#

main69260-10040-44×2iAE82..DX,LE198508-198707

BLUE,BLUE,TRIM8#

main69260-12060-03×2iAE82,CE80198308-198401

GRAY,GRAY,TRIM1#

main69260-12060-04×2iAE82,CE80198308-198401

BLUE,BLUE,TRIM8#

main69260-12060-05×2iAE82,CE80198308-198401

BEIGE,BEIGE,TRIM3#

main69260-14020-04×2iAE82,CE80198401-198505

BLUE,BLUE,TRIM8#

main69260-14020-12×2iAE82,CE80198401-198408

MAROON,RED/MAROON,TRIM3#

main69260-14020-23×2iAE82,CE80198308-198401

GRAY,GRAY,TRIM1#

main69260-14020-25×2iAE82,CE80198308-198401

BEIGE,BEIGE,TRIM3#

main69260-14020-33×2iAE82,CE80198401-198505

GRAY,GRAY,TRIM1#

main69260-14020-34×2iAE82,CE80198308-198401

BLUE,BLUE,TRIM8#

main69260-14020-36×2iAE82,CE80198408-198505

BROWN,BROWN,TRIM4#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iAE82..DX,LE198508-198707

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-16010×2iAE82,CE80198308-198508

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12040iAE82..LE,LEL198508-198602

W/*PW

main69801-12080iAE82..LE,LEL198602-198707

W/*PW

main69810-12180iAE82..DX,LE198508-198602

W/O *PW

main69810-12250iAE82..DX,LE198602-198707

W/O *PW

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12040iAE82..LE,LEL198508-198602

W/*PW

main69802-12080iAE82..LE,LEL198602-198707

W/*PW

main69820-12170iAE82..DX,LE198508-198602

W/O *PW

main69820-12250iAE82..DX,LE198602-198707

W/O *PW

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-12130iAE82,CE80198308-198406

main69901-12150iAE82,CE80198406-198509

main69901-12151iAE82198509-198707

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69902-12080iAE82,CE80198308-198406

main69902-12090iAE82,CE80198406-198509

main69902-12091iAE82198509-198707

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-12040×2iAE82,CE80198406-198509

main69971-12060×2iAE82,CE80198308-198406

main69971-12070×2iAE82198509-198707

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010508077

main90105-08077

9016850024

main90168-50024

9165140610

main91651-40610

9165140612

main91651-40612

17 parts on this diagram · 1 diagram in section
