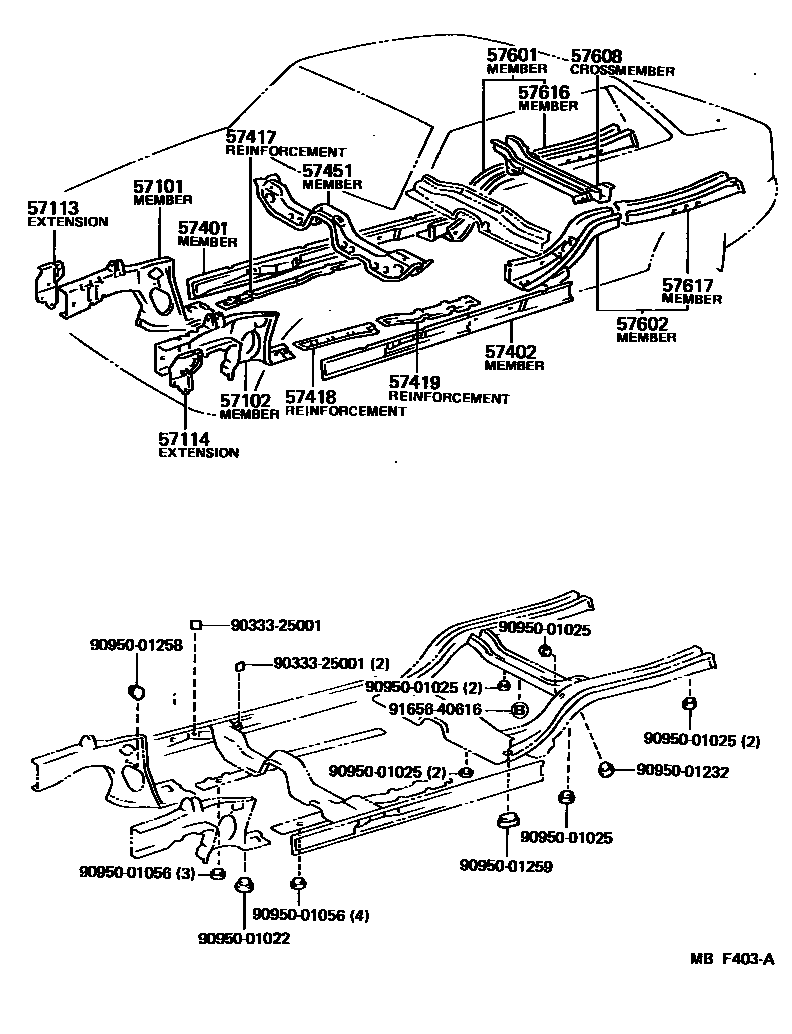

FLOOR SIDE MEMBER

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-12240iCE80198308-198508

main57101-12250iAE82198308-198609

main57101-12251iAE82198609-198707

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-12240iCE80198308-198508

main57102-12250iAE82198308-198707

57113EXTENSION, FRONT SIDE MEMBER, RH

main57105-12030iAE82,CE80198308-198707

57114EXTENSION, FRONT SIDE MEMBER, LH

main57106-12030iAE82,CE80198308-198707

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-12190iAE82,CE80198308-198707

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-12190iAE82,CE80198308-198707

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-12070iAE82,CE80198308-198707

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-20040iAE82,CE80198308-198707

57419REINFORCEMENT, FRONT FLOOR UNDER, LH NO.2

main57419-12020iAE82,CE80198308-198707

57451MEMBER, FRONT FLOOR CROSS

main57408-12040iAE82,CE80198308-198707

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-12360iCE80198308-198508

main57601-12390iAE82198308-198707

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-12330iAE82,CE80198308-198707

57608CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2

main57606-12050iAE82,CE80198308-198605

main57606-12090iAE82198605-198610

57616MEMBER, REAR FLOOR SIDE, REAR RH

main57615-12900iAE82,CE80198308-198707

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-12900iAE82,CE80198308-198707

9033325001

main90333-25001

9095001022

main90950-01022

9095001025

main90950-01025

9095001056

main90950-01056

9095001232

main90950-01232

9095001258

main90950-01258

9095001259

main90950-01259

9165640616

main91656-40616

23 parts on this diagram · 1 diagram in section
