RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1 0010 1 0011 1 0012 1

8202WIRING & CLAMP

→ Go to FIG 82-02

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

8604ANTENNA

→ Go to FIG 86-04

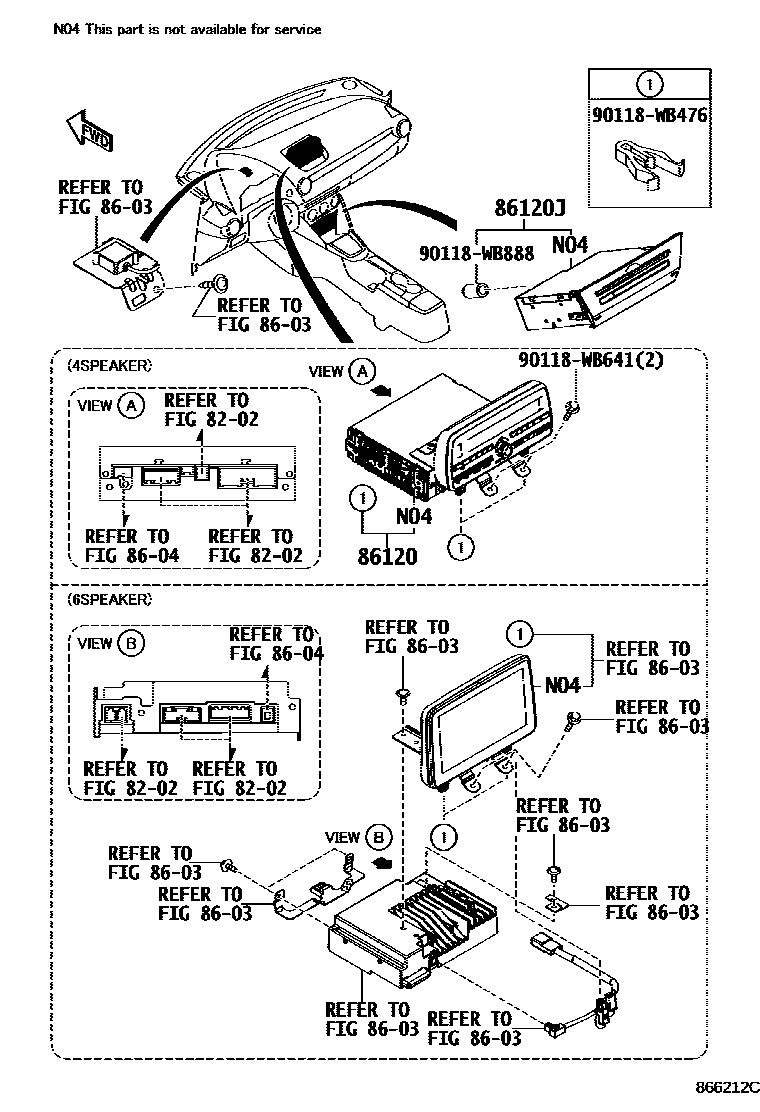

86120RECEIVER ASSY, RADIO

main86120-WB001iDB7P,DD1B..BASE..(CND,PUE)201506-201507

main86120-WB006iDB7P,DD1B..BASE..(CND,PUE)201507-201610

main86120-WB008iDB7P,DD1#..BASE..(CND,MXC,PUE)201610-201706

main86120-WB010iDAED1,DAEE1,DB7P,DD1#,DM0#..BASE..(CND,MXC,PUE)201706

86120JRECEIVER ASSY, RADIO

main86120-WB004iDB7P,DM0T..HI..PUE201506-201802

main86120-WB005iDB7P,DD1B,DM0S,0T..BASE..PUE201506-201805

main86120-WB011iDAEE1,DDF9,DM0T..HI..(MXC,PUE)201802

main86120-WB012iDM0V,0W..BASE201805-201808

90118WB476

main90118-WB476

90118WB641

main90118-WB641

90118WB888

main90118-WB888

8 parts on this diagram · 11 diagrams in section
