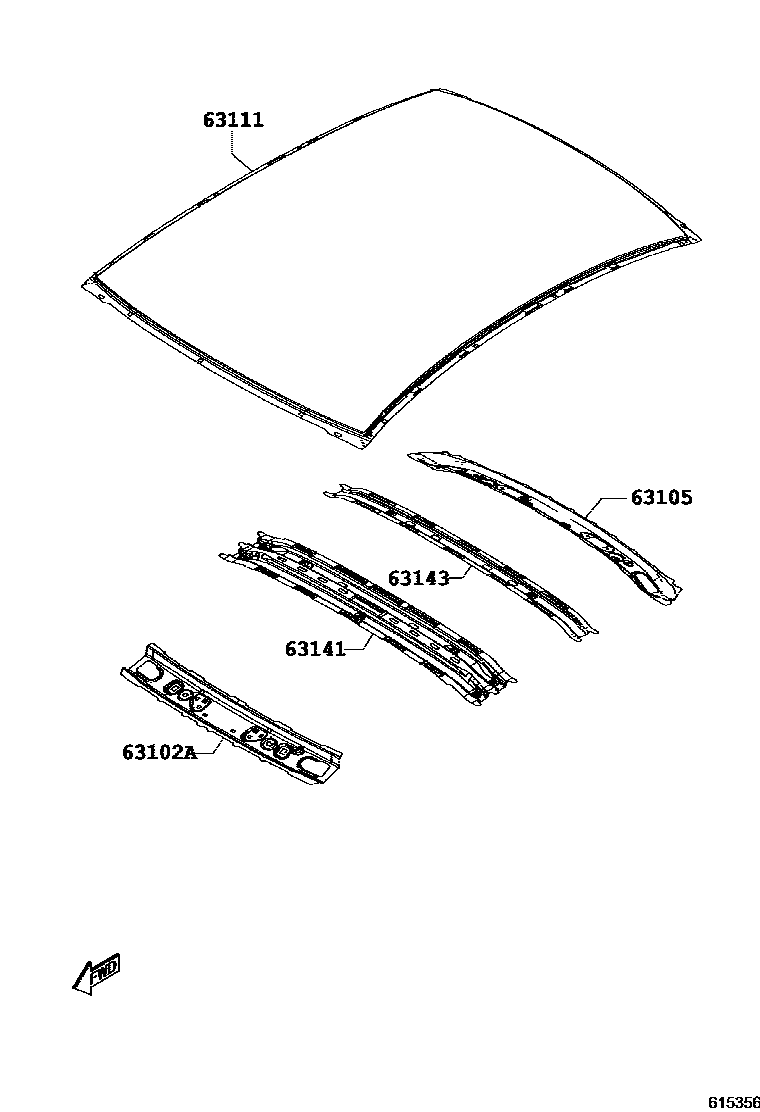

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1ROOF PANEL 0003 1ROOF PANEL 0004 1ROOF PANEL 0005 1ROOF PANEL 0006 1ROOF PANEL 0007 1ROOF PANEL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-WB001iDB7P,DD1B,DM0S,0T201506-201808

63105REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63133-WB001iDB7P,DD1B,DM0S,0T201506-201808

main63133-WB002iDAEB1,DAEC1201908

63111PANEL, ROOF

main63111-WB001iDB7P,DD1B,DM0S,0T201506-201808

main63111-WB002iDADW1,DAEA1,DDF4,5..USA201808

main63111-WB003iDAEB1,DAEC1201908

63141STRENGTH, ROOF PANEL SIDE

main63141-WB001iDADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T201506

main63141-WB002iDAED1,DAEE1,DD1C,1D,F8,F9,DM0V,0W201508

63143RAIL, BACK CORNER UPPER, RH

main63143-WB001iDB7P,DD1B,DM0S,0T201506-201808

main63143-WB002iDAEB1,DAEC1201908

5 parts on this diagram · 7 diagrams in section
