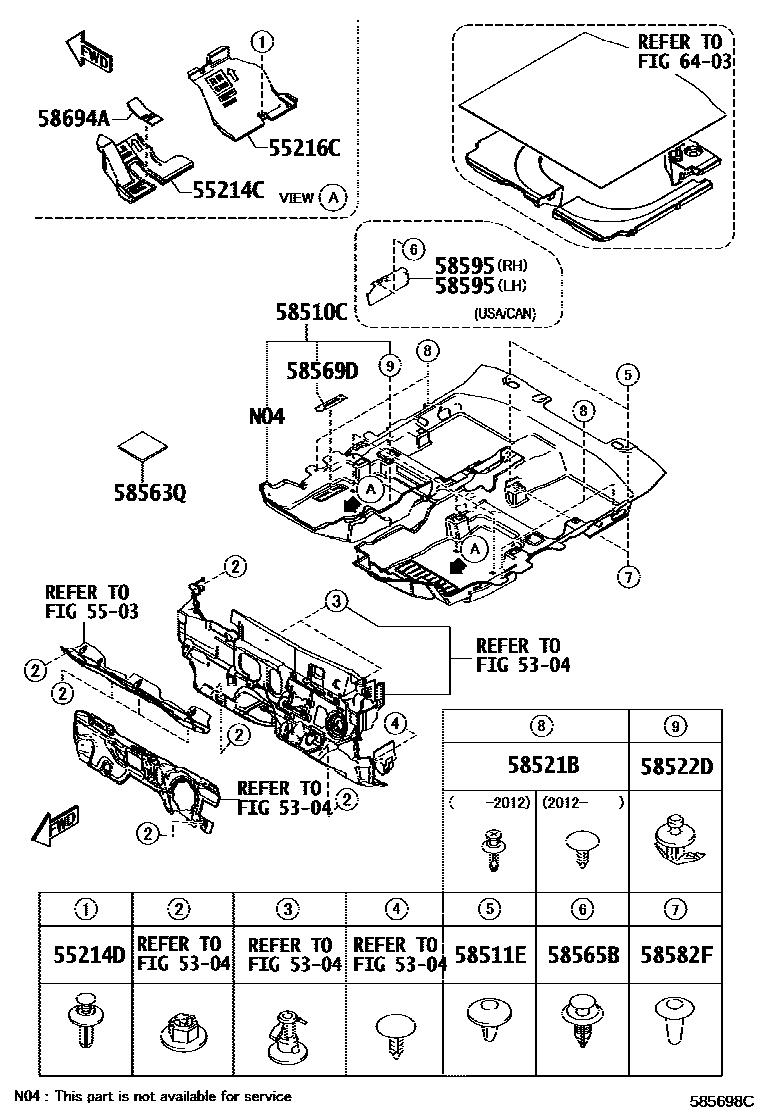

MAT & CARPET

0001 1 0002 1 0003 1

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-WB001iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W201508

55214DCLIP(FOR DASH PANEL INSULATOR PAD)

main90118-WB388iDB7P,DD1B,DM0S,0T201506-201808

55216CPAD, DASH PANEL INSULATOR, NO.4

main55216-WB001iDB7P,DD1B,DM0S,0T201506-201808

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-WB001iDB7P,DD1B,DM0S,0T201506-201808

BLACK,TRIM70,80

main58510-WB002iDD1C,1D,DM0V,0W201508-201808

BLACK,TRIM70,80

main58510-WB013iDAEC1..C,D,F;DADW1,DAEA1,DAEB1,DDF4,5201808

BLACK,TRIM10,20,30,40

main58510-WB014iDAED1,DAEE1,DDF8,9201808

BLACK,TRIM10,20,30,40

58511ECLIP(FOR FRONT FLOOR MAT)

main90118-WB471×2iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W201508

BLACK,TRIM10,20,30,40,70,80

58521BHOOK, FLOOR CARPET

main90118-WB379×4iDB7P,DD1B,DM0S,0T201506-201808

main90118-WBC10×4iDADW1,DAEA1,DAEB1,DAEC1202012

58522DHOOK, FLOOR CARPET, NO.2

main58522-WB001×4iDB7P,DD1B,DM0S,0T201506-201808

58563QSILENCER, FRONT FLOOR, NO.3

main58563-WB001iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W201508

58565BCLIP

main90118-WB353×2iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F4,F5,DM0S,0T201506

BLACK,TRIM10,20,30,40,70,80

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-WB001iDB7P,DD1B,DM0S,0T201506-201808

58582FCLIP, NO.2(FOR REAR FLOOR CARPET)

main90118-WB371×2iDB7P,DD1B,DM0S,0T201506-201808

58595MOULDING, FLOOR CARPET, NO.3

main58595-WB001iDADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T201506

BLACK,TRIM10,20,30,40,70,80,RH:REFER ILLUST.

main58595-WB002iDADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T201506

BLACK,TRIM10,20,30,40,70,80,LH:REFER ILLUST.

58694APLATE, MAT SET, UPPER

main58694-WB002iDB7P,DD1B,DM0S,0T201506-201808

6403PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

→ Go to FIG 64-03

16 parts on this diagram · 3 diagrams in section
