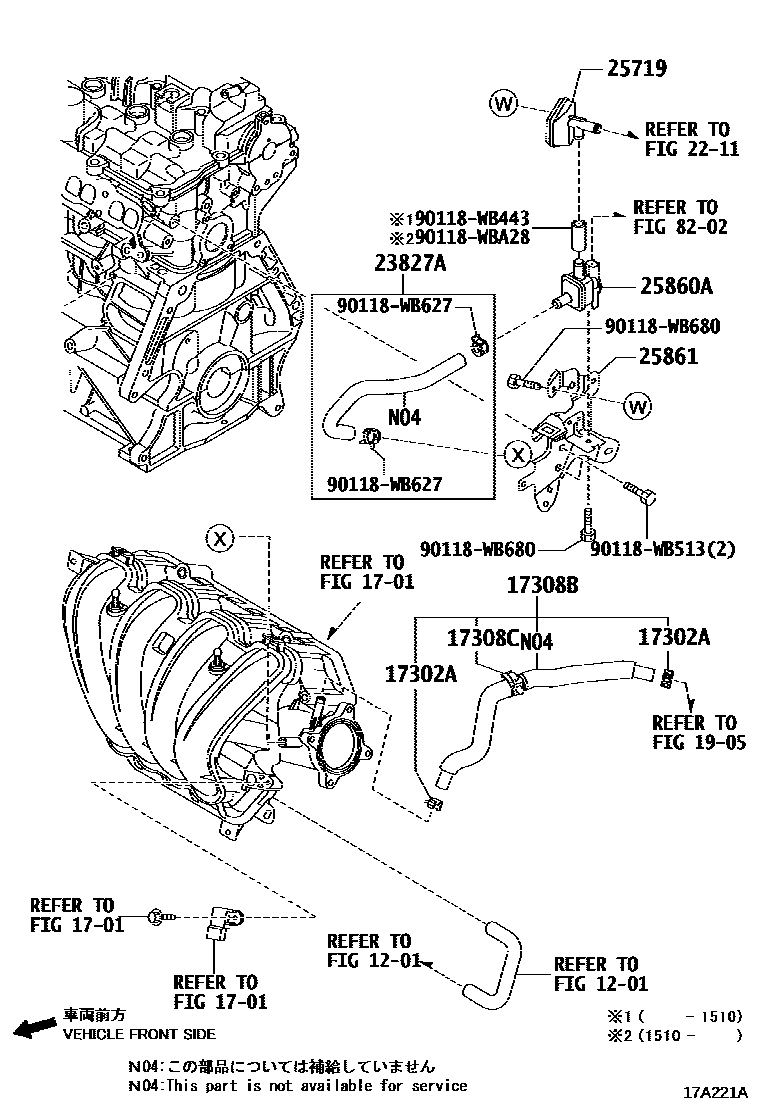

VACUUM PIPING

1201VENTILATION HOSE

→ Go to FIG 12-01

1701MANIFOLD

→ Go to FIG 17-01

17302ACLIP, HOSE

main90118-WB475×2iP5..DD1C,1D,DM0V,0W201508-201808

17308BHOSE SUB-ASSY, VACUUM

main17308-WB001iP5..DB7P,DD1B201506-201511

main17308-WB002iP5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#201511

17308CCLAMP(FOR VACUUM HOSE)

main90118-WB056iP5..DD1C,1D,DM0V,0W201508-201808

1905VACUUM PUMP

→ Go to FIG 19-05

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-WB001iP5..DD1C,1D,DM0V,0W201508-201808

25719TANK, VACUUM SURGE

main25719-WB001iP5..DD1C,1D,DM0V,0W201508-201808

25860AVALVE, VACUUM SWITCHING, NO.1

main25860-WB001iP5..DD1C,1D,DM0V,0W201508-201808

25861BRACKET, VACUUM SWITCHING VALVE

main25861-WB001iP5..DD1C,1D,DM0V,0W201508-201808

8202WIRING & CLAMP

→ Go to FIG 82-02

90118WB443

main90118-WB443

90118WB513

main90118-WB513

90118WB627

main90118-WB627

90118WB680

main90118-WB680

90118WBA28

main90118-WBA28

17 parts on this diagram · 1 diagram in section
