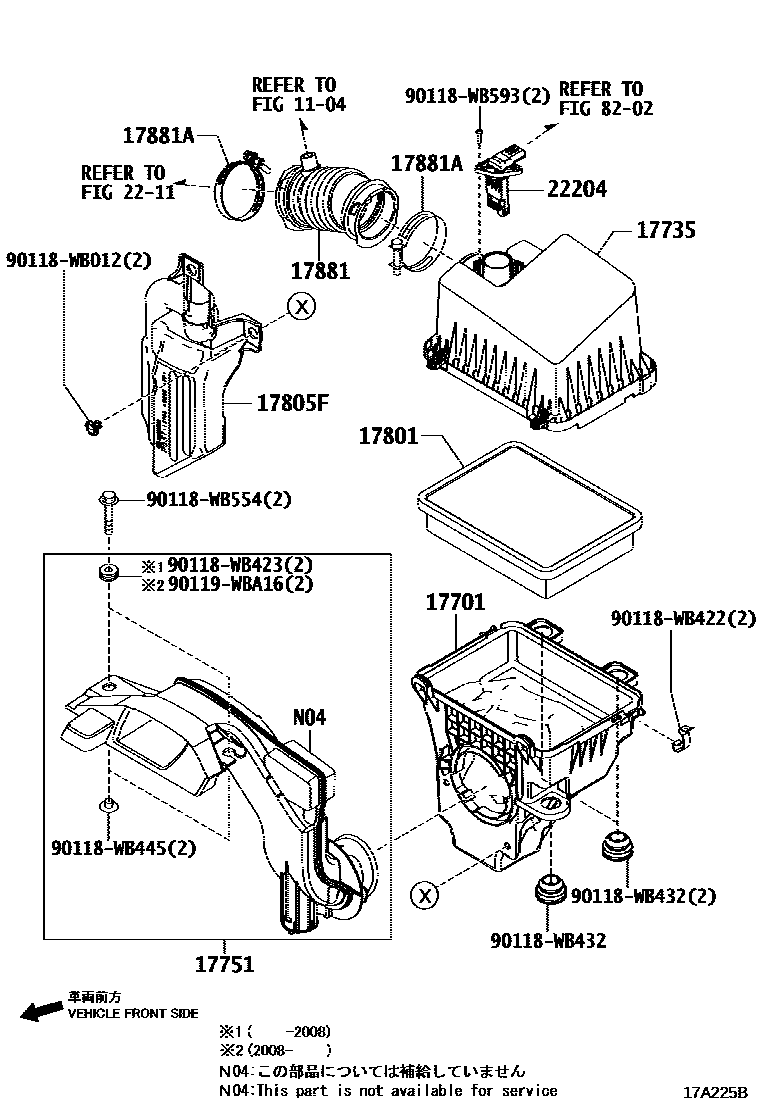

AIR CLEANER

1104CYLINDER HEAD

→ Go to FIG 11-04

17701CASE SUB-ASSY, AIR CLEANER

main17701-WB001iP5..DD1C,1D,DM0V,0W201508-201808

17735CAP, AIR CLEANER

main17735-WB001iP5..DD1C,1D,DM0V,0W201508-201808

17751INLET, AIR CLEANER, NO.1

main17751-WB001iP5..DD1C,1D,DM0V,0W201508-201808

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-WB001iP5..DD1C,1D,DM0V,0W201508-201808

17805FRESONATOR SUB-ASSY, INTAKE AIR

main17805-WB001iP5..DD1C,1D,DM0V,0W201508-201808

17881HOSE, AIR CLEANER, NO.1

main17880-WB001iP5..DD1C,1D,DM0V,0W201508-201808

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90118-WB494×2iP5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T201506

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-WB001iP5..DB7P,DD1B,DM0S,0T201506-201808

main22204-WB002iP5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DDF#201808

8202WIRING & CLAMP

→ Go to FIG 82-02

90118WB012

main90118-WB012

90118WB422

main90118-WB422

90118WB423

main90118-WB423

90118WB432

main90118-WB432

90118WB445

main90118-WB445

90118WB554

main90118-WB554

90118WB593

main90118-WB593

90119WBA16

main90119-WBA16

19 parts on this diagram · 1 diagram in section
