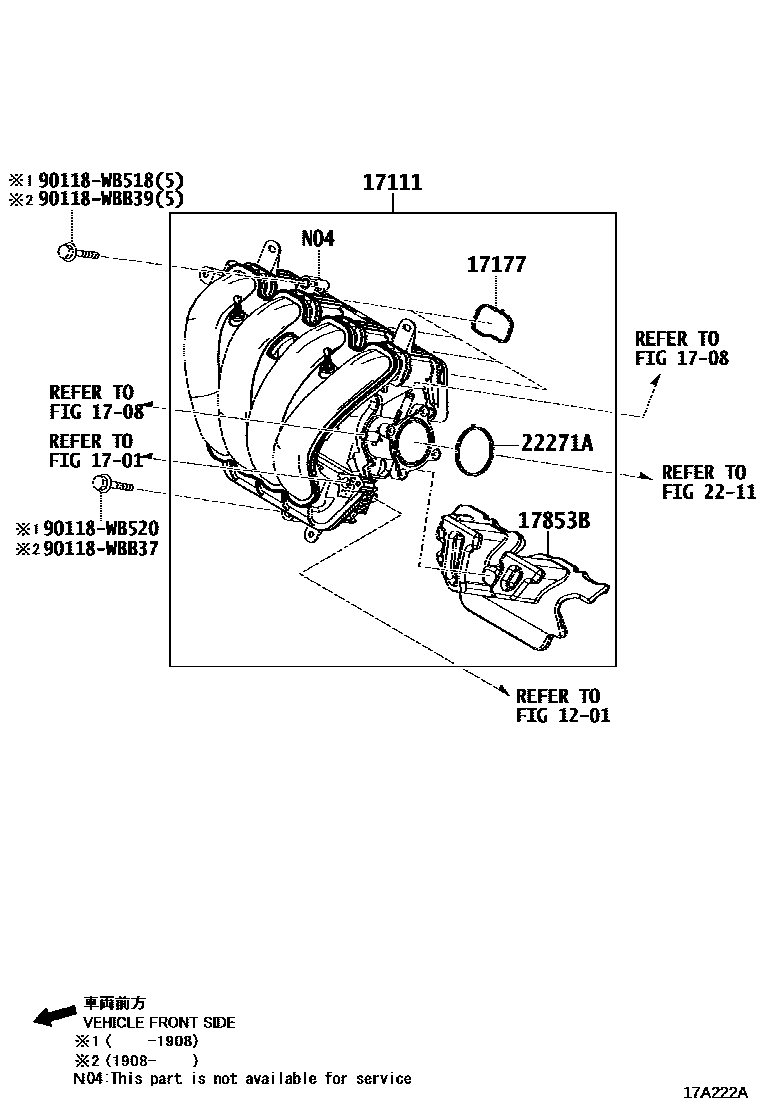

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1

1201VENTILATION HOSE

→ Go to FIG 12-01

1701MANIFOLD

→ Go to FIG 17-01

1708VACUUM PIPING

→ Go to FIG 17-08

17111MANIFOLD, INTAKE

main17120-WB001iP5..DB7P,DD1B,DM0S,0T201506-201808

main17120-WB002iP5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1201911

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-WB001×4iP5..DD1C,1D,DM0V,0W201508-201808

17853BINSULATOR, INTAKE MANIFOLD

main17853-WB001iP5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#201506

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

22271AGASKET, THROTTLE BODY

main22271-WB001iP5..DD1C,1D,DM0V,0W201508-201808

90118WB518

main90118-WB518

90118WB520

main90118-WB520

90118WBB37

main90118-WBB37

90118WBB39

main90118-WBB39

12 parts on this diagram · 5 diagrams in section
