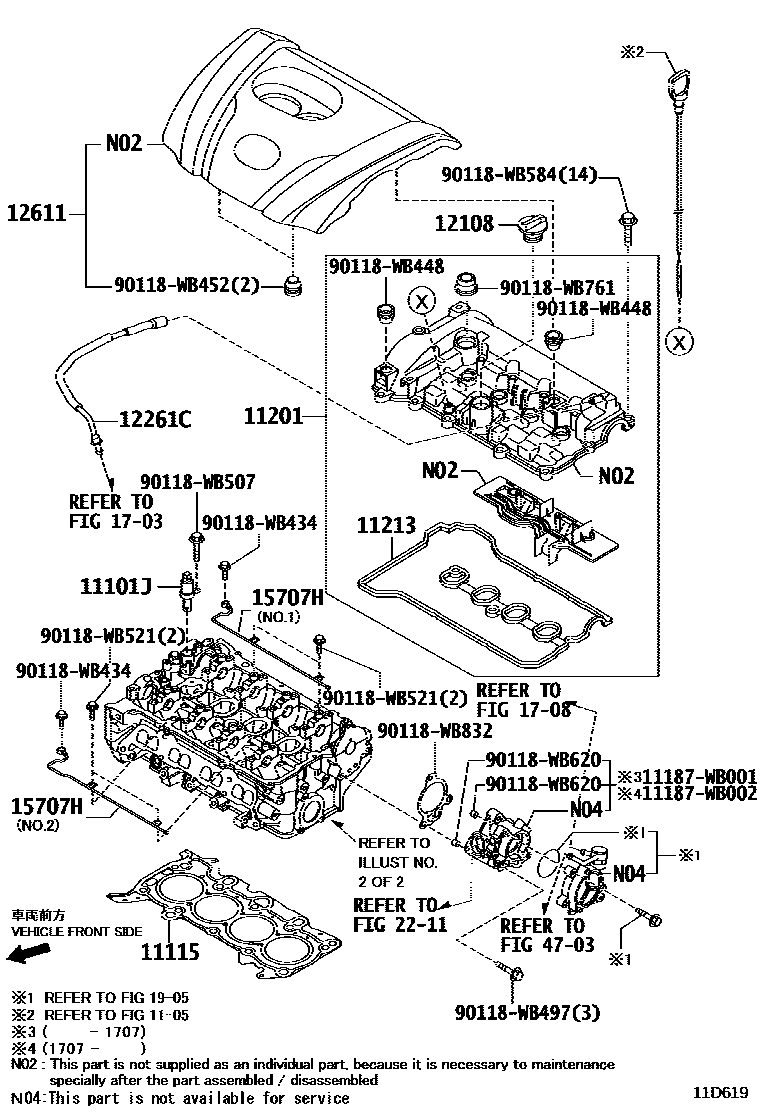

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1 0005 1

11101HEAD SUB-ASSY, CYLINDER

main11101-WB001iP5..DD1C,1D,DM0V,0W201508-201808

main11101-WB002iP5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1202005

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-WB001iP5..DB7P,DD1B201506-201602

main15330-WB002iP5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#201602

11115GASKET, CYLINDER HEAD

main11115-WB001iP5..DD1C,1D,DM0V,0W201508-201808

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-WB001iP5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T201506

WITHOUT(R-DOT LABEL)

main11201-WB002iP5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T201506

WITH(R-DOT LABEL)

11213GASKET, CYLINDER HEAD COVER

main11213-WB001iP5..DD1C,1D,DM0V,0W201508-201808

12108CAP SUB-ASSY, OIL FILLER

main12180-WB001iP5..DADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T201506

main12180-WB002iP5..DAED1,DAEE1,DD1C,1D,F8,F9,DM0V,0W201508

12261CHOSE, VENTILATION

main12229-WB001iP5..DD1C,1D,DM0V,0W201508-201808

12611COVER, ENGINE, NO.1

main11212-WB001iP5..DD1C,1D,DM0V,0W201508-201808

15707HPIPE SUB-ASSY, OIL

main15707-WB001iP5..DD1C,1D,DM0V,0W201508-201808

NO.1

main15707-WB002iP5..DADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1B,F#,DM0S,0T201506

NO.2

1703AIR CLEANER

→ Go to FIG 17-03

1708VACUUM PIPING

→ Go to FIG 17-08

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

11187WB001COVER, CAMSHAFT HOUSING, REAR

main11187-WB001

11187WB002COVER, CAMSHAFT HOUSING, REAR

main11187-WB002

90118WB434

main90118-WB434

90118WB448

main90118-WB448

90118WB452

main90118-WB452

90118WB497

main90118-WB497

90118WB507

main90118-WB507

90118WB521

main90118-WB521

90118WB584

main90118-WB584

90118WB620

main90118-WB620

90118WB761

main90118-WB761

90118WB832

main90118-WB832

25 parts on this diagram · 5 diagrams in section
