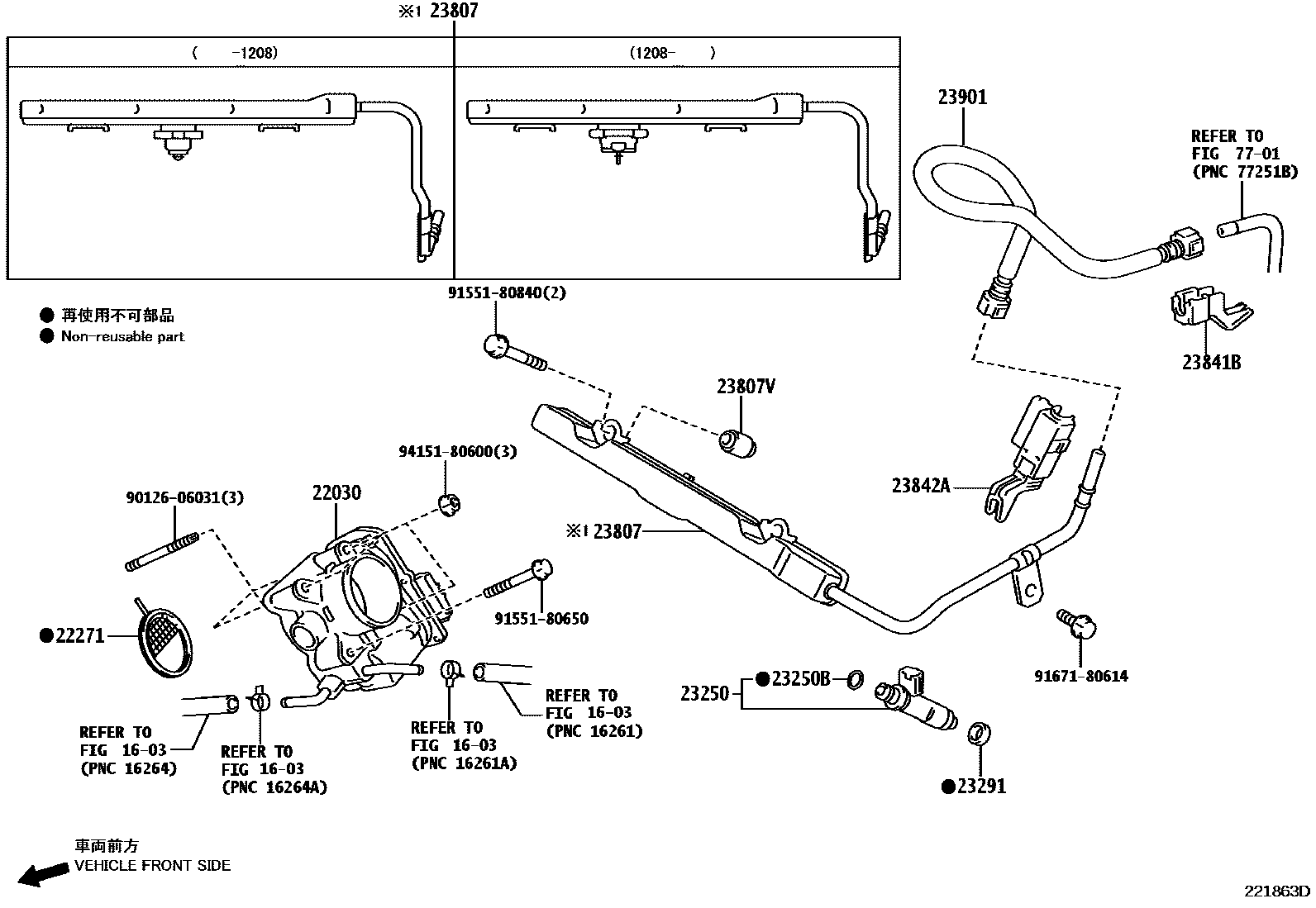

FUEL INJECTION SYSTEM

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-21030i1NZFE..NCP93200602-200808

22271GASKET, THROTTLE BODY

main22271-21060i1NZFE..NCP93200602-200808

23250INJECTOR ASSY, FUEL

main23209-21040×4i1NZFE..NCP93200602-200808

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×4i1NZFE..NCP93200602-200607

main90301-07037×4i1NZFE..NCP93200607-200808

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i1NZFE..NCP93201107

main23291-41010×4i1NZFE..NCP93200602-200808

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-21050i1NZFE..NCP93200602-200612

main23807-21051i1NZFE..NCP93200612-200808

main23807-21090i1NZFE..NCP93201208

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010×2i1NZFE..NCP93200602-200808

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1NZFE..NCP93200606-200808

main23841-28010i1NZFE..NCP93200602-200605

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-21040i1NZFE..NCP93200906-201210

main23841-37090i1NZFE..NCP93201211

main23842-21010i1NZFE..NCP93200602-200808

23901TUBE SUB-ASSY, FUEL

main23901-21120i1NZFE..NCP93200602-200808

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9012606031

main90126-06031

9155180650

main91551-80650

9155180840

main91551-80840

9167180614

main91671-80614

9415180600

main94151-80600

17 parts on this diagram · 1 diagram in section
