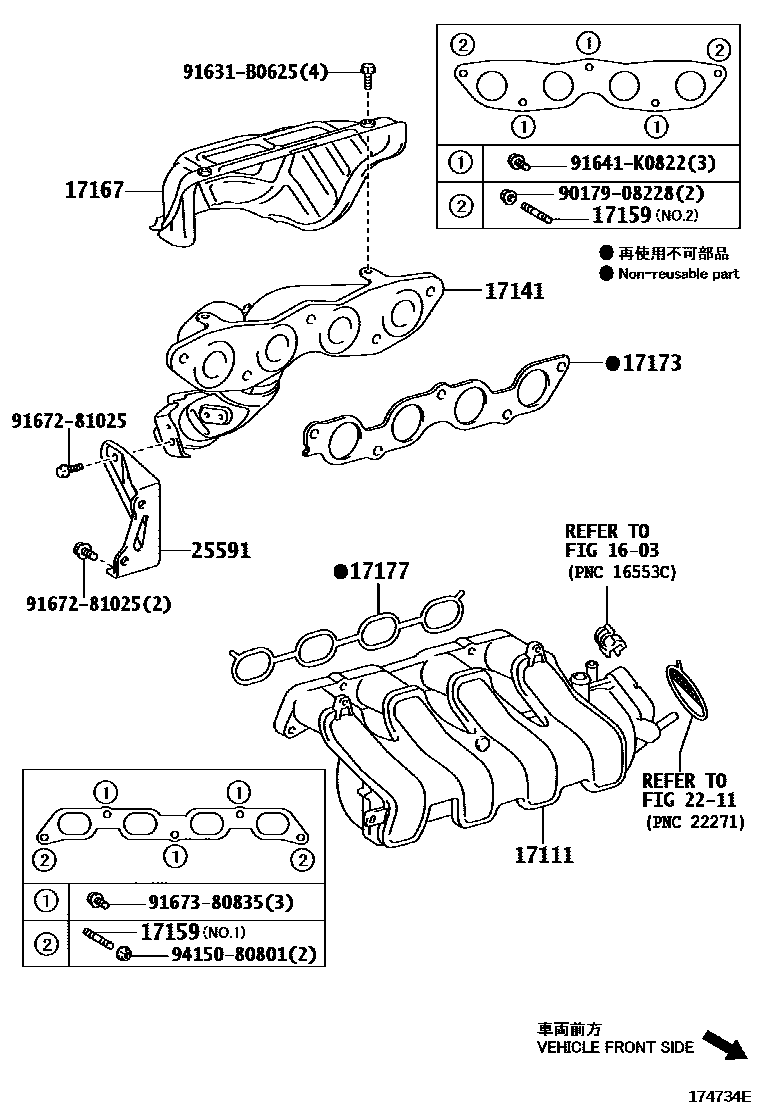

MANIFOLD

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

17111MANIFOLD, INTAKE

main17101-21080i1NZFE..NCP93200602-200808

17141MANIFOLD, EXHAUST

main17141-21130i1NZFE..NCP93200602-200808

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i1NZFE..NCP93200602-200808

NO.1

main90126-08037×2i1NZFE..NCP93200808

NO.2

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-21110i1NZFE..NCP93200602-200808

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-21020i1NZFE..NCP93200602-200808

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-21020i1NZFE..NCP93200602-200808

main17177-21030i1NZFE..NCP93201207

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

25591BRACKET, MANIFOLD SUPPORT

main25591-21060i1NZFE..NCP93200602-200808

9017908228

main90179-08228

91631B0625

main91631-B0625

91641K0822

main91641-K0822

9167281025

main91672-81025

9167380835

main91673-80835

9415080801

main94150-80801

15 parts on this diagram · 1 diagram in section
