AIR BAG

0001 1 0002 1

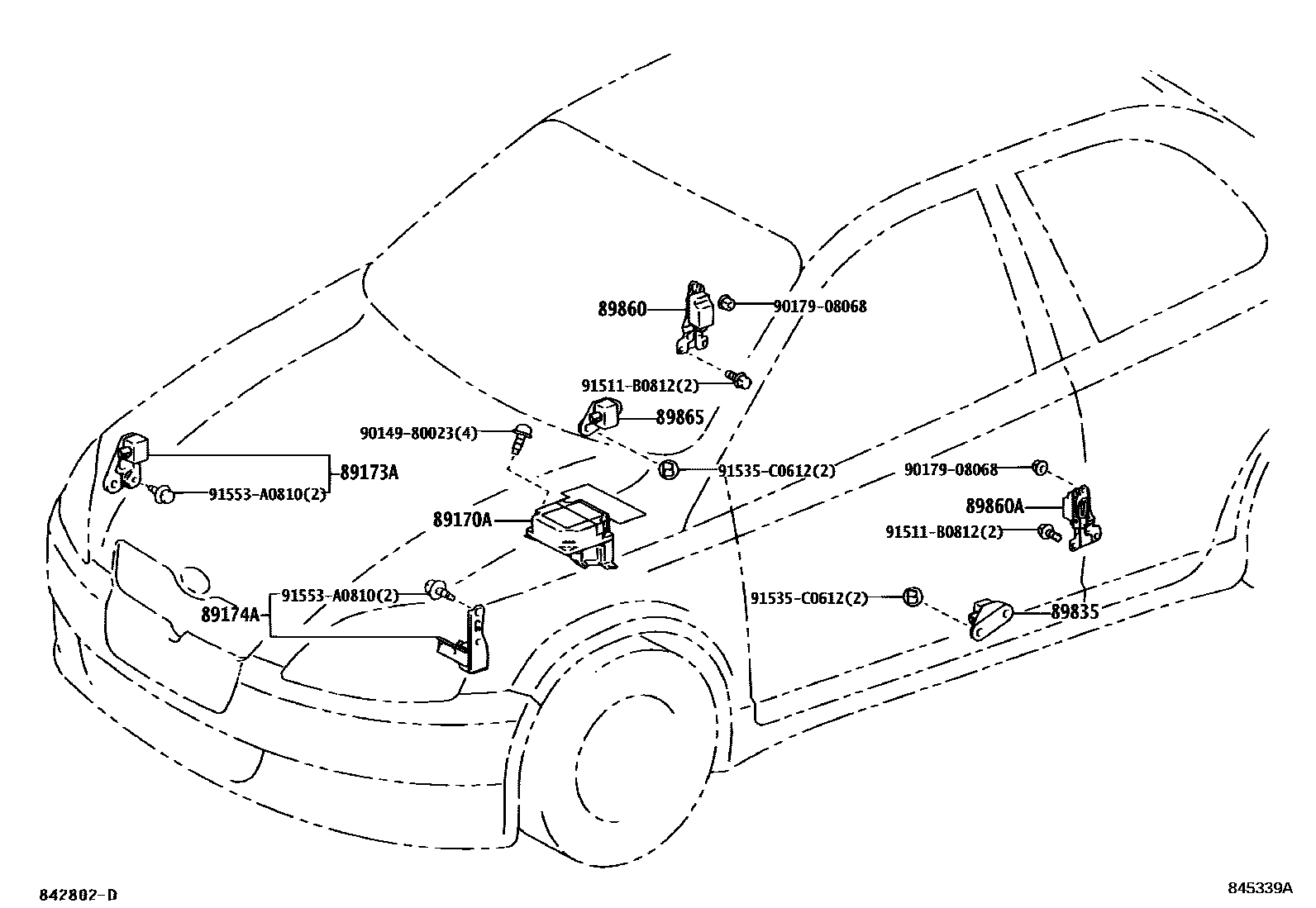

89170ACOMPUTER ASSY, AIRBAG

main89170-0W100iNCP12..2D..USA200008-200208

W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE)

main89170-0W110iNCP12..4D..USA200008-200208

W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE)

main89170-0W120iNCP12..2D..CND200008-200208

W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE)

main89170-0W130iNCP12..4D..CND200008-200208

W(*80,DRIVER SIDE & PASSENGER SIDE & SIDE)

main89170-0W140iNCP12..2D..USA200208-200602

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

main89170-0W150iNCP12..4D..USA200208-200602

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

main89170-0W160iNCP12..2D..CND200208-200602

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

main89170-0W170iNCP12..4D..CND200208-200602

*80,DRIVER SIDE & PASSENGER SIDE & SIDE

main89170-52050iNCP12..USA199908-200208

main89170-52110iNCP12..CND199908-200208

main89170-52300iNCP12..USA200208-200602

main89170-52310iNCP12..CND200208-200602

89173ASENSOR, AIRBAG, FRONT RH

main89173-59055iNCP12..CND199908-200101

main89173-59085iNCP12..USA199908-200101

main89173-59145iNCP12..USA200101-200208

main89173-59225iNCP12..CND200101-200208

89174ASENSOR, AIRBAG, FRONT LH

main89174-59015iNCP12..CND199908-200101

main89174-59045iNCP12..USA199908-200101

main89174-59085iNCP12..USA200208

main89174-59155iNCP12..CND200208

89835SENSOR, DOOR SIDE AIRBAG, LH

main89835-52010iNCP12..2D200008-200208

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-0W030iNCP12..2D200008-200208

main89860-0W040iNCP12..4D200008-200208

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-0W010iNCP12..2D200008-200208

main89830-0W020iNCP12..4D200008-200208

89865SENSOR, DOOR SIDE AIRBAG, RH

main89865-52010iNCP12..2D200008-200208

9014980023

main90149-80023

9017908068

main90179-08068

91511B0812

main91511-B0812

91535C0612

main91535-C0612

91553A0810

main91553-A0810

12 parts on this diagram · 2 diagrams in section
