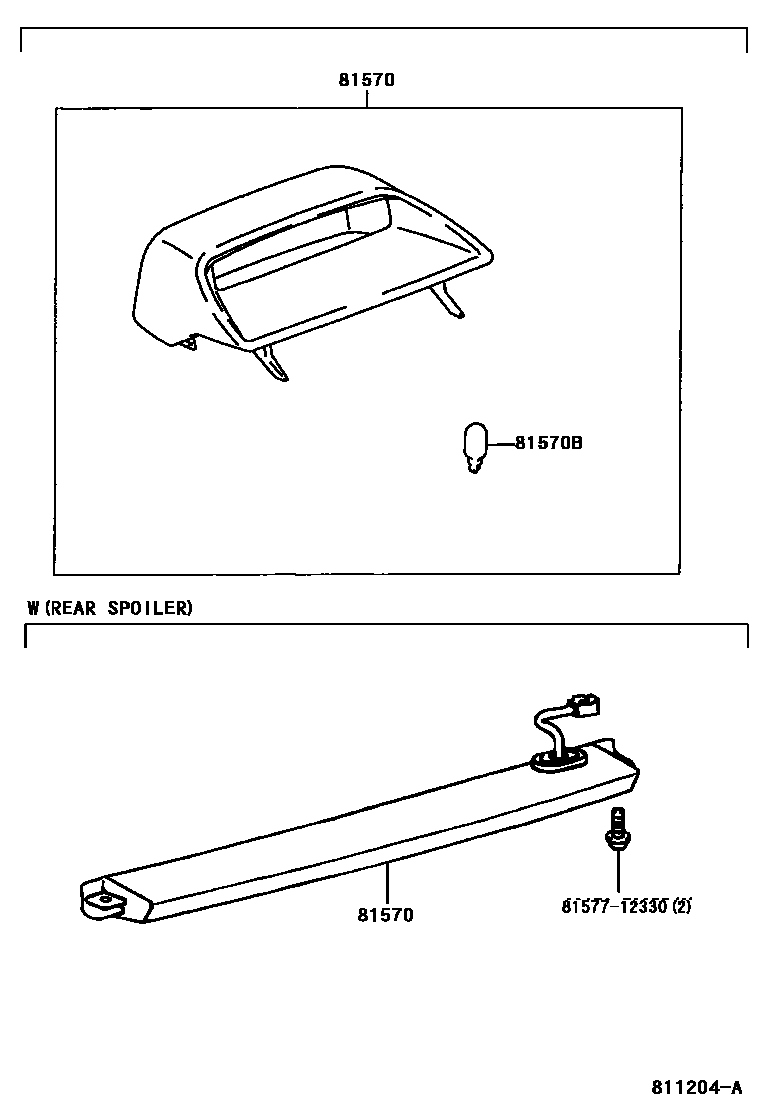

CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-52040-B0iNCP12200208-200212

SHADOW GRAY,TRIM1#

main81570-52040-B1iNCP12200212-200511

DK.GRAY,TRIM1#

main81570-52040-E0iNCP12200208-200511

FAWN,TRIM4#

main81570-52160iNCP12200208-200511

W(REAR SPOILER)

81570BBULB (FOR CENTER STOP LAMP)

main90981-11059iNCP12199908-200208

12V 16W

8157712330

main81577-12330

3 parts on this diagram · 1 diagram in section
