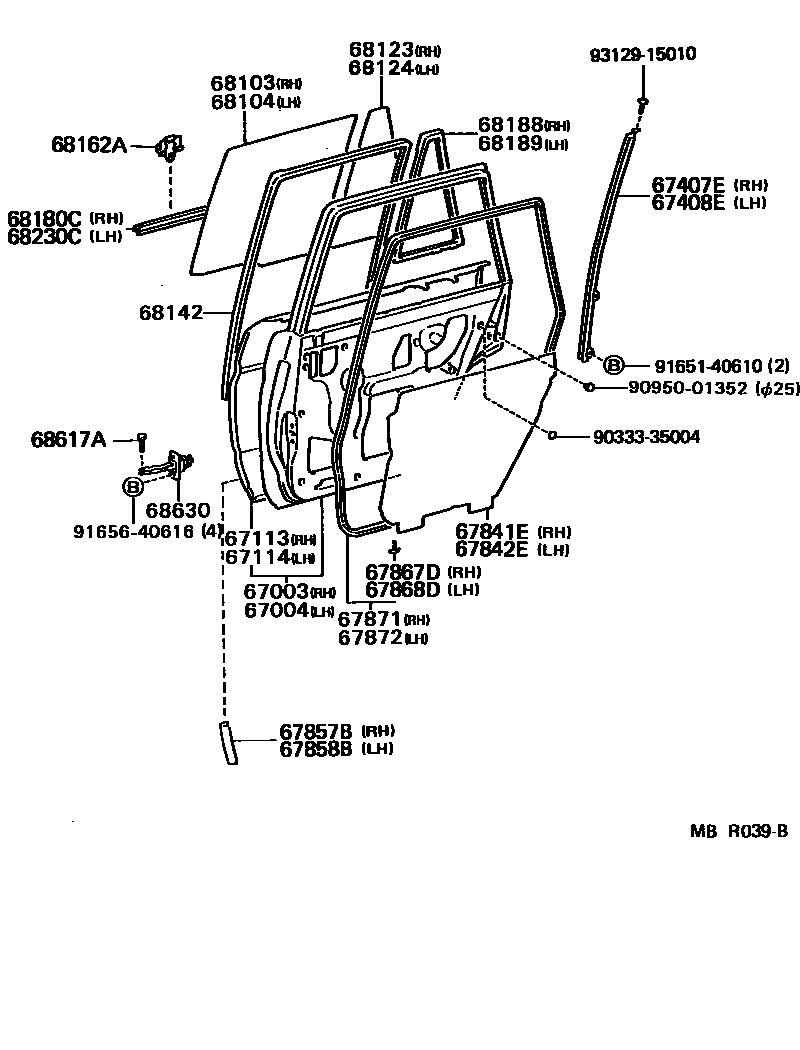

REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-16160iEL31..5DS198808-199009

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-16160iEL31..5DS198808-199009

67113PANEL, REAR DOOR, OUTER RH

main67113-16070iEL31..5DS198808-199009

67114PANEL, REAR DOOR, OUTER LH

main67114-16070iEL31..5DS198808-199009

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-16050iEL31..5DS198808-199009

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-16050iEL31..5DS198808-199009

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-16090iEL31..5DS198808-199009

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-16060iEL31..5DS198808-199009

67857BPROTECTOR, REAR DOOR PANEL, RH

main67855-16010iEL31..5DS198808-199009

67858BPROTECTOR, REAR DOOR PANEL, LH

main67856-16010iEL31..5DS198808-199009

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67868-30040×14iEL31..5DS198808-198903

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67868-30040×14iEL31..5DS198808-198903

67871WEATHERSTRIP, REAR DOOR, RH

main67871-16120iEL31..5DS198808-199009

67872WEATHERSTRIP, REAR DOOR, LH

main67872-16120iEL31..5DS198808-199009

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-16080iEL31..5DS..STD198808-199009

*TEM,T=3.5

main68113-16090iEL31..5DS..DX; EL31..5DS..STD..CND198808-199009

*TT,T=3.5

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-16080iEL31..5DS..STD198808-199009

*TEM,T=3.5

main68114-16090iEL31..5DS..DX; EL31..5DS..STD..CND198808-199009

*TT,T=3.5

68123GLASS, REAR DOOR WINDOW, RH

main68123-16080iEL31..5DS..STD198808-199009

*TEM,T=3.5

main68123-16090iEL31..5DS..DX; EL31..5DS..STD..CND198808-199009

*TT,T=3.5

68124GLASS, REAR DOOR WINDOW, LH

main68124-16080iEL31..5DS..STD198808-199009

*TEM,T=3.5

main68124-16090iEL31..5DS..DX; EL31..5DS..STD..CND198808-199009

*TT,T=3.5

68142RUN, REAR DOOR GLASS

main68142-16060×2iEL31..5DS198808-199009

68162ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)

main68211-16010×8iEL31..5DS198808-199009

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-16030iEL31..5DS198808-199009

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-16050iEL31..5DS198808-199009

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-16050iEL31..5DS198808-199009

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-16020iEL31..5DS198808-199009

68617APIN, REAR DOOR CHECK

main68617-90A00×2iEL31..5DS198808-199009

68630CHECK ASSY, REAR DOOR

main68630-16040×2iEL31..5DS198808-199009

9033335004

main90333-35004

9095001352

main90950-01352

9165140610

main91651-40610

9165640616

main91656-40616

9312915010

main93129-15010

31 parts on this diagram · 2 diagrams in section
