ENGINE OVERHAUL GASKET KIT

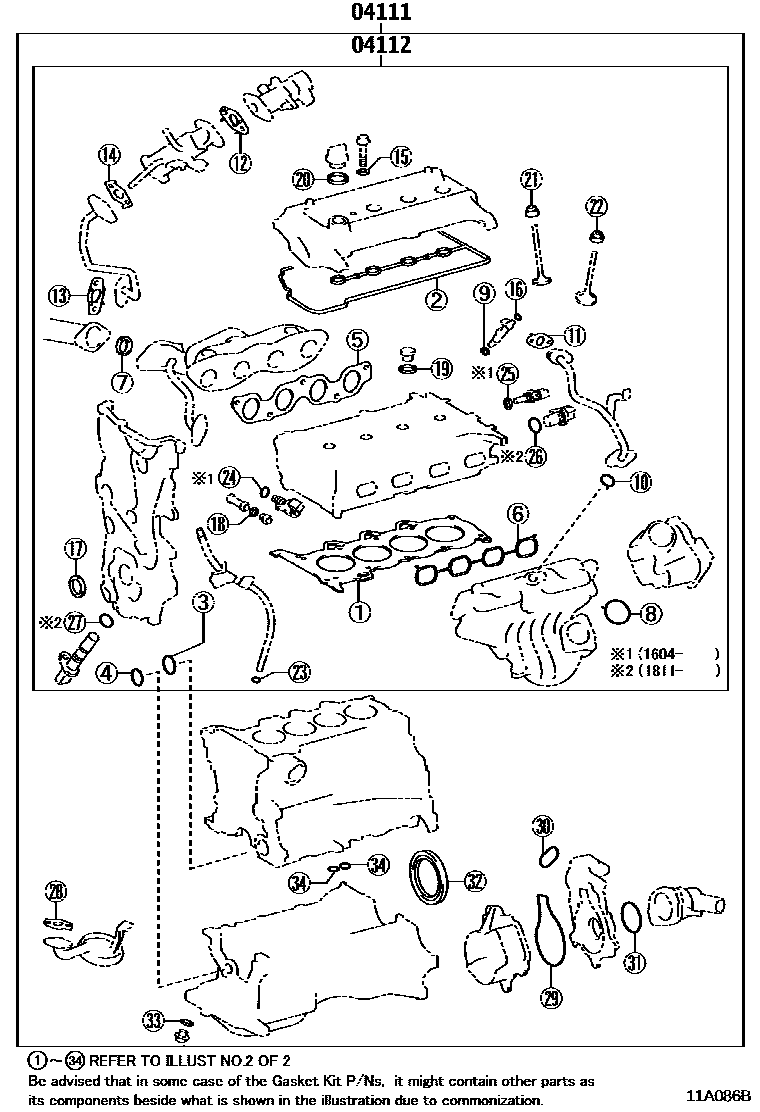

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-21320i201112-201201

main04111-21321i201201-201204

main04111-21322i201204-201311

main04111-21323i201311-201402

main04111-21324i201402-201412

main04111-21325i201604-201706

main04111-21326i201811

04112GASKET KIT, ENGINE VALVE GRIND

main04112-21320i201112-201204

main04112-21321i201204-201311

main04112-21322i201311-201402

main04112-21323i201402-201412

main04112-21324i201604-201706

main04112-21325i201811

2 parts on this diagram · 2 diagrams in section
