HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

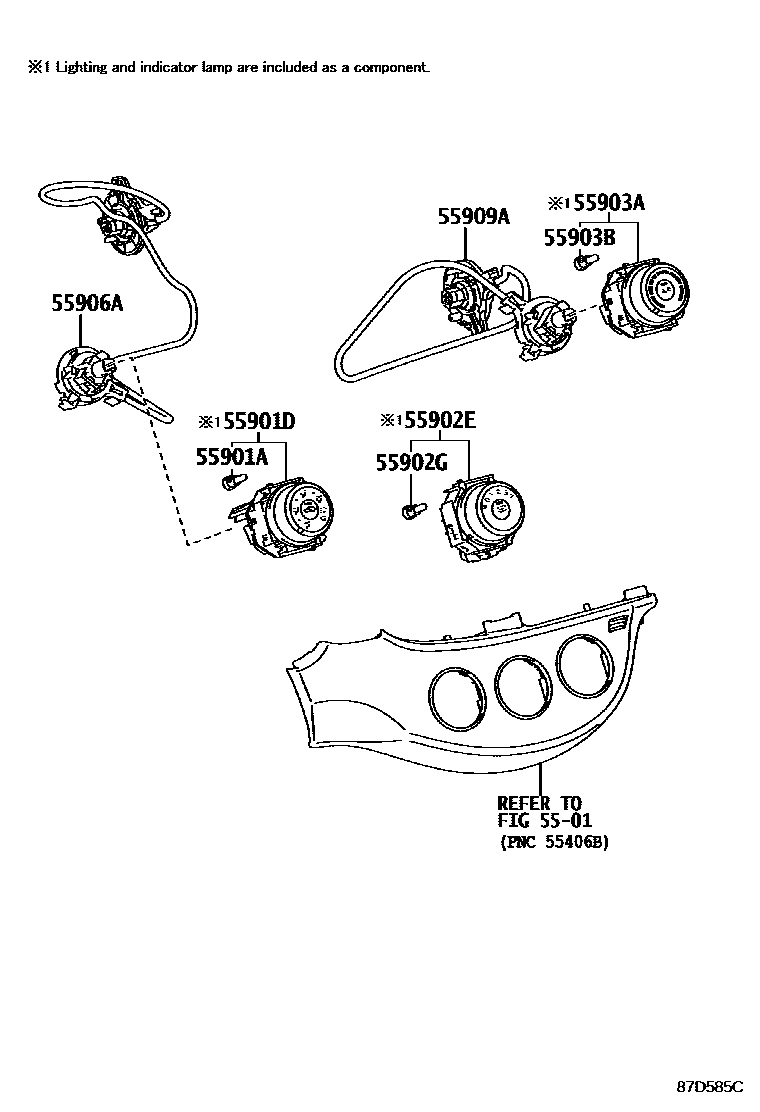

0001 1HEATER CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55901ABULB, HEATER CONTROL SUB-ASSY, NO.1

main90010-01145iNCP131..5D..CND;NCP131..3D..R..CND; NCP131..5D;NCP131..3D..R201703-201907

FRONT AIR CONDITIONER-DEALER OPTION

55901DCONTROL SUB-ASSY, HEATER, NO.1

main55901-0D210iNCP131201305-201407

main55901-0D330iNCP131; NCP131..CND201407-201703

FRONT AIR CONDITIONER-DEALER OPTION

55902ECONTROL SUB-ASSY, HEATER, NO.2

main55902-0D320iNCP131201305-201407

main55902-0D350iNCP131; NCP131..CND201703-201907

FRONT AIR CONDITIONER-DEALER OPTION

55902GBULB, HEATER CONTROL SUB-ASSY, NO.2

main90010-01145iNCP131; NCP131..CND201407-201703

FRONT AIR CONDITIONER-DEALER OPTION

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-0D310iNCP131..CND; NCP131..USA201305-201407

COLD AREA SPEC; FRONT AIR CONDITIONER-DEALER OPTION

main55903-0D320supersedes 55903-0D310iNCP131..CND201305-201407

FRONT AIR CONDITIONER-HEATER ONLY & WITH(PTC HEATER)

main55903-0D370iNCP131..CND; NCP131..USA201703-201907

COLD AREA SPEC; FRONT AIR CONDITIONER-DEALER OPTION

main55903-0D380supersedes 55903-0D370iNCP131..CND201703-201907

FRONT AIR CONDITIONER-HEATER ONLY(FRESH & RECIRC SWITCH TYPE)

55903BBULB, HEATER CONTROL SUB-ASSY, NO.3

main90010-01145iNCP131..5D..CND;NCP131..3D..R..CND; NCP131..5D;NCP131..3D..R201703-201907

FRONT AIR CONDITIONER-DEALER OPTION

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-52132iNCP131201407-201703

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-52120iNCP131..3D..S201703-201810

9 parts on this diagram · 3 diagrams in section
