OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

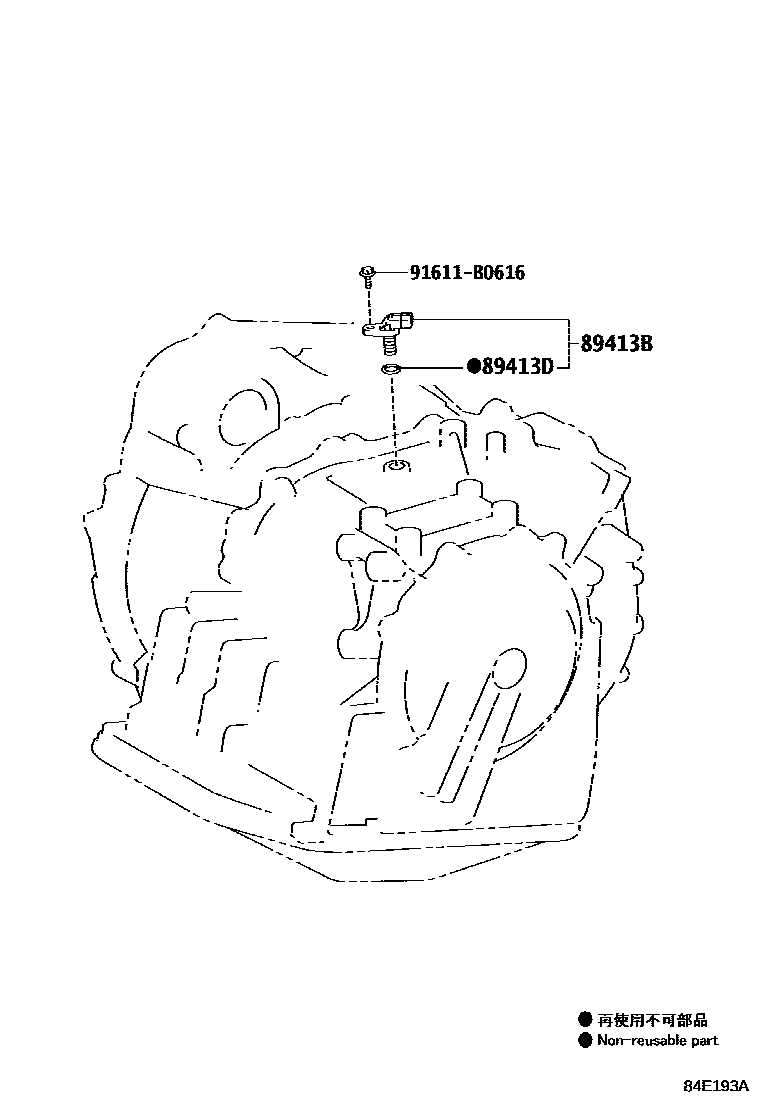

Parts diagram

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-32010i201407-201703

main89413-32011i201808-201811

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008i201407-201703

91611B0616

main91611-B0616

3 parts on this diagram · 1 diagram in section
