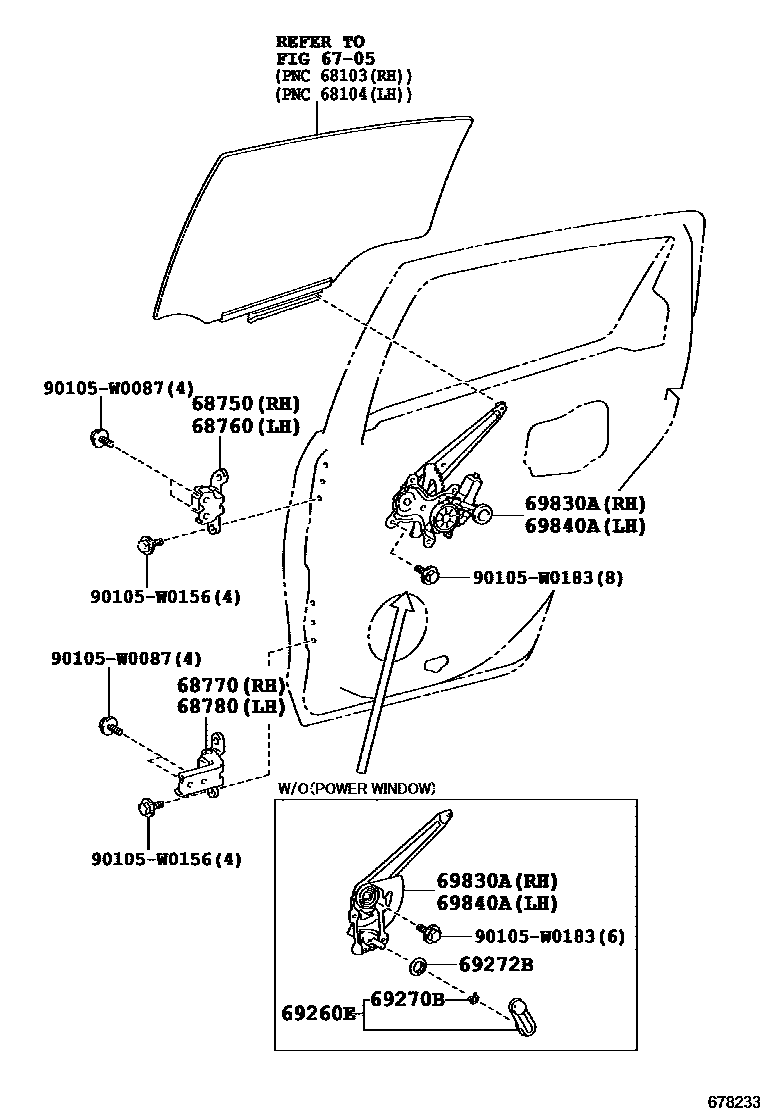

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-0D061i201305-201407

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-0D061i201703-201907

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-0D071i201407-201703

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-0D071i201305-201407

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-02020-C0×2i201305-201407

BLACK,TRIM1#; POWER WINDOW-WITH(FRONT & REAR),BLACK,TRIM1#

main69260-02020-C1×2i201407-201505

POWER WINDOW-WITH(FRONT ONLY),EU BLACK,TRIM0#,1#,2#; POWER WINDOW-WITH(FRONT ONLY),EU BLACK,TRIM1#,2#; POWER WINDOW-WITH(FRONT ONLY),EU BLACK,TRIM2#,3#

main69260-02021-C1×2i201506-201511

POWER WINDOW-WITH(FRONT ONLY),EU BLACK,TRIM0#,2#; POWER WINDOW-WITH(FRONT ONLY),EU BLACK,TRIM2#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90080-52100×2i201407-201511

POWER WINDOW-WITH(FRONT ONLY)

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-0D030×2i201407-201511

POWER WINDOW-WITH(FRONT ONLY)

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-0D220supersedes 69830-0D230i201305-201407

POWER WINDOW-WITH(FRONT & REAR)

main69830-0D230supersedes 69830-0D220i201407-201511

POWER WINDOW-WITH(FRONT ONLY)

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-0D220supersedes 69840-0D230i201305-201407

POWER WINDOW-WITH(FRONT & REAR)

main69840-0D230supersedes 69840-0D220i201407-201511

POWER WINDOW-WITH(FRONT ONLY)

90105W0087

main90105-W0087

90105W0156

main90105-W0156

90105W0183

main90105-W0183

13 parts on this diagram · 1 diagram in section
