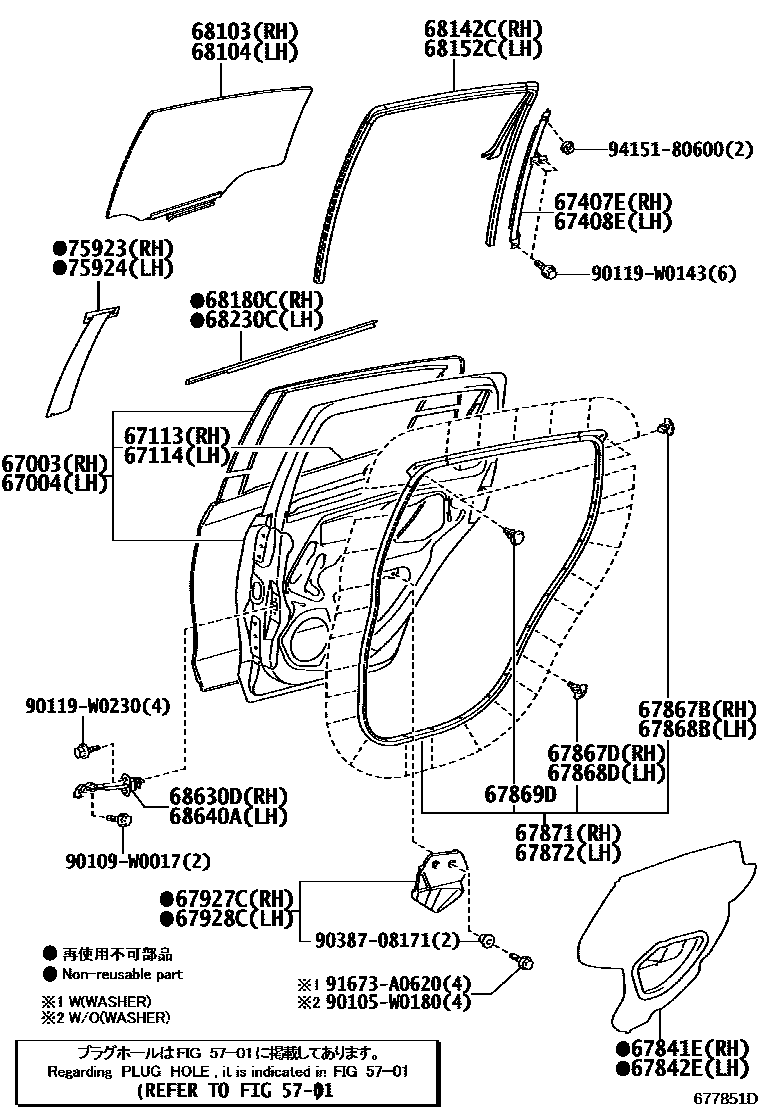

REAR DOOR PANEL & GLASS
5701HOLE PLUG
67003PANEL SUB-ASSY, REAR DOOR, RH
DOOR SIDE MOULDING-WITH(CHROME PLATED); DOOR SIDE MOULDING-WITH(PIANO BLACK PAINTED)
67004PANEL SUB-ASSY, REAR DOOR, LH
DOOR SIDE MOULDING-WITH(CHROME PLATED); DOOR SIDE MOULDING-WITH(PIANO BLACK PAINTED)
67113PANEL, REAR DOOR, OUTER RH
DOOR SIDE MOULDING-WITH(CHROME PLATED); DOOR SIDE MOULDING-WITH(PIANO BLACK PAINTED)
67114PANEL, REAR DOOR, OUTER LH
DOOR SIDE MOULDING-WITH(CHROME PLATED); DOOR SIDE MOULDING-WITH(PIANO BLACK PAINTED)
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67869DCLIP, DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67927CCUSHION, SEPARATOR DOOR STIFFENER, NO.1
67928CCUSHION, SEPARATOR DOOR STIFFENER, NO.2
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH
DOOR BELT MOULDING-PIANO BLACK; SE PACKAGE
DOOR BELT MOULDING-*CR
68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
DOOR BELT MOULDING-PIANO BLACK; SE PACKAGE
DOOR BELT MOULDING-*CR
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
75923TAPE, BLACK OUT, NO.2 RH
75924TAPE, BLACK OUT, NO.2 LH
90105W0180
main90105-W0180
90109W0017
main90109-W0017
90119W0143
main90119-W0143
90119W0230
main90119-W0230
9038708171
main90387-08171
91673A0620
main91673-A0620
9415180600
main94151-80600
35 parts on this diagram · 3 diagrams in section
