WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL 0004 1DOOR 0005 1FLOOR & ROOF 0006 1SEAT 0007 1CLAMP & BRACKET 0008 1CONNECTOR 1/2 0009 1CONNECTOR 2/2

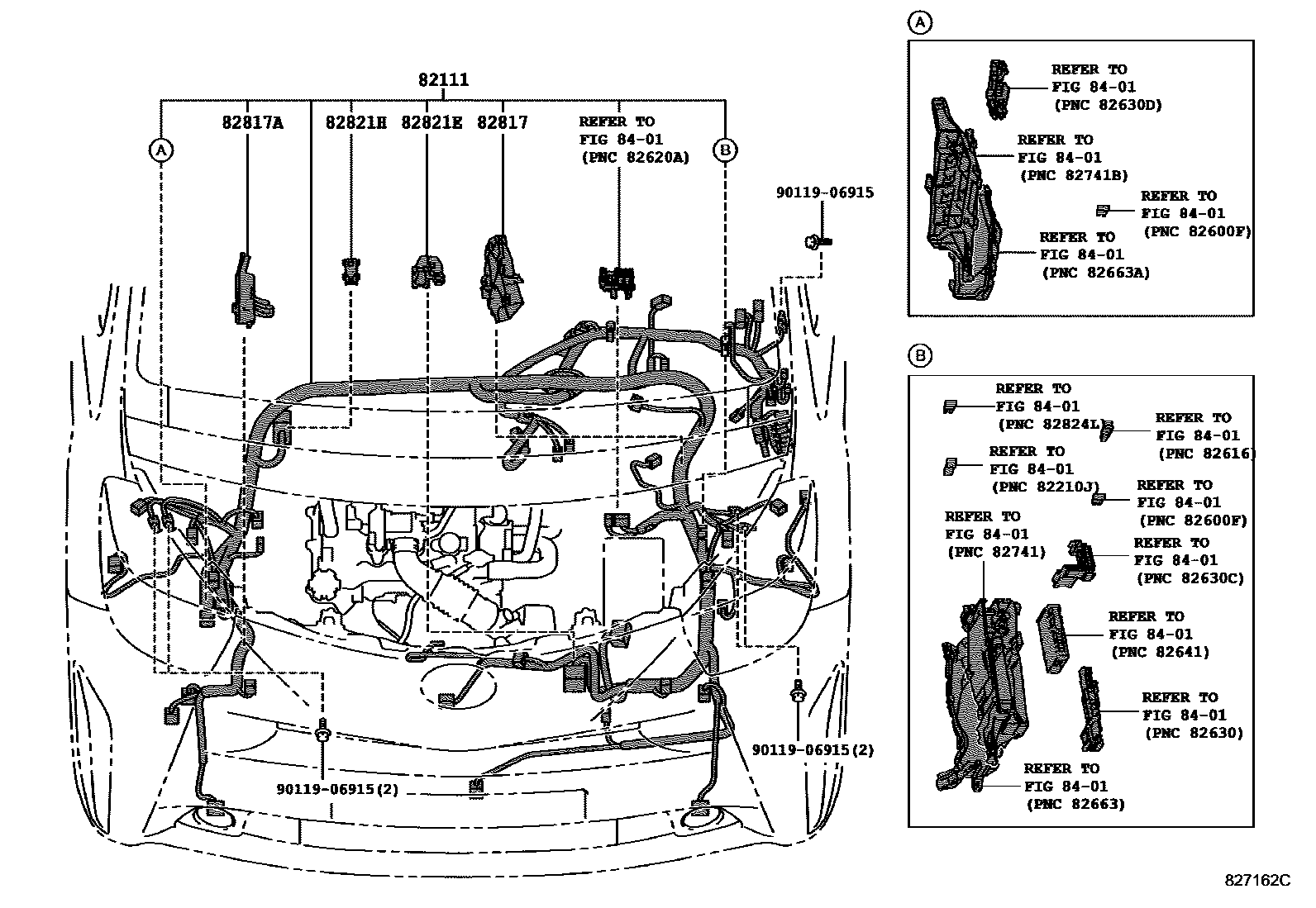

82111WIRE, ENGINE ROOM MAIN

main82111-74550supersedes 82111-74520iNGJ10201107-201506

CANADA SPEC&COLD AREA SPEC(FOR NORTH AMERICA)

main82111-74670supersedes 82111-74520iNGJ10201305-201307

PUERTO RICO SPEC&SPECIAL EDITION

main82111-74680supersedes 82111-74520iNGJ10201305-201307

CANADA SPEC&SPECIAL EDITION

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-74130iNGJ10201107-201506

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-74110iNGJ10201107-201506

82821ECOVER, CONNECTOR

main82821-33240iNGJ10201107-201506

82821HCOVER, CONNECTOR

main82821-12570iNGJ10201107-201506

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

7 parts on this diagram · 9 diagrams in section
