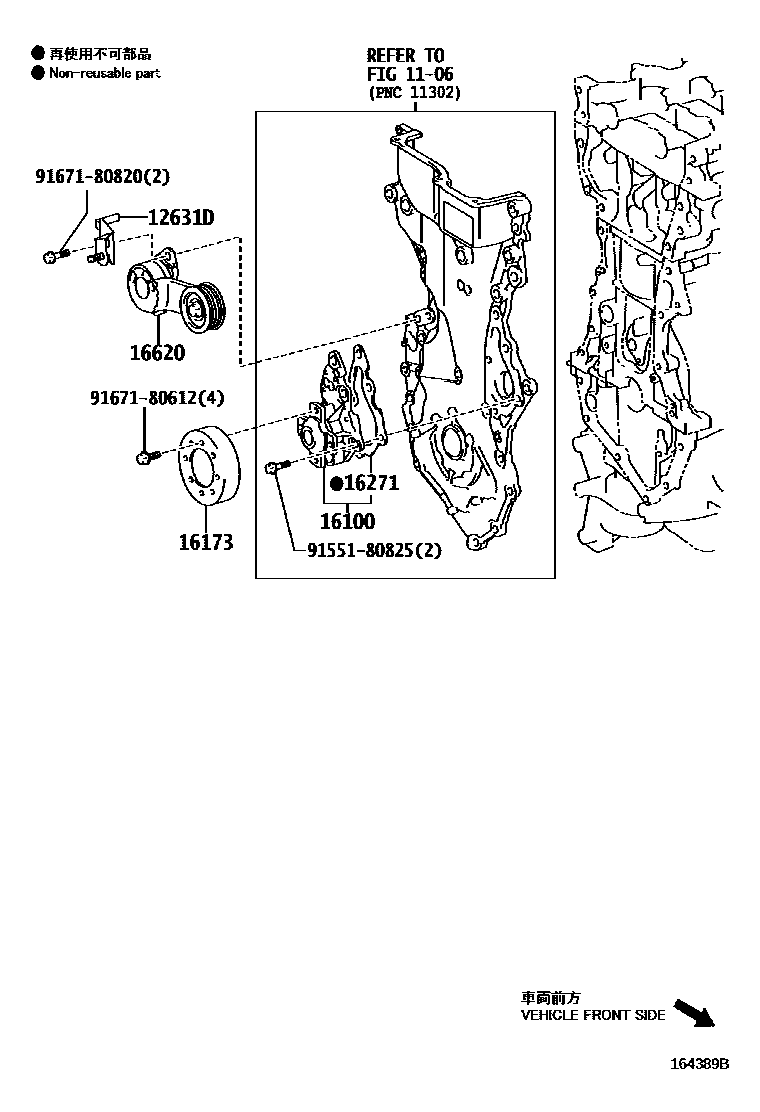

WATER PUMP

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

12631DBRACKET, ENGINE COVER

main12631-47010i1NRFE..NGJ10201107-201506

16100PUMP ASSY, ENGINE WATER

main16100-80008i1NRFE..NGJ10201107-201308

main16100-80011i1NRFE..NGJ10201308-201506

16173PULLEY, WATER PUMP

main16173-47010i1NRFE..NGJ10201107-201506

16271GASKET, WATER PUMP

main16271-47040i1NRFE..NGJ10201107-201506

16620TENSIONER ASSY, V-RIBBED BELT

main16620-47020i1NRFE..NGJ10201107-201506

9155180825

main91551-80825

9167180612

main91671-80612

9167180820

main91671-80820

9 parts on this diagram · 1 diagram in section
