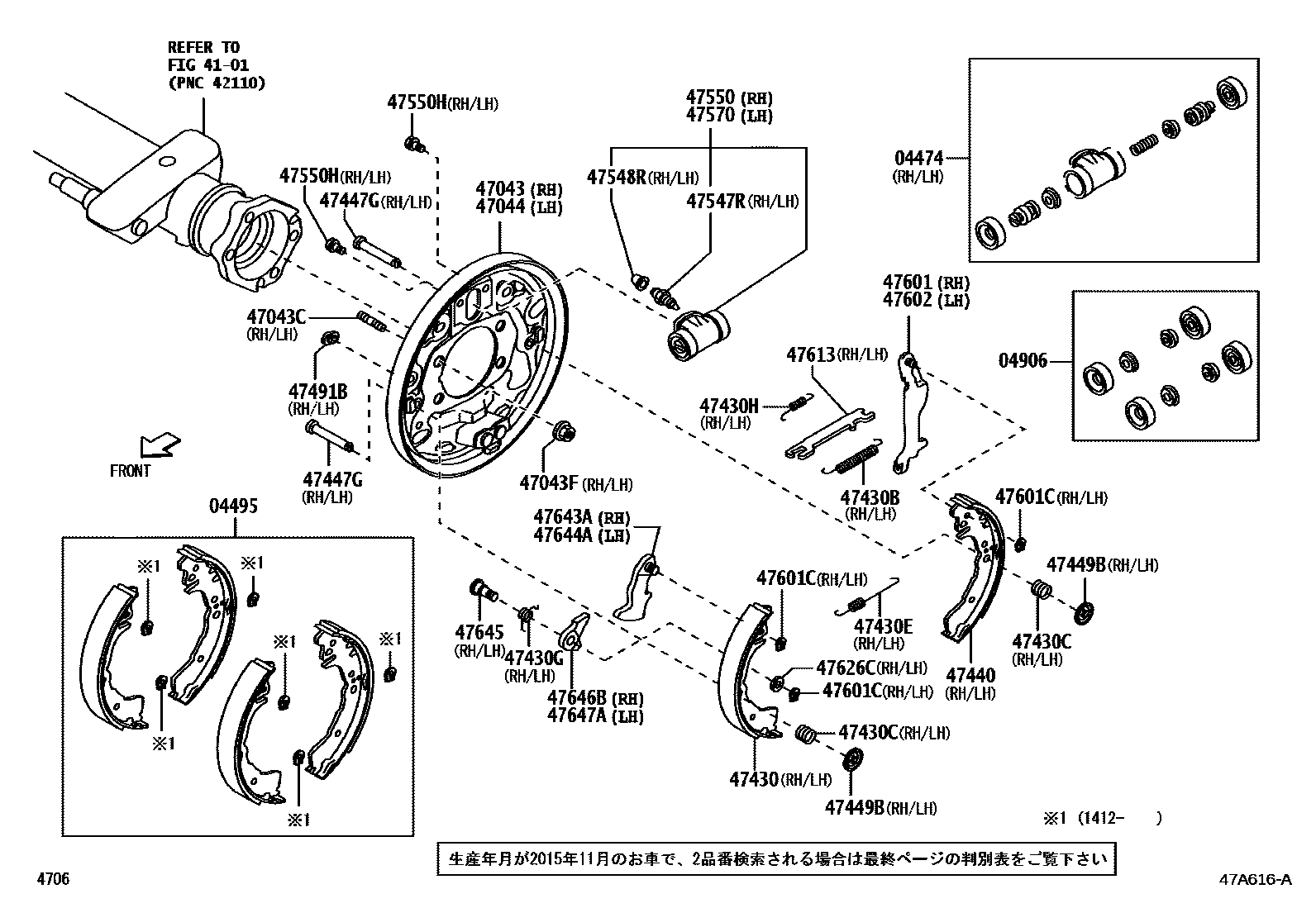

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1

04474CYLINDER KIT, REAR WHEEL

main04474-B5010iS500,510201409-202112

04495SHOE KIT, REAR BRAKE

main04495-B5020iS500,510201409-201412

main04495-B5021iS500,510201412-201511

main04495-B5070iS500,510201511-201610

04906CUP KIT, REAR WHEEL CYLINDER

main04906-B5010iS500,510201409-201610

4101REAR AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 41-01

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-97504iS500,510201409-201511

main47043-B2100iS500,510201511-201610

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-97501iS500,510201409-202007

main46791-B5150iS500,510202007

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90041-70336iS500,510201409-201610

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-97504iS500,510201409-201511

main47044-B2100iS500,510201511-201610

47430SHOE ASSY, REAR BRAKE(FOR FRONT OR UPPER SIDE)

main47430-B5040iS500,510201409-201511

47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90045-06197iS500,510201409-201511

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90045-01854iS500,510201409-201610

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main47459-B2020iS500,510201511-201610

main90045-06198iS500,510201409-201511

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90045-08361iS500,510201409-201511

main90045-08362iS500,510201409-201511

47430HSPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)

main90045-06196iS500,510201409-201511

main90045-06199iS500,510201409-201511

47440SHOE ASSY, REAR BRAKE(FOR REAR OR LOWER SIDE)

main47430-B5040iS500,510201409-201511

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-87501iS500,510201409-201610

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-97201iS500,510201409-201610

47491BPLUG, HOLE(FOR REAR BRAKE)

main47491-B1010iS500,510201409-201610

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-87203iS500,510201409-202112

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main47548-87501iS500,510201409-202112

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-B5020iS500,510201409-201806

main47560-B5020iS500,510201806

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90041-19848iS500,510201409-201610

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47560-B5020iS500,510201409-201610

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-97501iS500,510201409-201511

47601CWASHER, C(FOR REAR BRAKE)

main90042-13007iS500,510201409-201511

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-97501iS500,510201409-201511

47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

main47613-87501iS500,510201409-201511

47626CWASHER, WAVE

main90042-06041iS500,510201409-201511

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47608-87501iS500,510201409-201511

main47643-B2020iS500,510201511-201610

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47609-87501iS500,510201409-201511

main47644-B2020iS500,510201511-201610

47645PIN, AUTOMATIC ADJUST LEVER(FOR REAR BRAKE)

main47645-87201iS500,510201409-201511

47646BLATCH, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47646-97201iS500,510201409-201511

47647ALATCH, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47647-97201iS500,510201409-201511

33 parts on this diagram · 3 diagrams in section
