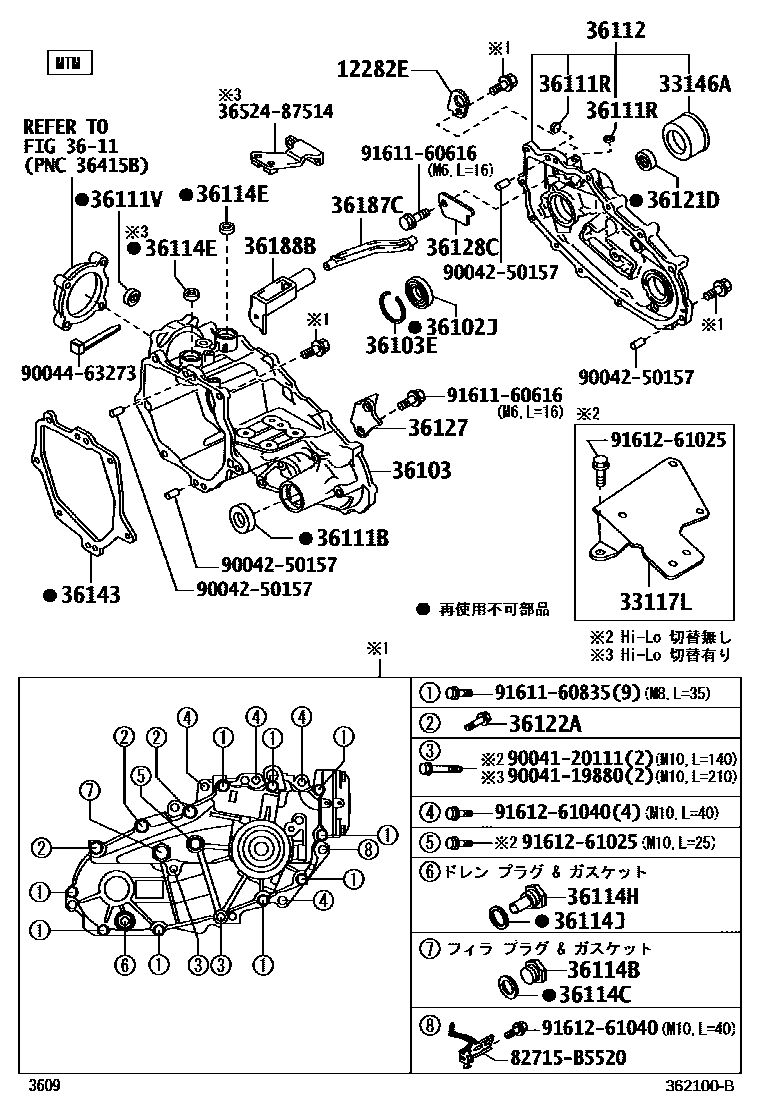

TRANSFER CASE & EXTENSION HOUSING

0001 1MTM 0002 1ATM 0003 1ATM

12282EHANGER, TRANSFER CASE

main12282-87501iKFVE..S510..5MT201610

main12282-B5010iKFVE..S510..4AT201503-201610

33117LBRACKET, STIFFENER PLATE

main12321-B5010iS510..SPL..5MT201409-201610

33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST

main33146-87504iS510201409-201502

main33146-B5010iS510201503-201610

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main88364-87501iS510201409-201610

36103CASE SUB-ASSY, TRANSFER

main36103-B5020supersedes 36103-B5010iS510..EXT..5MT; S510..SPL..5MT201409-201610

main36103-B5030iS510..4AT201409-201610

36103ERING, HOLE SNAP (FOR TRANSFER CASE BEARING)

main90045-21156iS510201409-201610

3611TRANSFER LEVER & SHIFT ROD

→ Go to FIG 36-11

36111BSEAL, OIL (FOR TRANSFER CASE)

main90043-11320iS510201409-201610

36111RPLUG, TIGHT (FOR TRANSFER CASE)

main90043-31029×2iS510201409-201610

36111VSEAL, OIL(FOR TRANSFER CASE DRIVE SHAFT SIDE)

main90043-11362iS510201409-201610

36112CASE, TRANSFER, REAR

main36104-B5040iS510201409-201502

main36104-B5060iS510201503-201610

main36104-B5061iS510201711

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-16012iS510201409-201610

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90044-30178iS510201409-201610

36114ESEAL, OIL (FOR TRANSFER CASE LH)

main90043-13008iS510..4AT;S510..SPL..5MT; S510..EXT..5MT; S510..SPL..5MT201610

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90043-41068iS510201409-201610

36114JGASKET, NO.2 (FOR TRANSFER CASE)

main90044-30055iS510201610

36121DSEAL, OIL(FOR TRANSFER CASE COVER)

main90043-11309iS510201409-201610

36122ABOLT (FOR TRANSFER CASE)COVER NO.2

main90041-19907×3supersedes 91612-61065iS510..4AT;S510..EXT..5MT; S510..SPL..5MT201409-201610

36127PLATE, TRANSFER OIL

main36127-87506iS510201409-201610

36128CPLATE, TRANSFER OIL SUPPLY

main36128-87503iS510201610

36143GASKET, TRANSFER CASE, FRONT

main33142-B5010iS510..5MT201409-201610

36187CPIPE, TRANSFER OIL SUPPLY, RH

main36187-87502supersedes 36187-B5010iS510..4AT;S510..EXT..5MT; S510..SPL..5MT201409-201610

36188BPIPE, TRANSFER OIL SUPPLY, LH

main36188-87401iS510..4AT201409-201610

main36188-B5010iS510..5MT201610

3652487514BRACKET, TRANSFER CONTROL CABLE

main36524-87514

82715B5520BRACKET,WIRING HARNESS CLAMP

main82715-B5520

9004119880

main90041-19880

9004120111

main90041-20111

9004250157

main90042-50157

9004463273

main90044-63273

9161160616

main91611-60616

9161160835

main91611-60835

9161261025

main91612-61025

9161261040

main91612-61040

33 parts on this diagram · 3 diagrams in section
