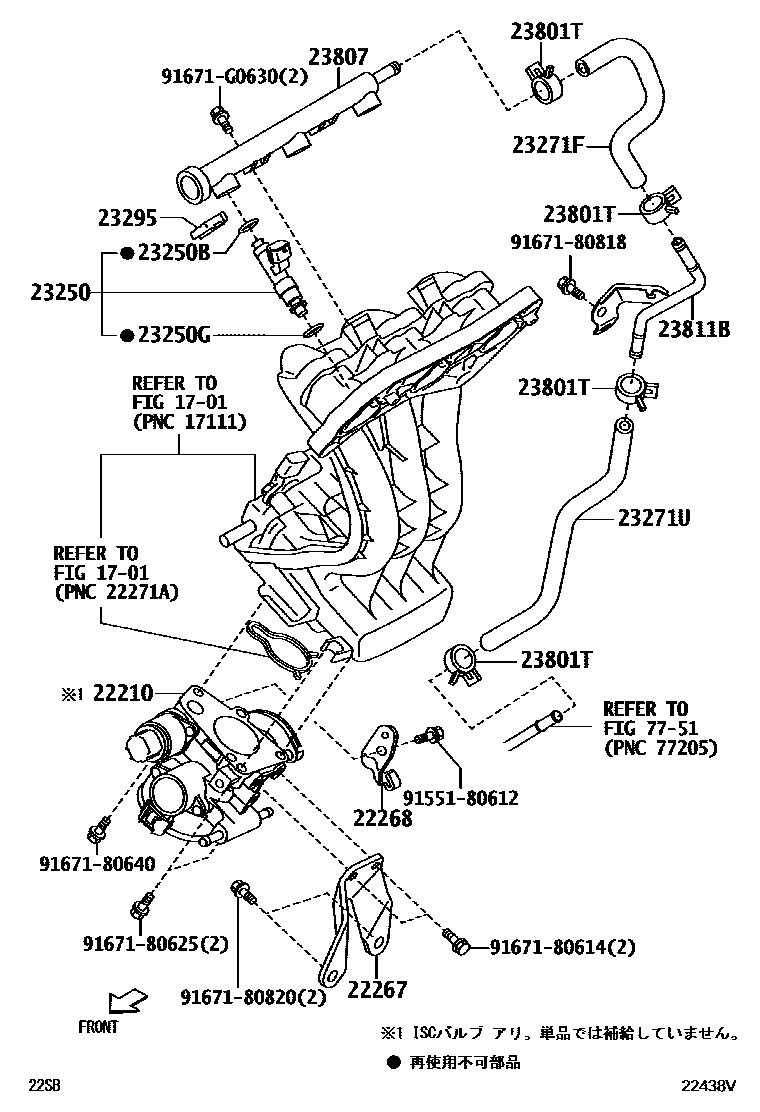

FUEL INJECTION SYSTEM

1701MANIFOLD

→ Go to FIG 17-01

22210BODY ASSY, THROTTLE

main22210-B2050iKFVE..S201,211201112-201407

22267BRACKET, THROTTLE BODY

main22267-B2020iKFVE..S201,211201112-201407

22268BRACKET, THROTTLE BODY, NO.2

main58179-B5030iKFVE..S201,211201112-201407

23250INJECTOR ASSY, FUEL

main23250-B2011×3iKFVE..S201,211201112-201407

23250BRING, O(FOR FUEL INJECTOR)

main90043-01353×3iKFVE..S201,211201112-201407

23250GRING, O, NO.2(FOR FUEL INJECTOR)

main23585-B2040×3iKFVE..S201,211201112-201407

23271FHOSE, FUEL

main23273-B2010iKFVE..S201,211201112-201407

23271UHOSE, FUEL, NO.1

main23271-B2160iKFVE..S201,211201112-201407

23295HOLDER, INJECTOR, NO.1

main23295-B2010×3iKFVE..S201,211201112-201407

23801TCLAMP OR CLIP, FUEL HOSE(FOR EFI)

main90044-67400×4iKFVE..S201,211201112-201407

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-B2040iKFVE..S201,211201112-201407

23811BPIPE, FUEL, NO.1

main23811-B2021iKFVE..S201,211201112-201407

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9155180612

main91551-80612

9167180614

main91671-80614

9167180625

main91671-80625

9167180640

main91671-80640

9167180818

main91671-80818

9167180820

main91671-80820

91671G0630

main91671-G0630

21 parts on this diagram · 1 diagram in section
